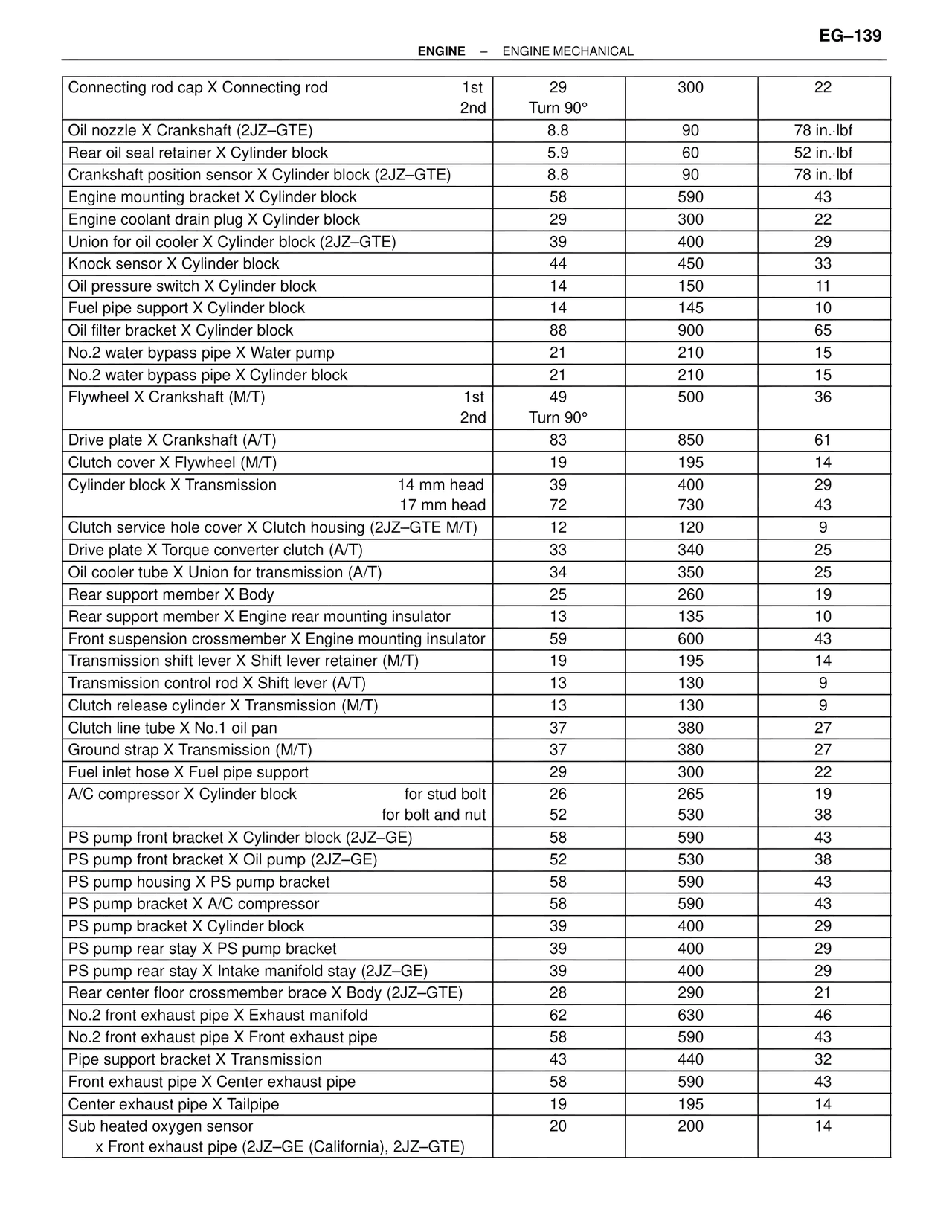

ENGINE – ENGINE MECHANICAL
EG–139
Connecting rod cap X Connecting rod 1st 29 300 22
2nd Turn 90°
Oil nozzle X Crankshaft (2JZ–GTE) 8.8 90 78 in.·lbf
Rear oil seal retainer X Cylinder block 5.9 60 52 in.·lbf
Crankshaft position sensor X Cylinder block (2JZ–GTE) 8.8 90 78 in.·lbf
Engine mounting bracket X Cylinder block 58 590 43
Engine coolant drain plug X Cylinder block 29 300 22
Union for oil cooler X Cylinder block (2JZ–GTE) 39 400 29
Knock sensor X Cylinder block 44 450 33
Oil pressure switch X Cylinder block 14 150 11
Fuel pipe support X Cylinder block 14 145 10
Oil filter bracket X Cylinder block 88 900 65
No.2 water bypass pipe X Water pump 21 210 15
No.2 water bypass pipe X Cylinder block 21 210 15
Flywheel X Crankshaft (M/T) 1st 49 500 36
2nd Turn 90°
Drive plate X Crankshaft (A/T) 83 850 61
Clutch cover X Flywheel (M/T) 19 195 14
Cylinder block X Transmission 14 mm head 39 400 29
17 mm head 72 730 43
Clutch service hole cover X Clutch housing (2JZ–GTE M/T) 12 120 9
Drive plate X Torque converter clutch (A/T) 33 340 25
Oil cooler tube X Union for transmission (A/T) 34 350 25
Rear support member X Body 25 260 19
Rear support member X Engine rear mounting insulator 13 135 10
Front suspension crossmember X Engine mounting insulator 59 600 43
Transmission shift lever X Shift lever retainer (M/T) 19 195 14
Transmission control rod X Shift lever (A/T) 13 130 9
Clutch release cylinder X Transmission (M/T) 13 130 9
Clutch line tube X No.1 oil pan 37 380 27
Ground strap X Transmission (M/T) 37 380 27
Fuel inlet hose X Fuel pipe support 29 300 22
A/C compressor X Cylinder block for stud bolt 26 265 19
for bolt and nut 52 530 38
PS pump front bracket X Cylinder block (2JZ–GE) 58 590 43
PS pump front bracket X Oil pump (2JZ–GE) 52 530 38
PS pump housing X PS pump bracket 58 590 43
PS pump bracket X A/C compressor 58 590 43
PS pump bracket X Cylinder block 39 400 29
PS pump rear stay X PS pump bracket 39 400 29
PS pump rear stay X Intake manifold stay (2JZ–GE) 39 400 29
Rear center floor crossmember brace X Body (2JZ–GTE) 28 290 21
No.2 front exhaust pipe X Exhaust manifold 62 630 46
No.2 front exhaust pipe X Front exhaust pipe 58 590 43
Pipe support bracket X Transmission 43 440 32
Front exhaust pipe X Center exhaust pipe 58 590 43
Center exhaust pipe X Tailpipe 19 195 14
Sub heated oxygen sensor 20 200 14
x Front exhaust pipe (2JZ–GE (California), 2JZ–GTE)
