EM-14

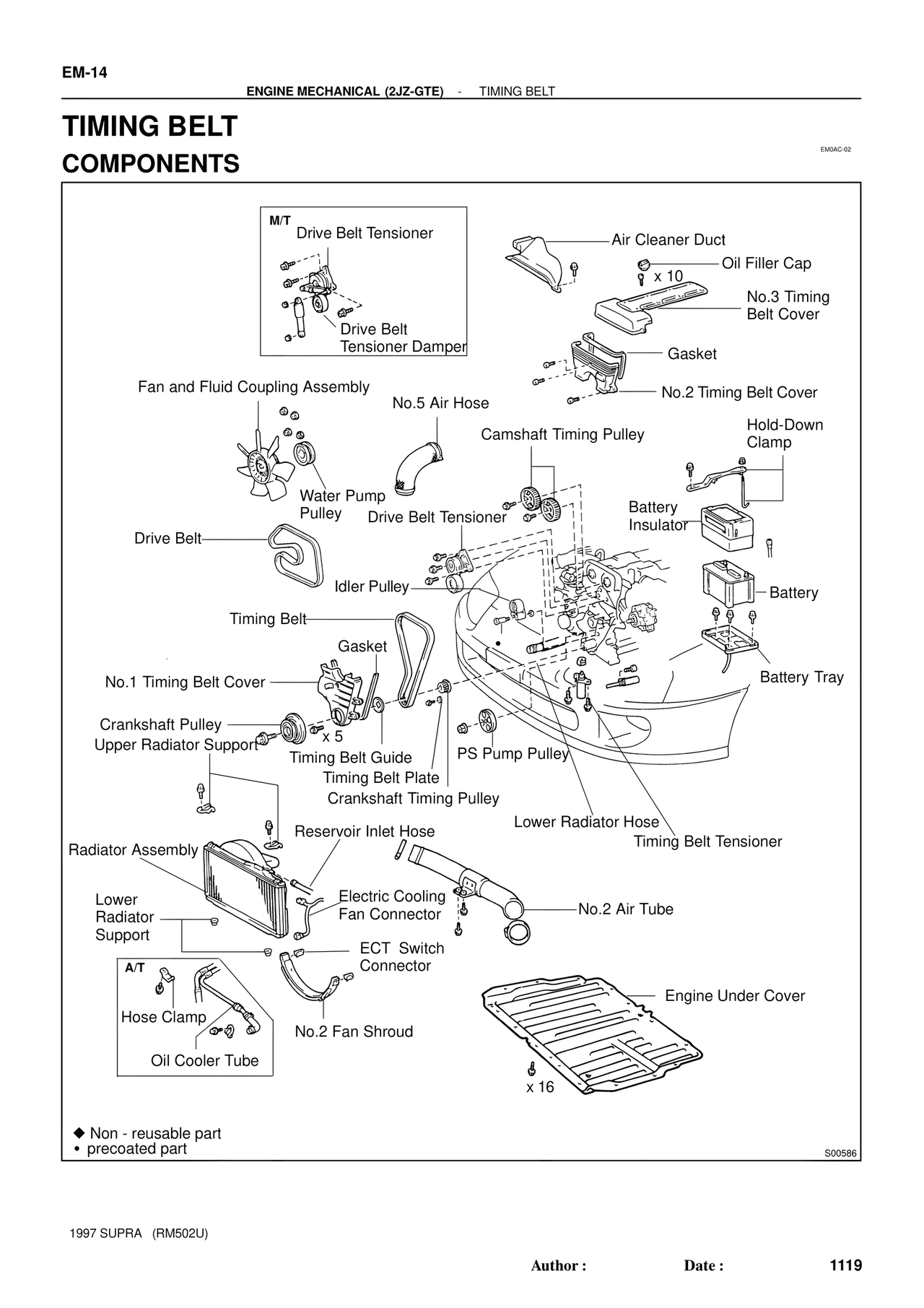

ENGINE MECHANICAL (2JZ-GTE) - TIMING BELT
TIMING BELT COMPONENTS
EM0AC-02
M/T
Drive Belt Tensioner
Drive Belt
Tensioner Damper
Air Cleaner Duct
Oil Filler Cap
x 10
No.3 Timing
Belt Cover
Gasket
No.2 Timing Belt Cover
Fan and Fluid Coupling Assembly
No.5 Air Hose
Camshaft Timing Pulley
Hold-Down
Clamp
Water Pump
Pulley
Drive Belt Tensioner
Battery
Insulator
Drive Belt
Idler Pulley
Battery
Timing Belt
Gasket
Battery Tray
No.1 Timing Belt Cover
Crankshaft Pulley
Upper Radiator Support
x 5
PS Pump Pulley
Timing Belt Guide
Timing Belt Plate
Crankshaft Timing Pulley
Reservoir Inlet Hose
Lower Radiator Hose
Timing Belt Tensioner
Radiator Assembly
Electric Cooling
Fan Connector
No.2 Air Tube
Lower
Radiator
Support
ECT Switch
Connector
A/T
Hose Clamp
No.2 Fan Shroud
Engine Under Cover
Oil Cooler Tube
x 16
♦ Non - reusable part
• precoated part
S00586
1997 SUPRA (RM502U)
