EG–22
ENGINE – ENGINE MECHANICAL

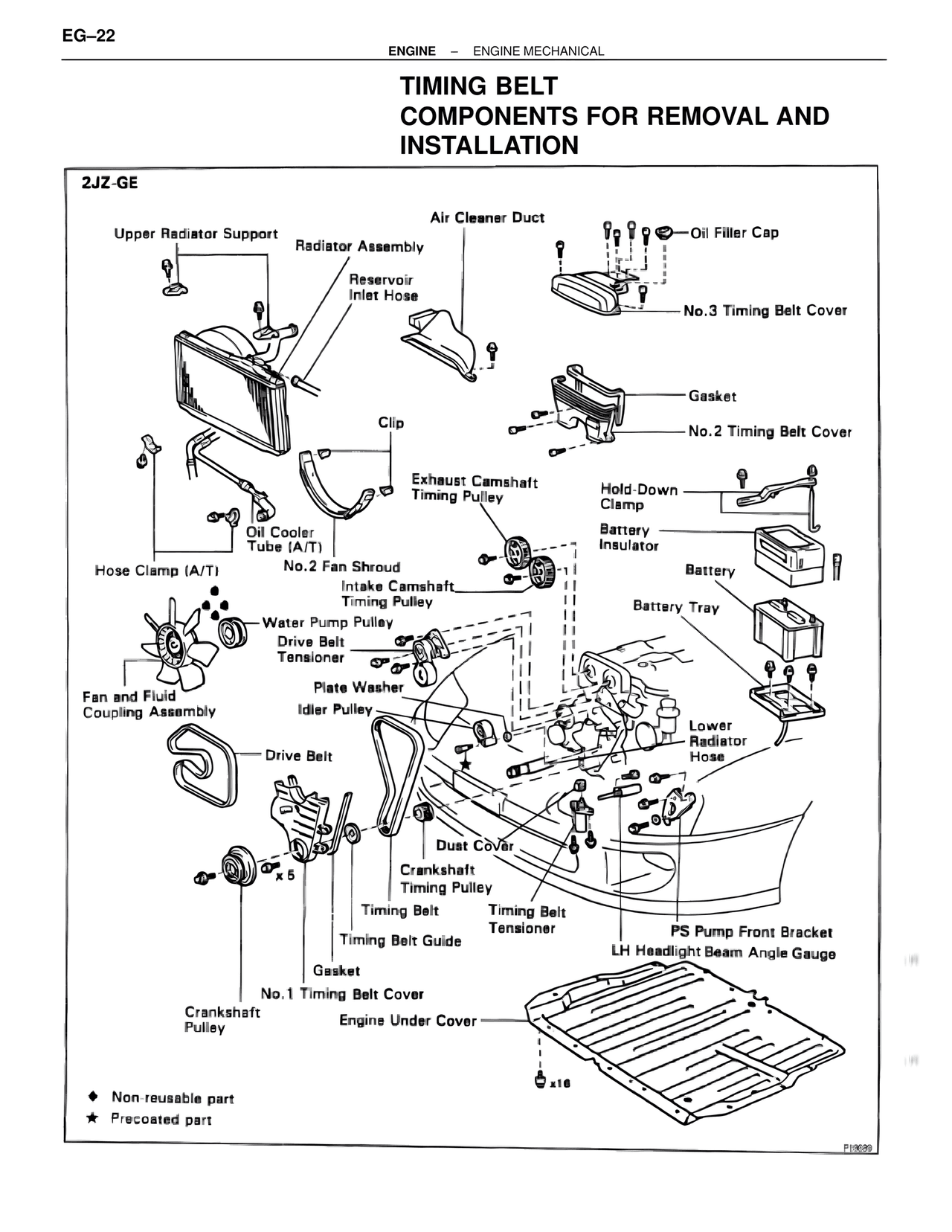

TIMING BELT
COMPONENTS FOR REMOVAL AND
INSTALLATION

2JZ-GE

Air Cleaner Duct
Upper Radiator Support
Oil Filler Cap
Radiator Assembly
Reservoir
Inlet Hose
No.3 Timing Belt Cover
Gasket
No.2 Timing Belt Cover
Clip
Exhaust Camshaft
Timing Pulley
Hold-Down
Clamp
Oil Cooler
Tube (A/T)
Battery
Insulator
No.2 Fan Shroud
Intake Camshaft
Timing Pulley
Battery
Hose Clamp (A/T)
Water Pump Pulley
Battery Tray
Drive Belt
Tensioner
Plate Washer
Idler Pulley
Fan and Fluid
Coupling Assembly
Lower
Radiator
Hose
Drive Belt
Dust Cover
Crankshaft
Timing Pulley
Timing Belt
Timing Belt
Tensioner
Timing Belt Guide
PS Pump Front Bracket
LH Headlight Beam Angle Gauge
Gasket
No.1 Timing Belt Cover
Crankshaft
Pulley
Engine Under Cover

x5

x16

♦ Non-reusable part
★ Precoated part

PI3689
