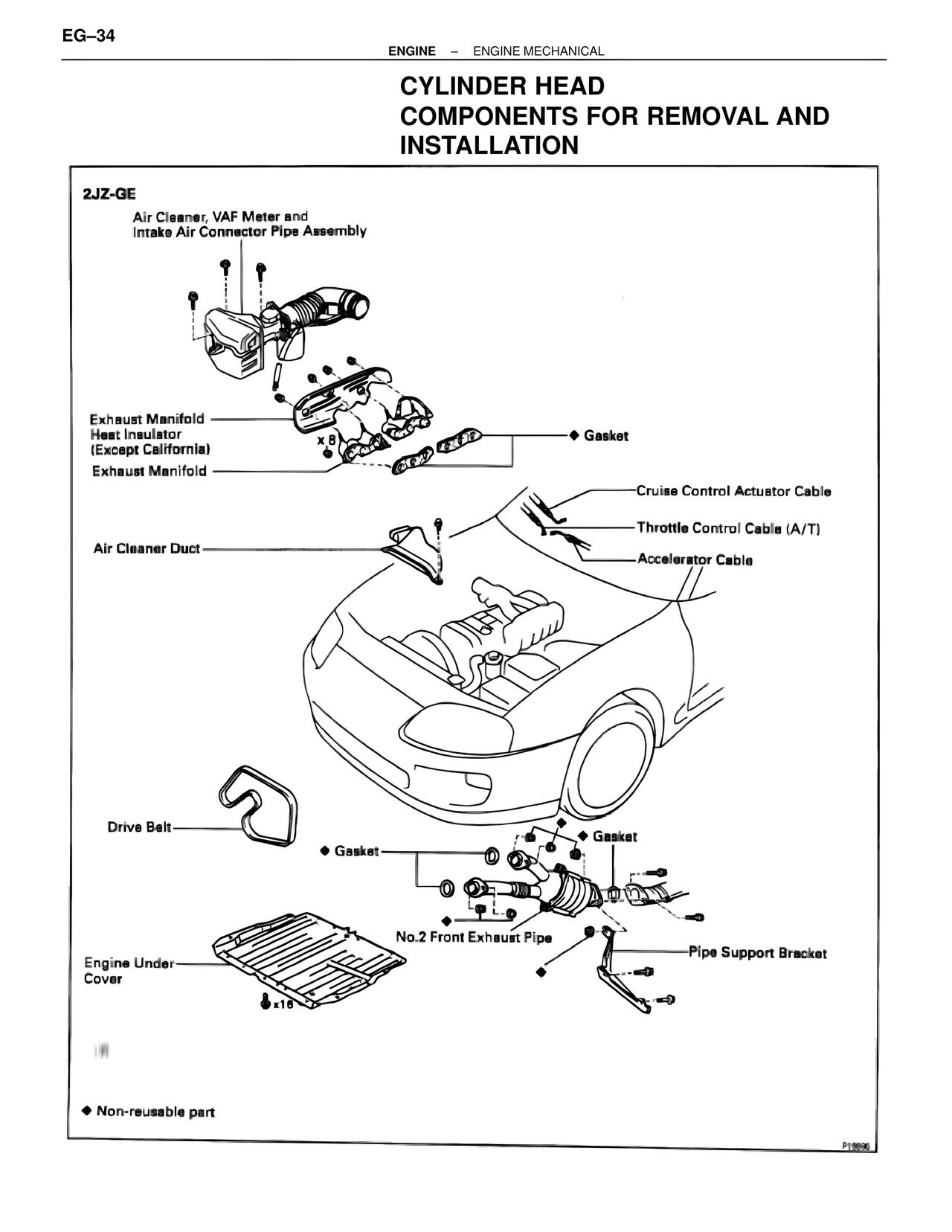

EG–34
ENGINE – ENGINE MECHANICAL

CYLINDER HEAD
COMPONENTS FOR REMOVAL AND
INSTALLATION

2JZ-GE

Air Cleaner, VAF Meter and
Intake Air Connector Pipe Assembly

Exhaust Manifold
Heat Insulator
(Except California)
Exhaust Manifold

x 8

◆ Gasket

Cruise Control Actuator Cable
Throttle Control Cable (A/T)
Accelerator Cable

Air Cleaner Duct

Drive Belt

◆ Gasket

◆ Gasket

No.2 Front Exhaust Pipe

Pipe Support Bracket

Engine Under
Cover

x16

◆ Non-reusable part

P18696
