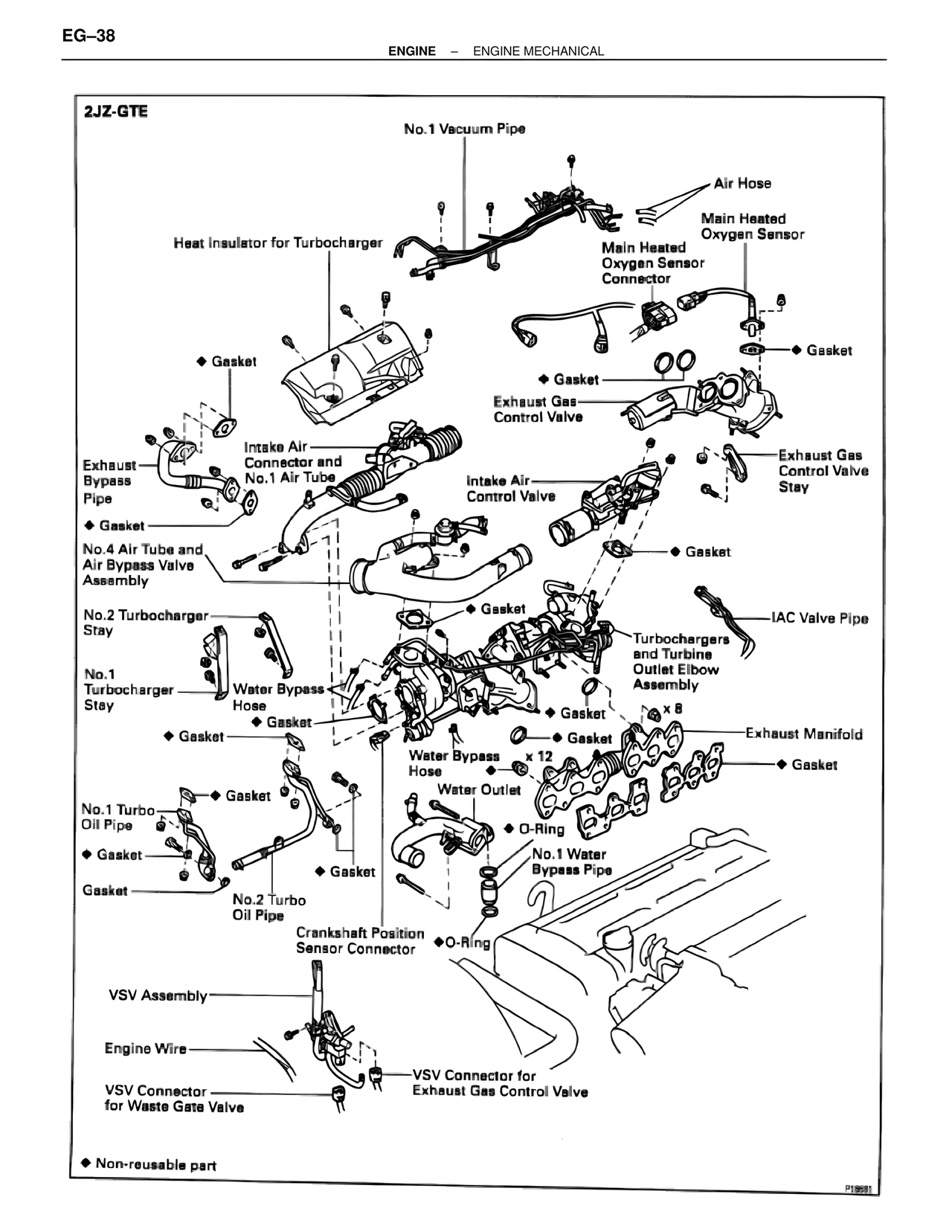

EG–38
ENGINE – ENGINE MECHANICAL
2JZ-GTE
No.1 Vacuum Pipe
Air Hose
Main Heated
Oxygen Sensor
Heat Insulator for Turbocharger
Main Heated
Oxygen Sensor
Connector
♦ Gasket
♦ Gasket
♦ Gasket
Exhaust Gas
Control Valve
Exhaust
Bypass
Pipe
Intake Air
Connector and
No.1 Air Tube
Intake Air
Control Valve
Exhaust Gas
Control Valve
Stay
♦ Gasket
No.4 Air Tube and
Air Bypass Valve
Assembly
♦ Gasket
♦ Gasket
No.2 Turbocharger
Stay
IAC Valve Pipe
Gasket
Turbochargers
and Turbine
Outlet Elbow
Assembly
No.1
Turbocharger
Stay
Water Bypass
Hose
♦ Gasket
♦ Gasket
♦ Gasket
x 8
♦ Gasket
Exhaust Manifold
♦ Gasket
♦ Gasket
No.1 Turbo
Oil Pipe
x 12
Water Bypass
Hose
Water Outlet
♦ Gasket
♦ O-Ring
♦ Gasket
Gasket
No.1 Water
Bypass Pipe
No.2 Turbo
Oil Pipe
Crankshaft Position
Sensor Connector
♦ O-Ring
VSV Assembly
Engine Wire
VSV Connector
for Waste Gate Valve
VSV Connector for
Exhaust Gas Control Valve
♦ Non-reusable part
P13581
