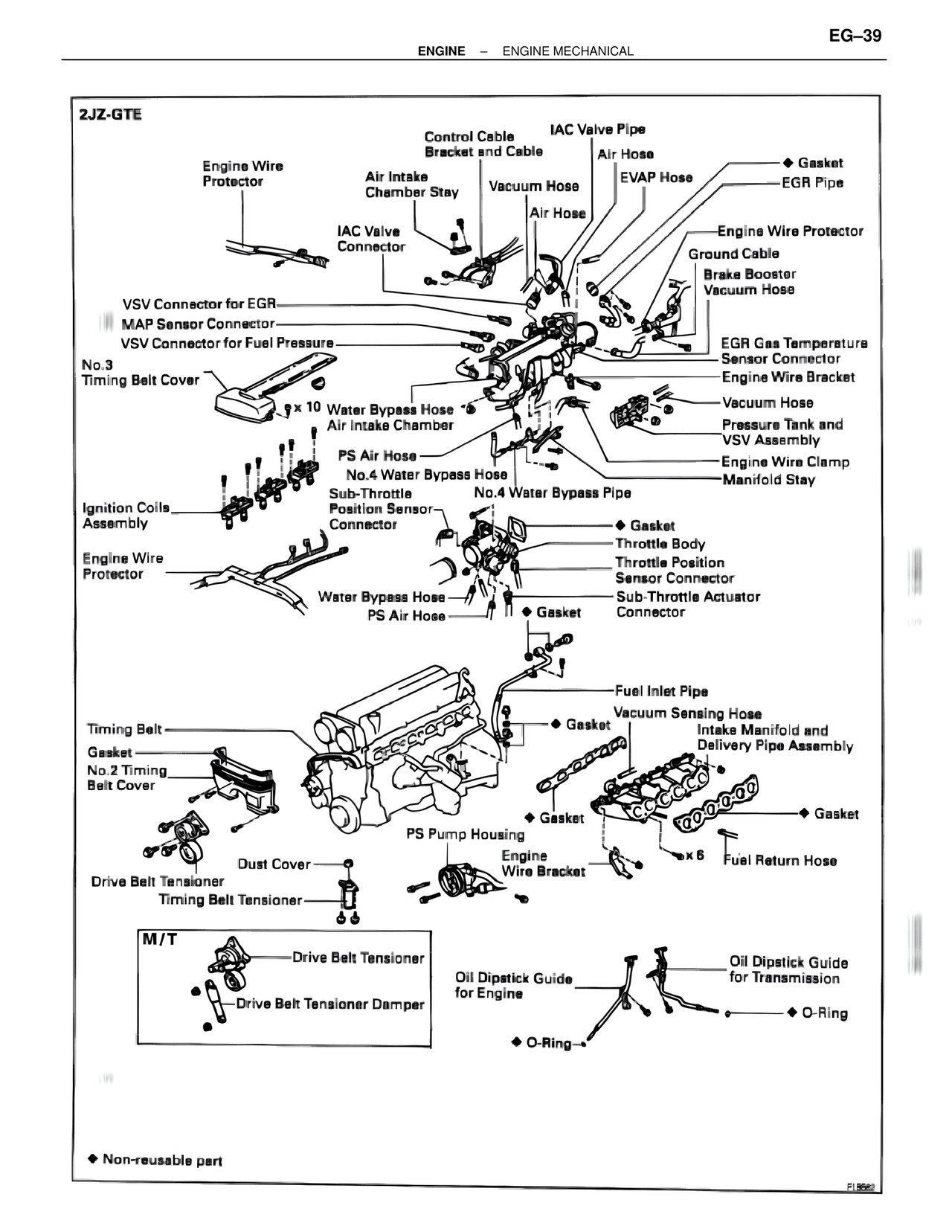

EM/Engine Mechanical — 2JZ-GTE, page 39

EG-39

ENGINE — ENGINE MECHANICAL

2JZ-GTE

IAC Valve Pipe
Control Cable
Bracket and Cable
Air Hose
♦ Gasket
Engine Wire
Protector
EVAP Hose
EGR Pipe
Air Intake
Chamber Stay
Vacuum Hose
Air Hose
Engine Wire Protector
IAC Valve
Connector
Ground Cable
Brake Booster
Vacuum Hose
VSV Connector for EGR
MAP Sensor Connector
EGR Gas Temperature
Sensor Connector
VSV Connector for Fuel Pressure
Engine Wire Bracket
No.3
Timing Belt Cover
Vacuum Hose
x 10 Water Bypass Hose
Air Intake Chamber
Pressure Tank and
VSV Assembly
PS Air Hose
Engine Wire Clamp
No.4 Water Bypass Hose
Manifold Stay
No.4 Water Bypass Pipe
Ignition Coils
Assembly
Sub-Throttle
Position Sensor
Connector
♦ Gasket
Throttle Body
Engine Wire
Protector
Throttle Position
Sensor Connector
Water Bypass Hose
Sub-Throttle Actuator
PS Air Hose
Connector
♦ Gasket

Fuel Inlet Pipe
Vacuum Sensing Hose
Timing Belt
Intake Manifold and
♦ Gasket
Delivery Pipe Assembly
Gasket
No.2 Timing
Belt Cover
♦ Gasket

PS Pump Housing

Dust Cover
Engine
Wire Bracket
x 6
Fuel Return Hose
Drive Belt Tensioner
Timing Belt Tensioner

M/T
Drive Belt Tensioner
Oil Dipstick Guide
Oil Dipstick Guide
for Engine
for Transmission
Drive Belt Tensioner Damper
O-Ring
♦ O-Ring

♦ Non-reusable part

P18582
