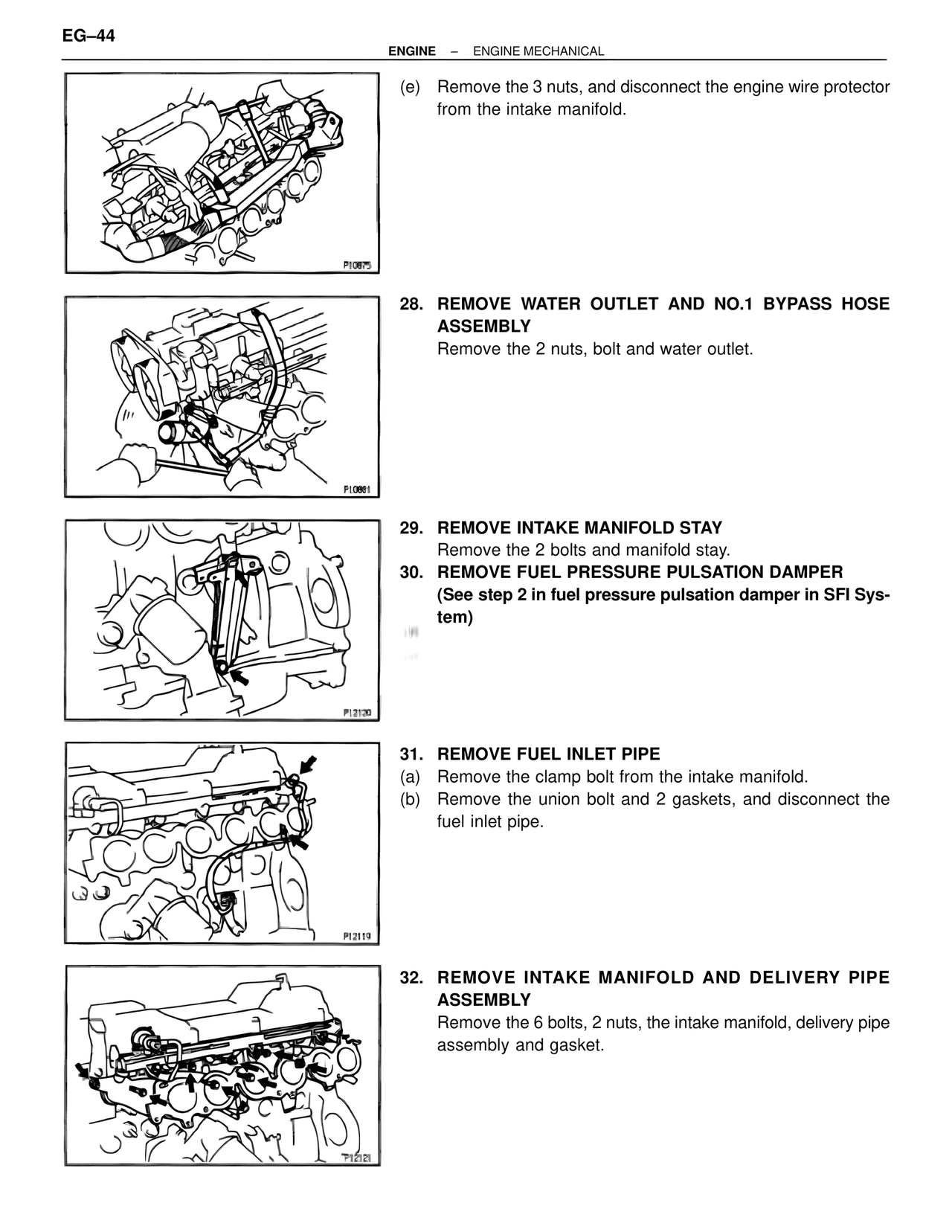

EG–44
ENGINE – ENGINE MECHANICAL
(e) Remove the 3 nuts, and disconnect the engine wire protector
from the intake manifold.
P10675
28. REMOVE WATER OUTLET AND NO.1 BYPASS HOSE
ASSEMBLY
Remove the 2 nuts, bolt and water outlet.
P10881
29. REMOVE INTAKE MANIFOLD STAY
Remove the 2 bolts and manifold stay.
30. REMOVE FUEL PRESSURE PULSATION DAMPER
(See step 2 in fuel pressure pulsation damper in SFI Sys-
tem)
P12120
31. REMOVE FUEL INLET PIPE
(a) Remove the clamp bolt from the intake manifold.
(b) Remove the union bolt and 2 gaskets, and disconnect the
fuel inlet pipe.
P12119
32. REMOVE INTAKE MANIFOLD AND DELIVERY PIPE
ASSEMBLY
Remove the 6 bolts, 2 nuts, the intake manifold, delivery pipe
assembly and gasket.
P12121
