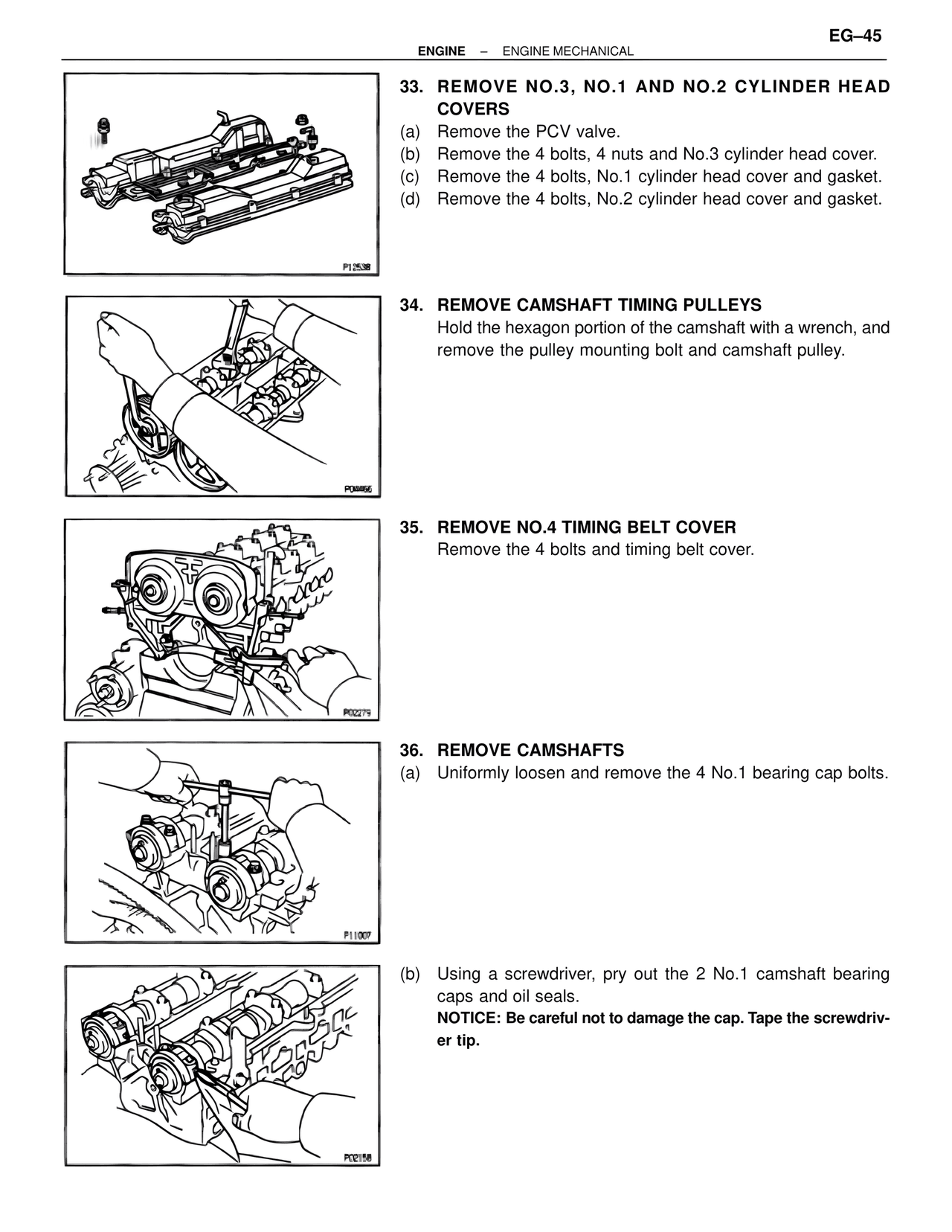

EG–45
ENGINE – ENGINE MECHANICAL
33. REMOVE NO.3, NO.1 AND NO.2 CYLINDER HEAD COVERS
(a) Remove the PCV valve.
(b) Remove the 4 bolts, 4 nuts and No.3 cylinder head cover.
(c) Remove the 4 bolts, No.1 cylinder head cover and gasket.
(d) Remove the 4 bolts, No.2 cylinder head cover and gasket.
P12538
34. REMOVE CAMSHAFT TIMING PULLEYS
Hold the hexagon portion of the camshaft with a wrench, and remove the pulley mounting bolt and camshaft pulley.
P04966
35. REMOVE NO.4 TIMING BELT COVER
Remove the 4 bolts and timing belt cover.
P02279
36. REMOVE CAMSHAFTS
(a) Uniformly loosen and remove the 4 No.1 bearing cap bolts.
P11007
(b) Using a screwdriver, pry out the 2 No.1 camshaft bearing caps and oil seals.
NOTICE: Be careful not to damage the cap. Tape the screwdriver tip.
P02158
