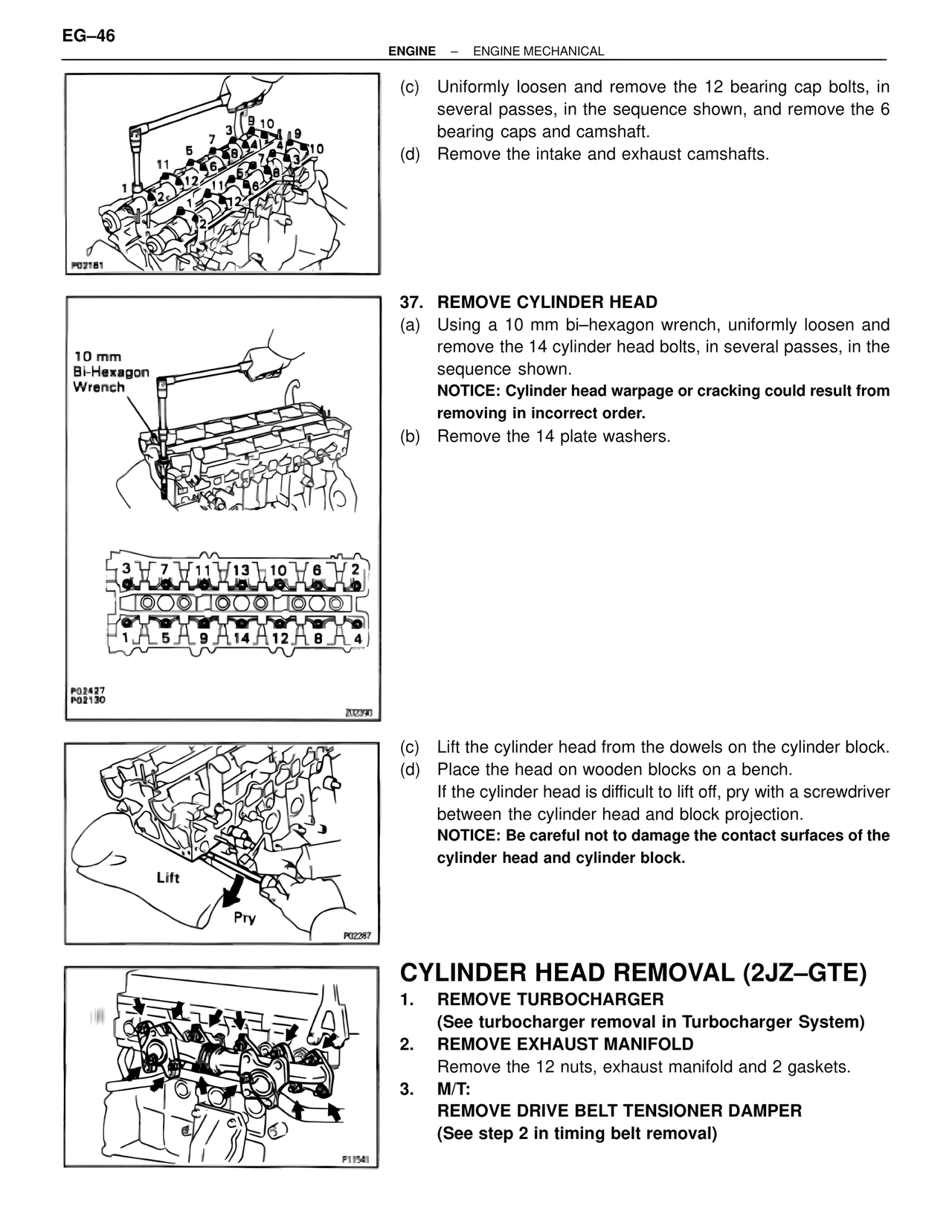

EM/Engine Mechanical — Cylinder Head Removal (2JZ–GTE), page 46

EG–46
ENGINE – ENGINE MECHANICAL

(c) Uniformly loosen and remove the 12 bearing cap bolts, in
several passes, in the sequence shown, and remove the 6
bearing caps and camshaft.
(d) Remove the intake and exhaust camshafts.

37. REMOVE CYLINDER HEAD
(a) Using a 10 mm bi–hexagon wrench, uniformly loosen and
remove the 14 cylinder head bolts, in several passes, in the
sequence shown.
NOTICE: Cylinder head warpage or cracking could result from
removing in incorrect order.
(b) Remove the 14 plate washers.

10 mm
Bi-Hexagon
Wrench

3  7  11  13  10  6  2
1  5   9  14  12  8  4

P02427
P02130
Z02390

(c) Lift the cylinder head from the dowels on the cylinder block.
(d) Place the head on wooden blocks on a bench.
If the cylinder head is difficult to lift off, pry with a screwdriver
between the cylinder head and block projection.
NOTICE: Be careful not to damage the contact surfaces of the
cylinder head and cylinder block.

Lift
Pry

P02287

CYLINDER HEAD REMOVAL (2JZ–GTE)
1. REMOVE TURBOCHARGER
(See turbocharger removal in Turbocharger System)
2. REMOVE EXHAUST MANIFOLD
Remove the 12 nuts, exhaust manifold and 2 gaskets.
3. M/T:
REMOVE DRIVE BELT TENSIONER DAMPER
(See step 2 in timing belt removal)

P11541
