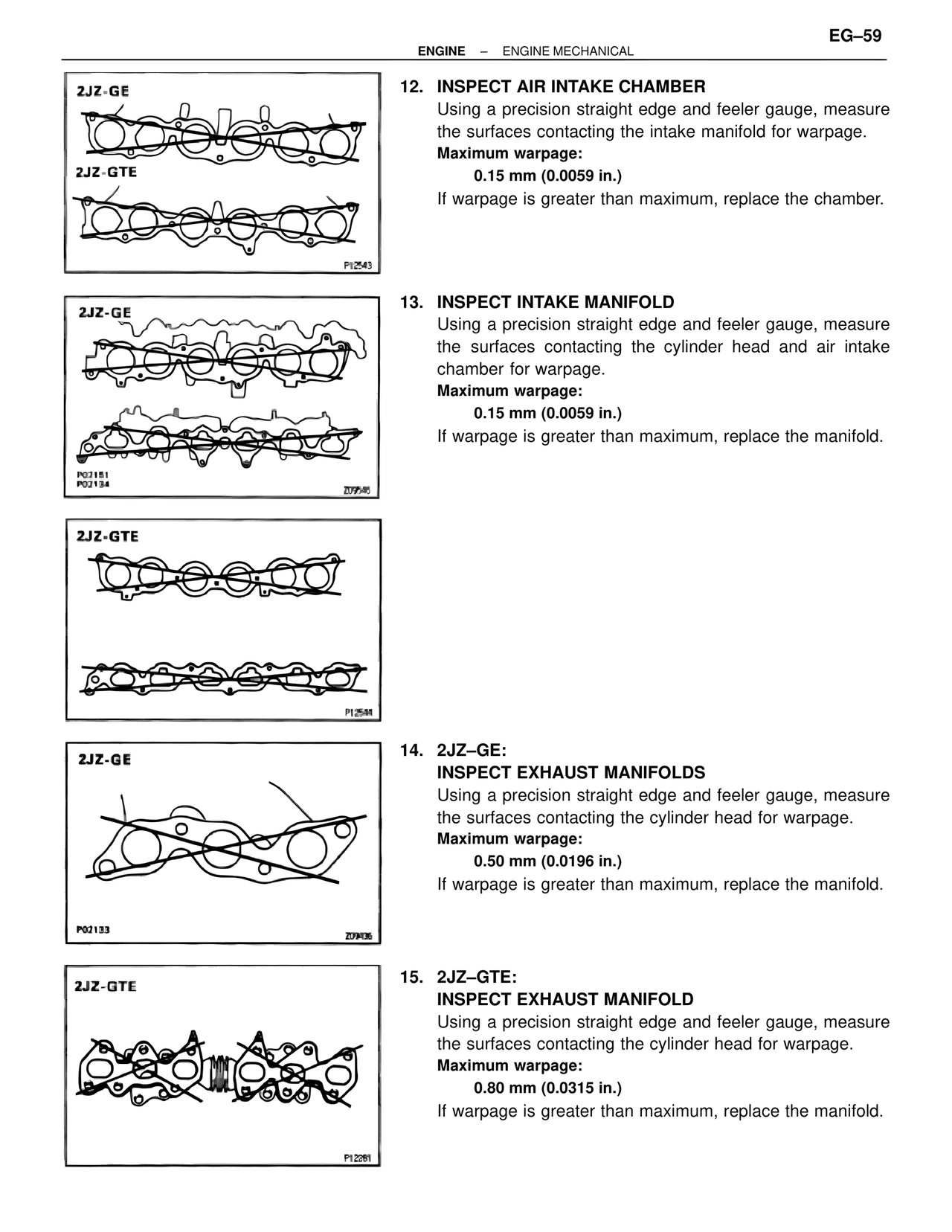

EM/Engine Mechanical, page 59

2JZ-GE

2JZ-GTE

P12543

12. INSPECT AIR INTAKE CHAMBER
Using a precision straight edge and feeler gauge, measure
the surfaces contacting the intake manifold for warpage.
Maximum warpage:
    0.15 mm (0.0059 in.)
If warpage is greater than maximum, replace the chamber.

2JZ-GE

P02151
P02134
Z09546

13. INSPECT INTAKE MANIFOLD
Using a precision straight edge and feeler gauge, measure
the surfaces contacting the cylinder head and air intake
chamber for warpage.
Maximum warpage:
    0.15 mm (0.0059 in.)
If warpage is greater than maximum, replace the manifold.

2JZ-GTE

P12544

2JZ-GE

P02133
Z09436

14. 2JZ–GE:
INSPECT EXHAUST MANIFOLDS
Using a precision straight edge and feeler gauge, measure
the surfaces contacting the cylinder head for warpage.
Maximum warpage:
    0.50 mm (0.0196 in.)
If warpage is greater than maximum, replace the manifold.

2JZ-GTE

P12261

15. 2JZ–GTE:
INSPECT EXHAUST MANIFOLD
Using a precision straight edge and feeler gauge, measure
the surfaces contacting the cylinder head for warpage.
Maximum warpage:
    0.80 mm (0.0315 in.)
If warpage is greater than maximum, replace the manifold.
