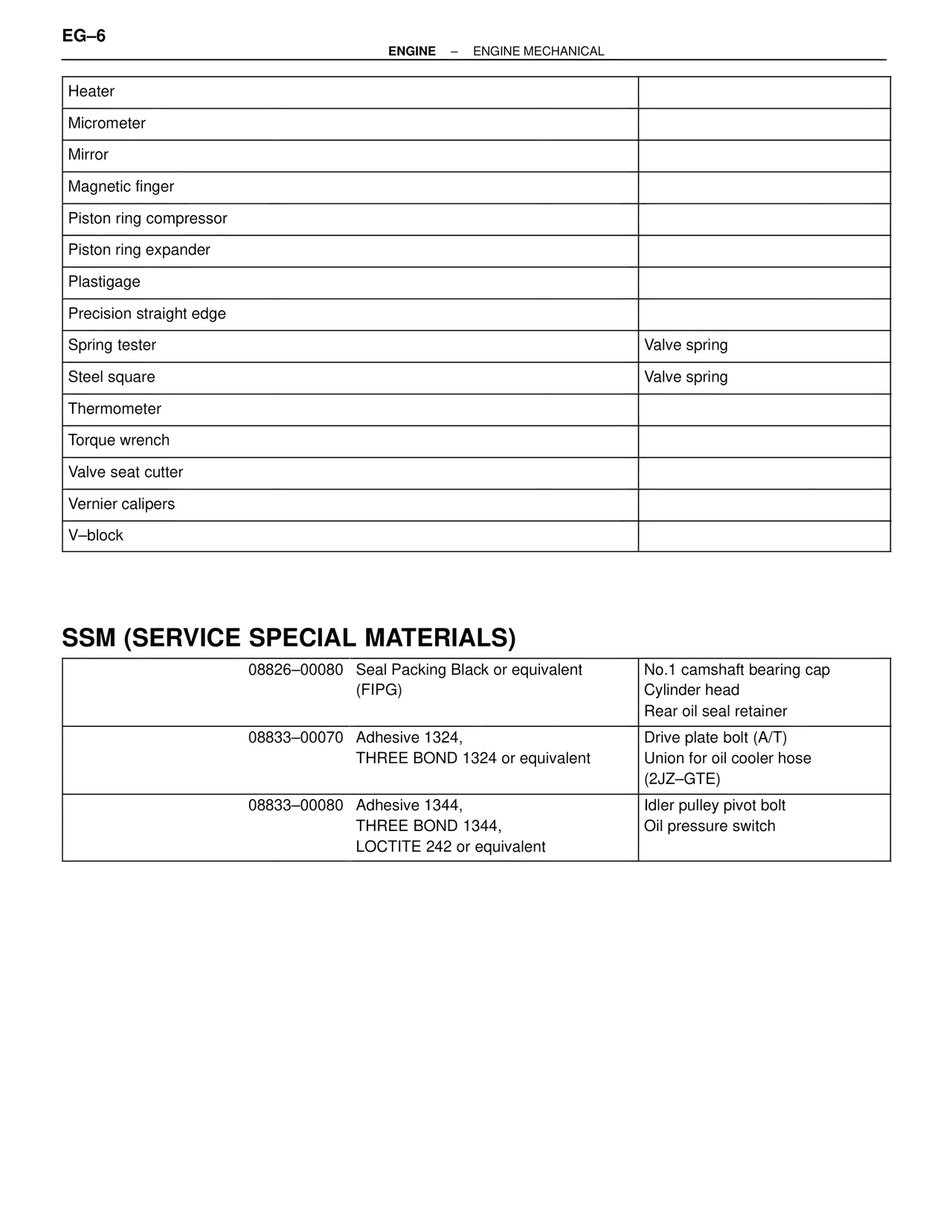

SSM (SERVICE SPECIAL MATERIALS) — MK4 Supra Engine Mechanical, page 6
100%
EG–6 ENGINE – ENGINE MECHANICAL Heater Micrometer Mirror Magnetic finger Piston ring compressor Piston ring expander Plastigage Precision straight edge Spring tester Valve spring Steel square Valve spring Thermometer Torque wrench Valve seat cutter Vernier calipers V–block SSM (SERVICE SPECIAL MATERIALS) 08826–00080 Seal Packing Black or equivalent (FIPG) No.1 camshaft bearing cap Cylinder head Rear oil seal retainer 08833–00070 Adhesive 1324, THREE BOND 1324 or equivalent Drive plate bolt (A/T) Union for oil cooler hose (2JZ–GTE) 08833–00080 Adhesive 1344, THREE BOND 1344, LOCTITE 242 or equivalent Idler pulley pivot bolt Oil pressure switch
