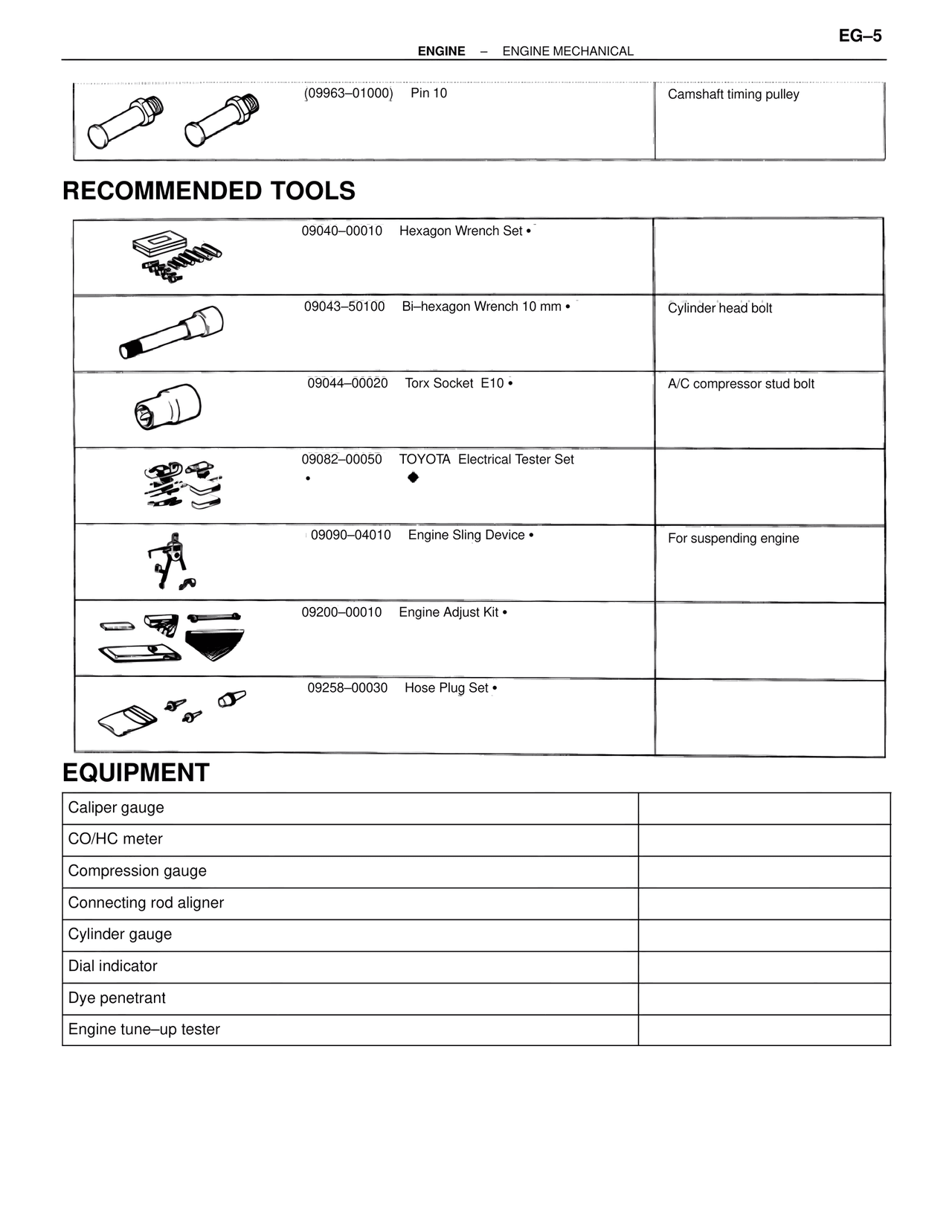

RECOMMENDED TOOLS — MK4 Supra Engine Mechanical, page 5
100%
(09963–01000) Pin 10 Camshaft timing pulley RECOMMENDED TOOLS 09040–00010 Hexagon Wrench Set • 09043–50100 Bi–hexagon Wrench 10 mm • Cylinder head bolt 09044–00020 Torx Socket E10 • A/C compressor stud bolt 09082–00050 TOYOTA Electrical Tester Set • ♦ 09090–04010 Engine Sling Device • For suspending engine 09200–00010 Engine Adjust Kit • 09258–00030 Hose Plug Set • EQUIPMENT Caliper gauge CO/HC meter Compression gauge Connecting rod aligner Cylinder gauge Dial indicator Dye penetrant Engine tune–up tester
