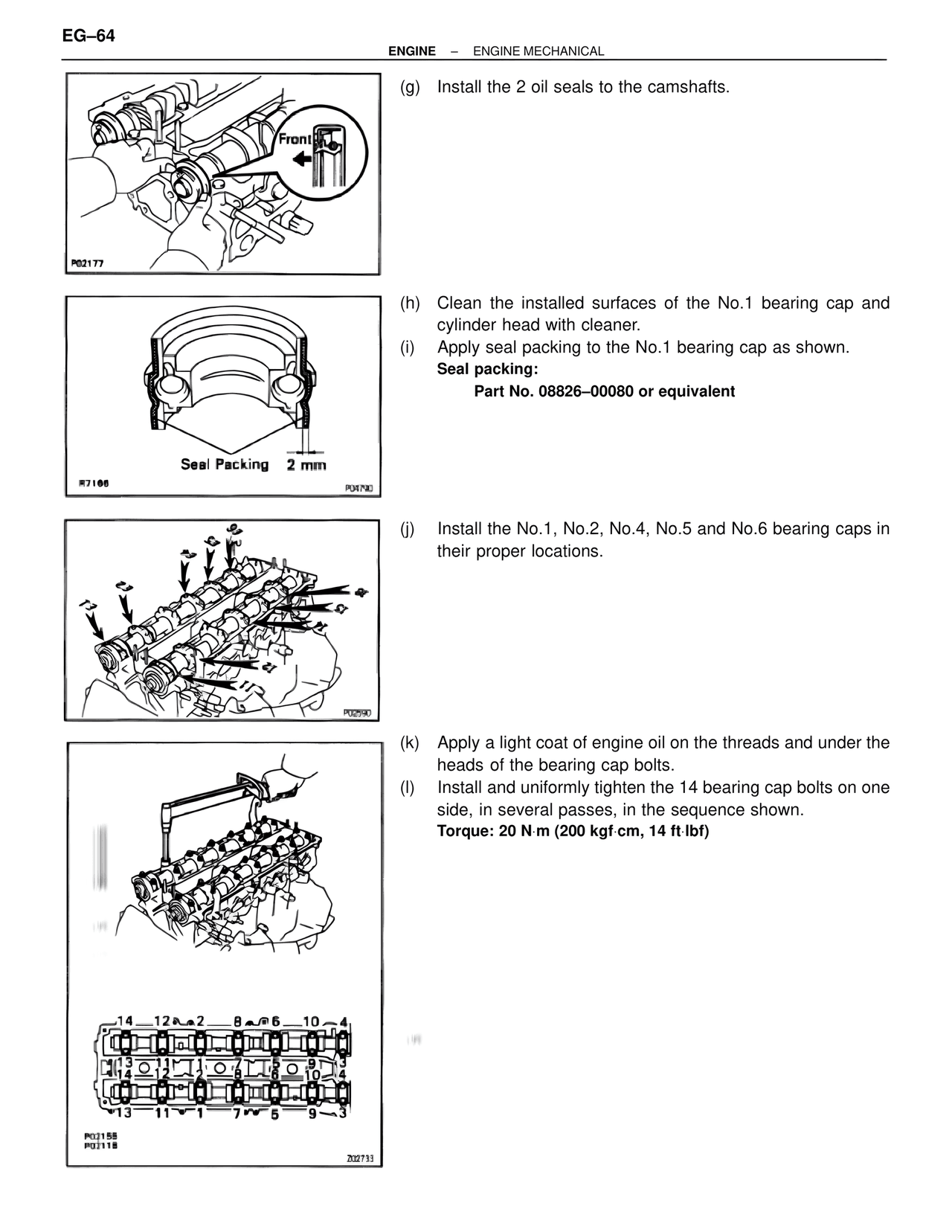

EG–64

ENGINE – ENGINE MECHANICAL

(g) Install the 2 oil seals to the camshafts.

Front

P02177

Seal Packing   2 mm
R7166
P04790

(h) Clean the installed surfaces of the No.1 bearing cap and cylinder head with cleaner.
(i) Apply seal packing to the No.1 bearing cap as shown.
Seal packing:
    Part No. 08826–00080 or equivalent

P02590

(j) Install the No.1, No.2, No.4, No.5 and No.6 bearing caps in their proper locations.

(k) Apply a light coat of engine oil on the threads and under the heads of the bearing cap bolts.
(l) Install and uniformly tighten the 14 bearing cap bolts on one side, in several passes, in the sequence shown.
Torque: 20 N·m (200 kgf·cm, 14 ft·lbf)

14  12  2  8  6  10  4
13  11  1  7  5  9  3

P03156
P03118
202733
