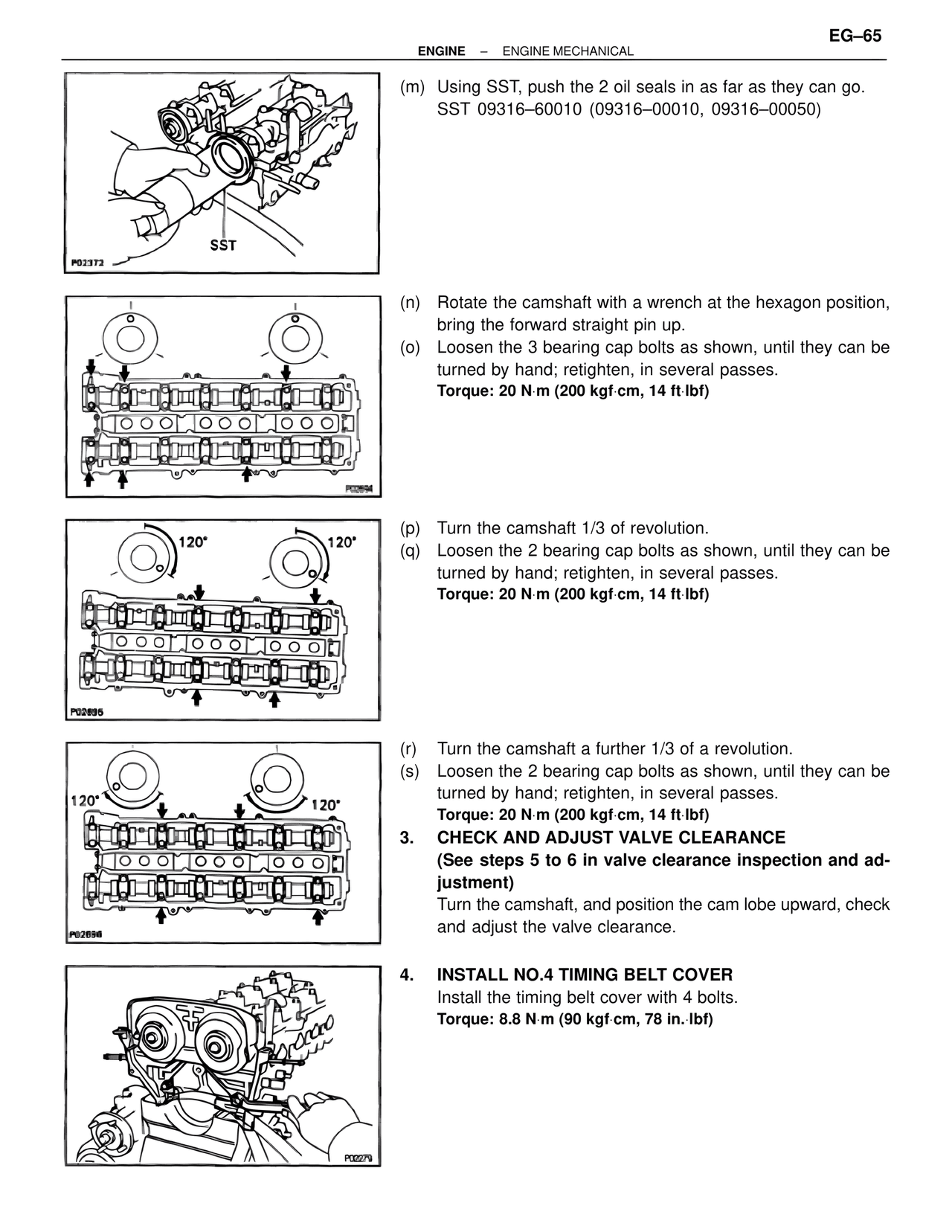

EG–65
ENGINE – ENGINE MECHANICAL
P02372
SST
(m) Using SST, push the 2 oil seals in as far as they can go.
SST 09316–60010 (09316–00010, 09316–00050)
P02694
(n) Rotate the camshaft with a wrench at the hexagon position,
bring the forward straight pin up.
(o) Loosen the 3 bearing cap bolts as shown, until they can be
turned by hand; retighten, in several passes.
Torque: 20 N·m (200 kgf·cm, 14 ft·lbf)
P02695
120° 120°
(p) Turn the camshaft 1/3 of revolution.
(q) Loosen the 2 bearing cap bolts as shown, until they can be
turned by hand; retighten, in several passes.
Torque: 20 N·m (200 kgf·cm, 14 ft·lbf)
P02696
120° 120°
(r) Turn the camshaft a further 1/3 of a revolution.
(s) Loosen the 2 bearing cap bolts as shown, until they can be
turned by hand; retighten, in several passes.
Torque: 20 N·m (200 kgf·cm, 14 ft·lbf)
3. CHECK AND ADJUST VALVE CLEARANCE
(See steps 5 to 6 in valve clearance inspection and ad-
justment)
Turn the camshaft, and position the cam lobe upward, check
and adjust the valve clearance.
P00279
4. INSTALL NO.4 TIMING BELT COVER
Install the timing belt cover with 4 bolts.
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)
