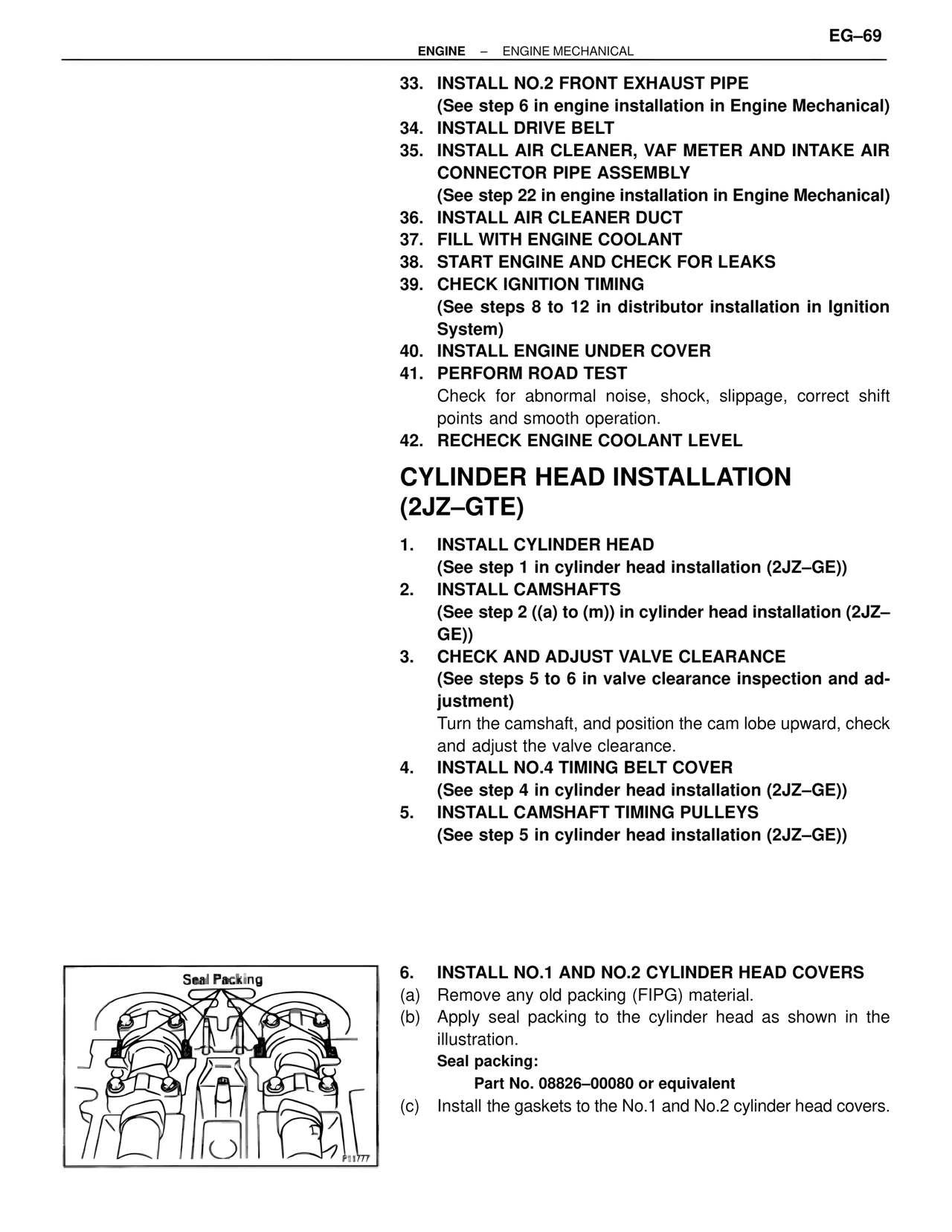

EG–69 ENGINE – ENGINE MECHANICAL 33. INSTALL NO.2 FRONT EXHAUST PIPE (See step 6 in engine installation in Engine Mechanical) 34. INSTALL DRIVE BELT 35. INSTALL AIR CLEANER, VAF METER AND INTAKE AIR CONNECTOR PIPE ASSEMBLY (See step 22 in engine installation in Engine Mechanical) 36. INSTALL AIR CLEANER DUCT 37. FILL WITH ENGINE COOLANT 38. START ENGINE AND CHECK FOR LEAKS 39. CHECK IGNITION TIMING (See steps 8 to 12 in distributor installation in Ignition System) 40. INSTALL ENGINE UNDER COVER 41. PERFORM ROAD TEST Check for abnormal noise, shock, slippage, correct shift points and smooth operation. 42. RECHECK ENGINE COOLANT LEVEL CYLINDER HEAD INSTALLATION (2JZ–GTE) 1. INSTALL CYLINDER HEAD (See step 1 in cylinder head installation (2JZ–GE)) 2. INSTALL CAMSHAFTS (See step 2 ((a) to (m)) in cylinder head installation (2JZ– GE)) 3. CHECK AND ADJUST VALVE CLEARANCE (See steps 5 to 6 in valve clearance inspection and ad- justment) Turn the camshaft, and position the cam lobe upward, check and adjust the valve clearance. 4. INSTALL NO.4 TIMING BELT COVER (See step 4 in cylinder head installation (2JZ–GE)) 5. INSTALL CAMSHAFT TIMING PULLEYS (See step 5 in cylinder head installation (2JZ–GE)) Seal Packing P11777 6. INSTALL NO.1 AND NO.2 CYLINDER HEAD COVERS (a) Remove any old packing (FIPG) material. (b) Apply seal packing to the cylinder head as shown in the illustration. Seal packing: Part No. 08826–00080 or equivalent (c) Install the gaskets to the No.1 and No.2 cylinder head covers.
