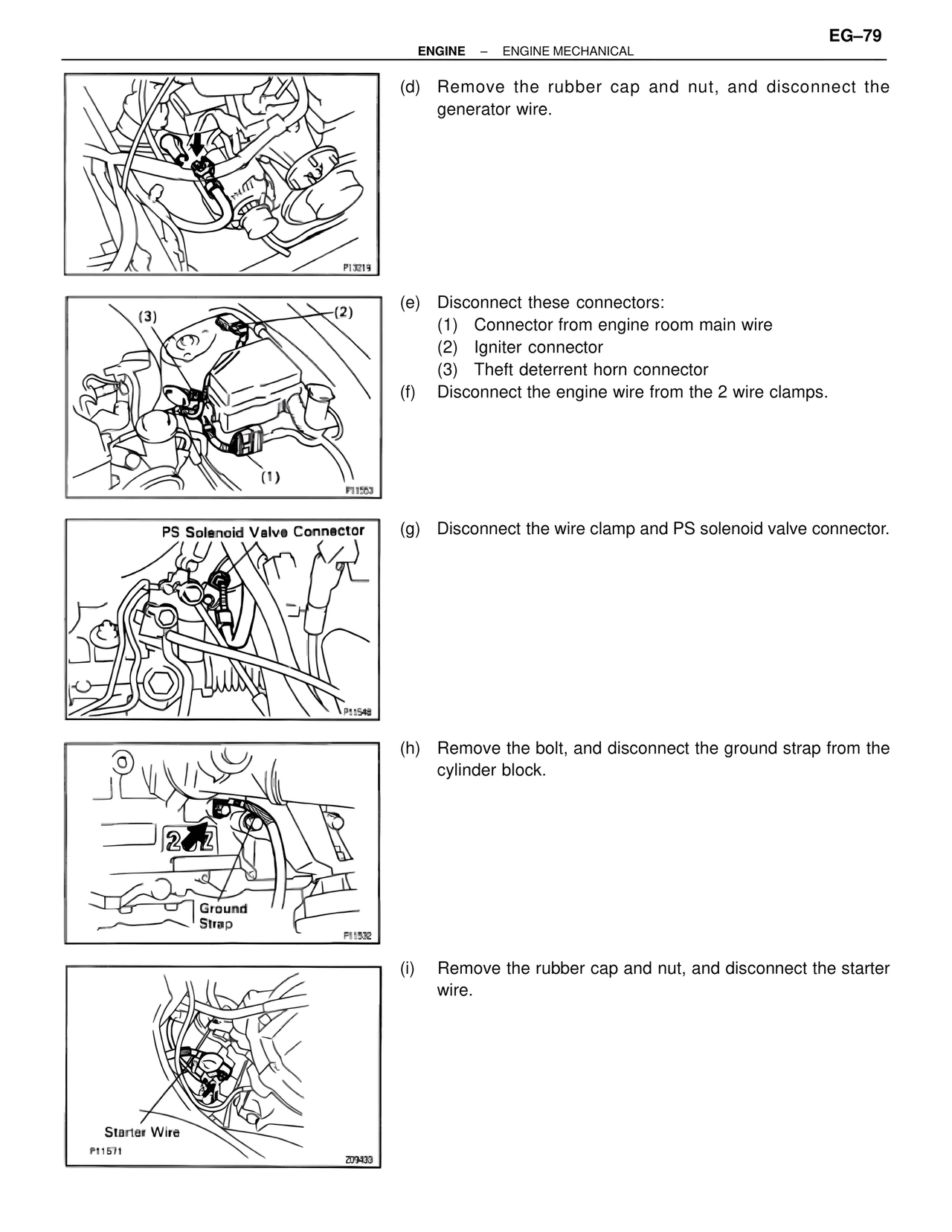

EM/Engine Mechanical, page 79

EG–79

ENGINE – ENGINE MECHANICAL

P13219

(d) Remove the rubber cap and nut, and disconnect the generator wire.

(3)                    (2)

P11553

(1)

(e) Disconnect these connectors:
(1) Connector from engine room main wire
(2) Igniter connector
(3) Theft deterrent horn connector
(f) Disconnect the engine wire from the 2 wire clamps.

PS Solenoid Valve Connector

P11548

(g) Disconnect the wire clamp and PS solenoid valve connector.

Ground
Strap

P11532

(h) Remove the bolt, and disconnect the ground strap from the cylinder block.

Starter Wire
P11571                    Z09433

(i) Remove the rubber cap and nut, and disconnect the starter wire.
