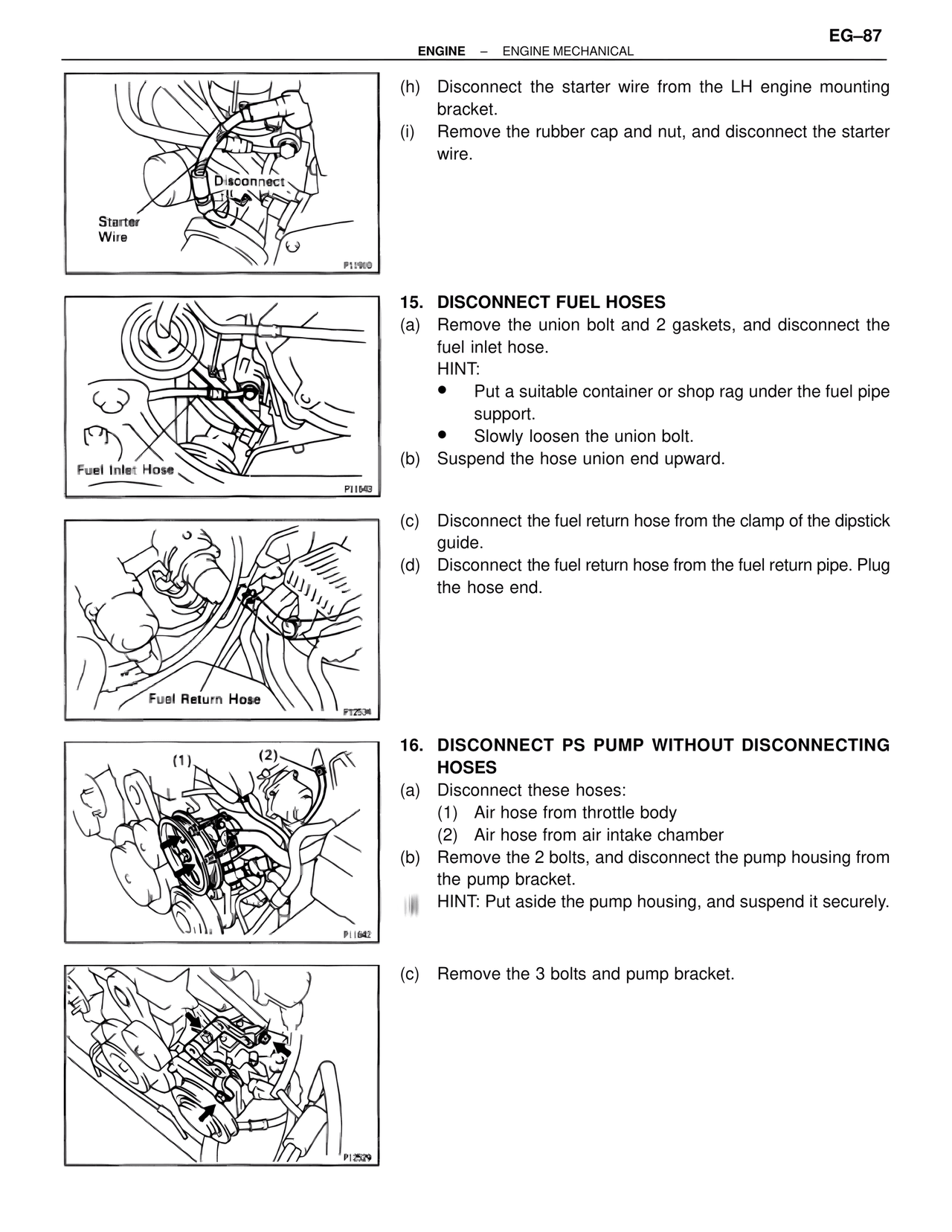

EG–87 ENGINE – ENGINE MECHANICAL Disconnect Starter Wire P11960 (h) Disconnect the starter wire from the LH engine mounting bracket. (i) Remove the rubber cap and nut, and disconnect the starter wire. Fuel Inlet Hose P11643 15. DISCONNECT FUEL HOSES (a) Remove the union bolt and 2 gaskets, and disconnect the fuel inlet hose. HINT: • Put a suitable container or shop rag under the fuel pipe support. • Slowly loosen the union bolt. (b) Suspend the hose union end upward. Fuel Return Hose P12536 (c) Disconnect the fuel return hose from the clamp of the dipstick guide. (d) Disconnect the fuel return hose from the fuel return pipe. Plug the hose end. (1) (2) P11642 16. DISCONNECT PS PUMP WITHOUT DISCONNECTING HOSES (a) Disconnect these hoses: (1) Air hose from throttle body (2) Air hose from air intake chamber (b) Remove the 2 bolts, and disconnect the pump housing from the pump bracket. HINT: Put aside the pump housing, and suspend it securely. P12529 (c) Remove the 3 bolts and pump bracket.
