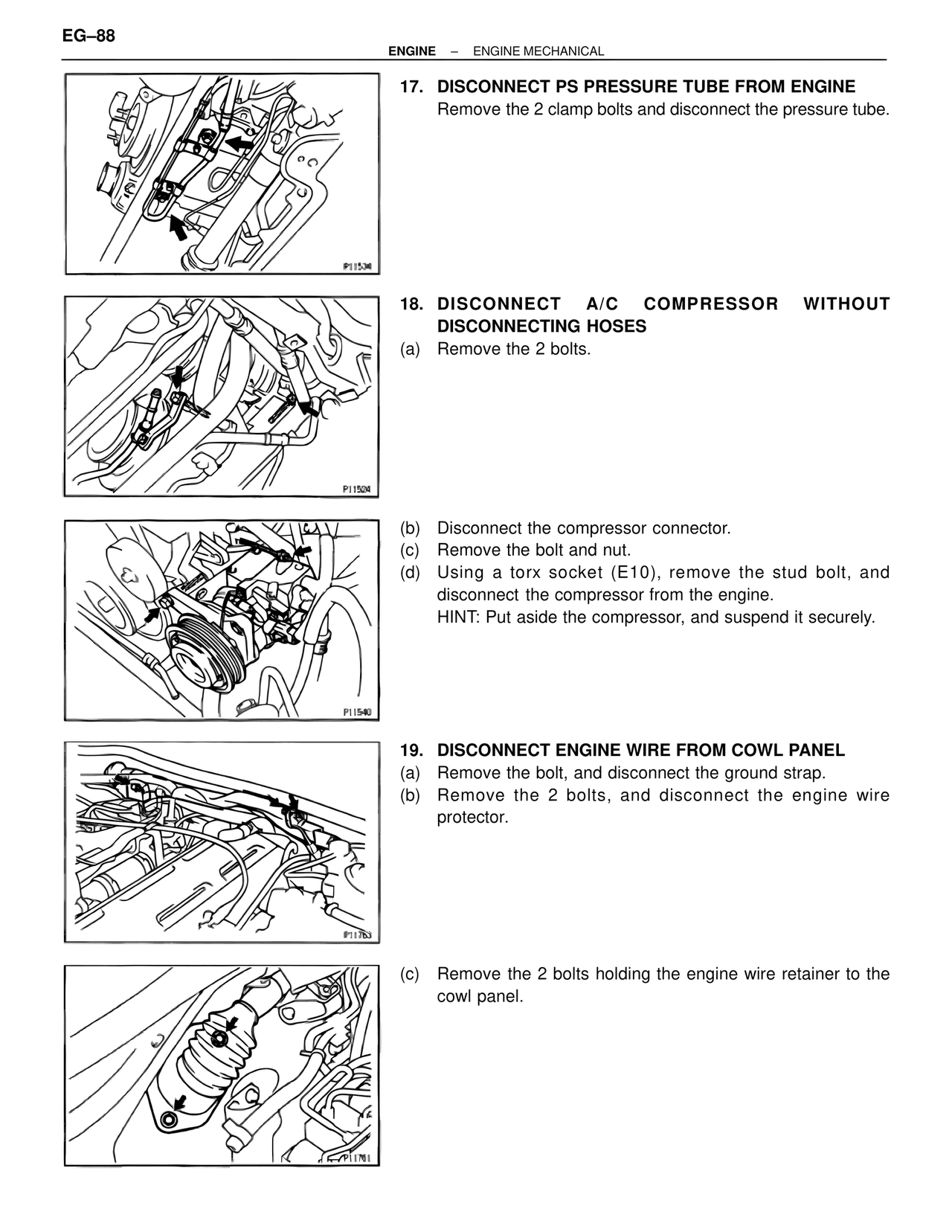

EG–88
ENGINE – ENGINE MECHANICAL
17. DISCONNECT PS PRESSURE TUBE FROM ENGINE
Remove the 2 clamp bolts and disconnect the pressure tube.
P11536
18. DISCONNECT A/C COMPRESSOR WITHOUT
DISCONNECTING HOSES
(a) Remove the 2 bolts.
P11524
(b) Disconnect the compressor connector.
(c) Remove the bolt and nut.
(d) Using a torx socket (E10), remove the stud bolt, and
disconnect the compressor from the engine.
HINT: Put aside the compressor, and suspend it securely.
P11540
19. DISCONNECT ENGINE WIRE FROM COWL PANEL
(a) Remove the bolt, and disconnect the ground strap.
(b) Remove the 2 bolts, and disconnect the engine wire
protector.
P11763
(c) Remove the 2 bolts holding the engine wire retainer to the
cowl panel.
P11761
