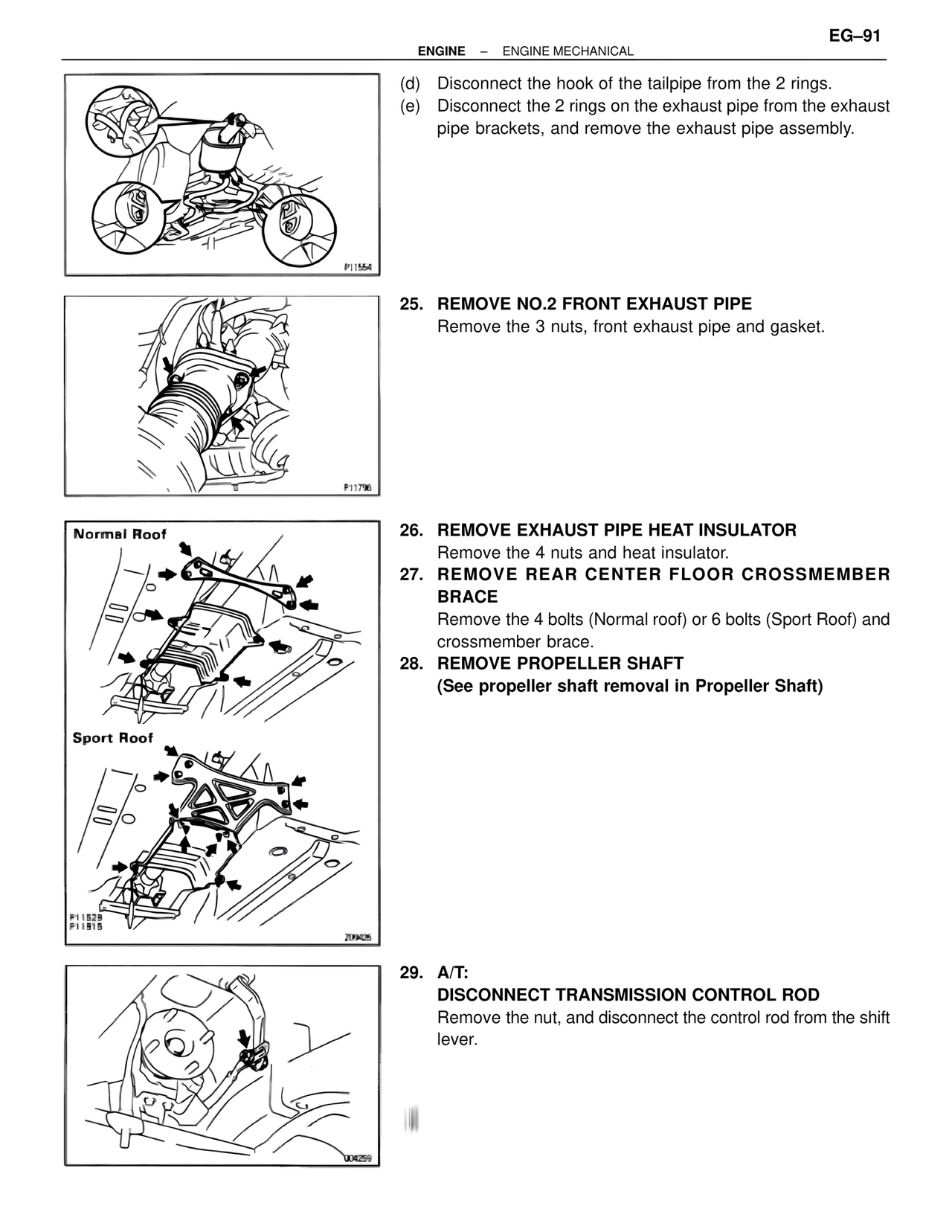

(d) Disconnect the hook of the tailpipe from the 2 rings. (e) Disconnect the 2 rings on the exhaust pipe from the exhaust pipe brackets, and remove the exhaust pipe assembly. P11554 25. REMOVE NO.2 FRONT EXHAUST PIPE Remove the 3 nuts, front exhaust pipe and gasket. P11796 Normal Roof 26. REMOVE EXHAUST PIPE HEAT INSULATOR Remove the 4 nuts and heat insulator. 27. REMOVE REAR CENTER FLOOR CROSSMEMBER BRACE Remove the 4 bolts (Normal roof) or 6 bolts (Sport Roof) and crossmember brace. 28. REMOVE PROPELLER SHAFT (See propeller shaft removal in Propeller Shaft) Sport Roof P11528 P11915 209426 29. A/T: DISCONNECT TRANSMISSION CONTROL ROD Remove the nut, and disconnect the control rod from the shift lever. 004259
