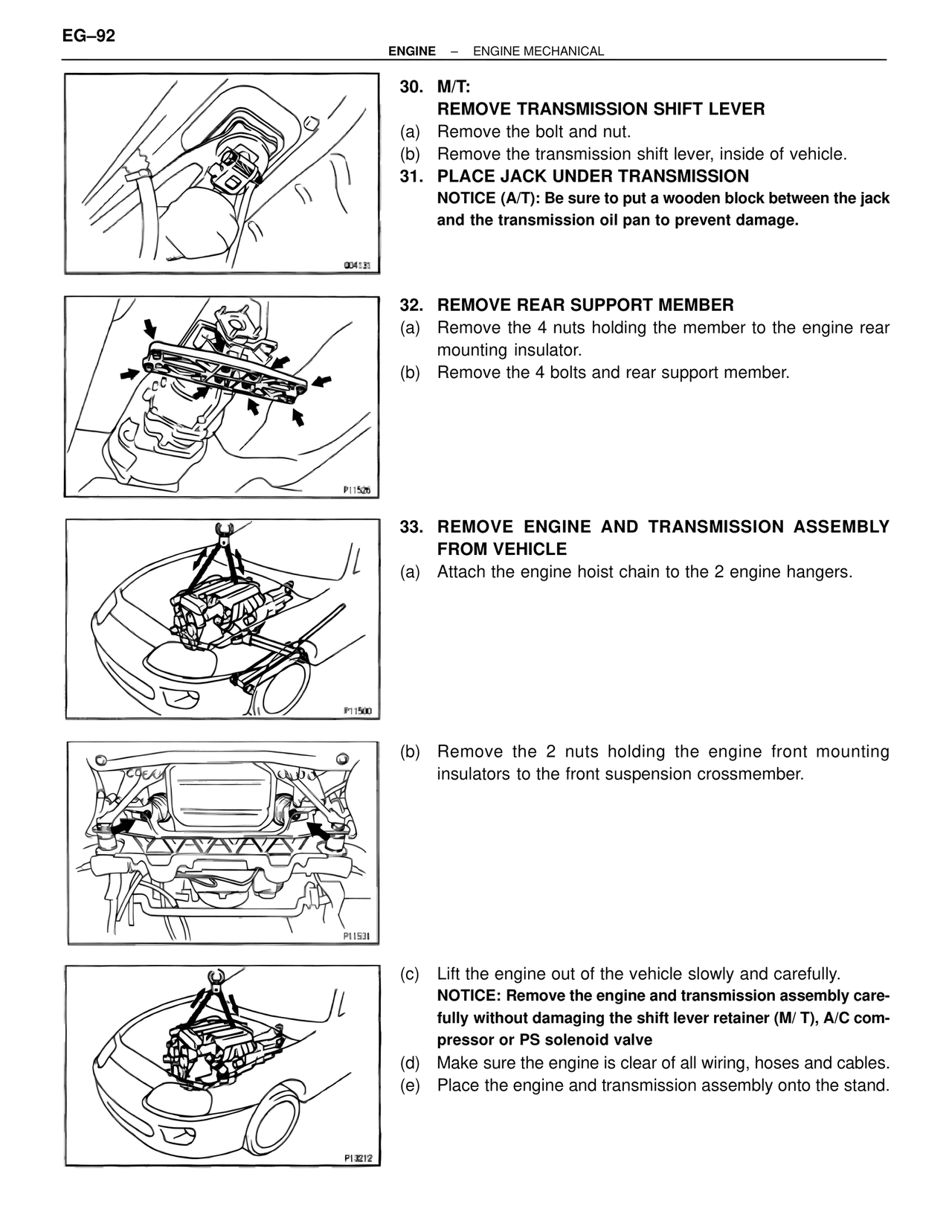

EG–92
ENGINE – ENGINE MECHANICAL
30. M/T:
REMOVE TRANSMISSION SHIFT LEVER
(a) Remove the bolt and nut.
(b) Remove the transmission shift lever, inside of vehicle.
31. PLACE JACK UNDER TRANSMISSION
NOTICE (A/T): Be sure to put a wooden block between the jack
and the transmission oil pan to prevent damage.
32. REMOVE REAR SUPPORT MEMBER
(a) Remove the 4 nuts holding the member to the engine rear
mounting insulator.
(b) Remove the 4 bolts and rear support member.
33. REMOVE ENGINE AND TRANSMISSION ASSEMBLY
FROM VEHICLE
(a) Attach the engine hoist chain to the 2 engine hangers.
(b) Remove the 2 nuts holding the engine front mounting
insulators to the front suspension crossmember.
(c) Lift the engine out of the vehicle slowly and carefully.
NOTICE: Remove the engine and transmission assembly care-
fully without damaging the shift lever retainer (M/T), A/C com-
pressor or PS solenoid valve
(d) Make sure the engine is clear of all wiring, hoses and cables.
(e) Place the engine and transmission assembly onto the stand.
Q04135
P11526
P11500
P11531
P13212
