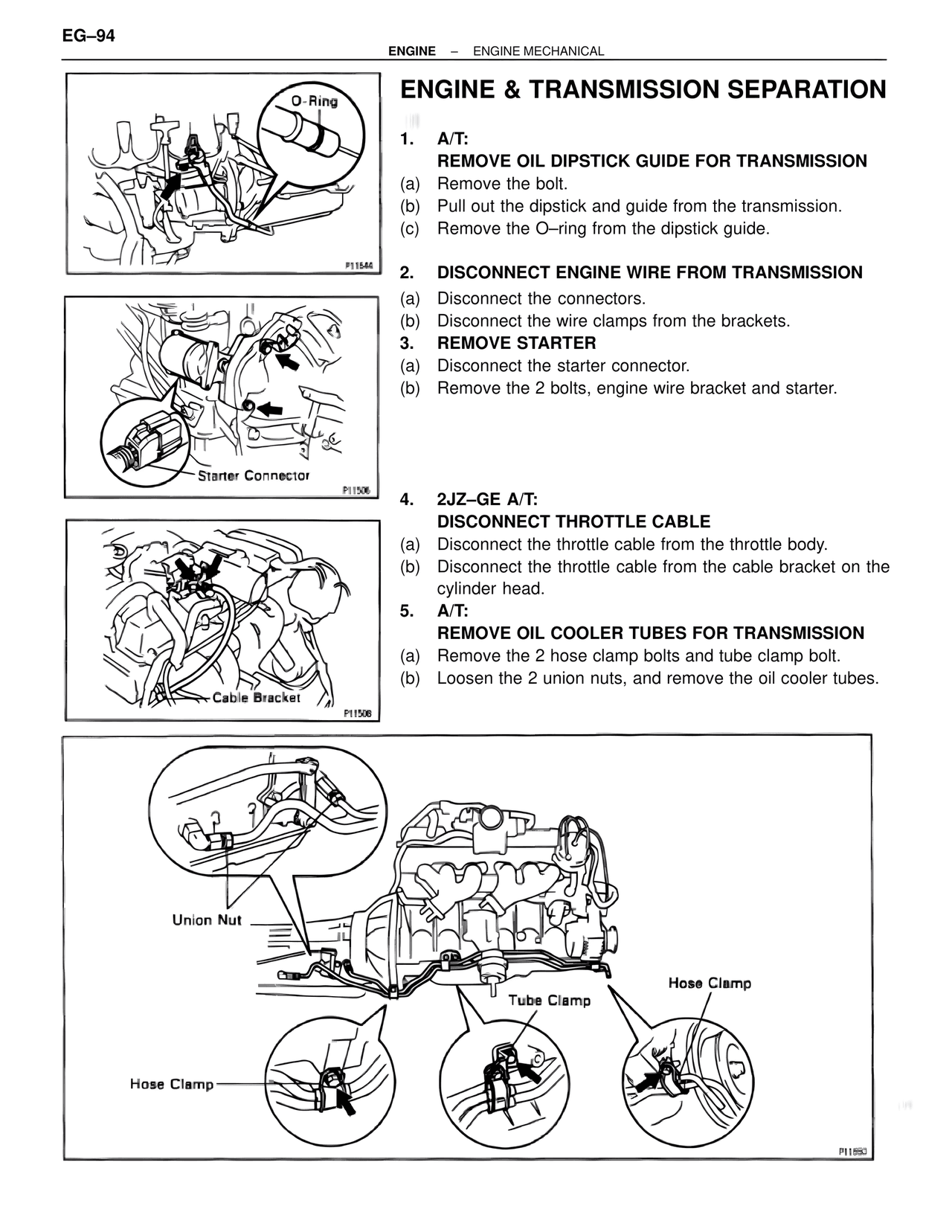

EG–94
ENGINE – ENGINE MECHANICAL
ENGINE & TRANSMISSION SEPARATION
O-Ring
P11546
1. A/T:
REMOVE OIL DIPSTICK GUIDE FOR TRANSMISSION
(a) Remove the bolt.
(b) Pull out the dipstick and guide from the transmission.
(c) Remove the O–ring from the dipstick guide.
2. DISCONNECT ENGINE WIRE FROM TRANSMISSION
(a) Disconnect the connectors.
(b) Disconnect the wire clamps from the brackets.
3. REMOVE STARTER
(a) Disconnect the starter connector.
(b) Remove the 2 bolts, engine wire bracket and starter.
Starter Connector
P11506
4. 2JZ–GE A/T:
DISCONNECT THROTTLE CABLE
(a) Disconnect the throttle cable from the throttle body.
(b) Disconnect the throttle cable from the cable bracket on the cylinder head.
5. A/T:
REMOVE OIL COOLER TUBES FOR TRANSMISSION
(a) Remove the 2 hose clamp bolts and tube clamp bolt.
(b) Loosen the 2 union nuts, and remove the oil cooler tubes.
Cable Bracket
P11508
Union Nut
Tube Clamp
Hose Clamp
Hose Clamp
P11550
