ENGINE — ENGINE MECHANICAL

EG-93

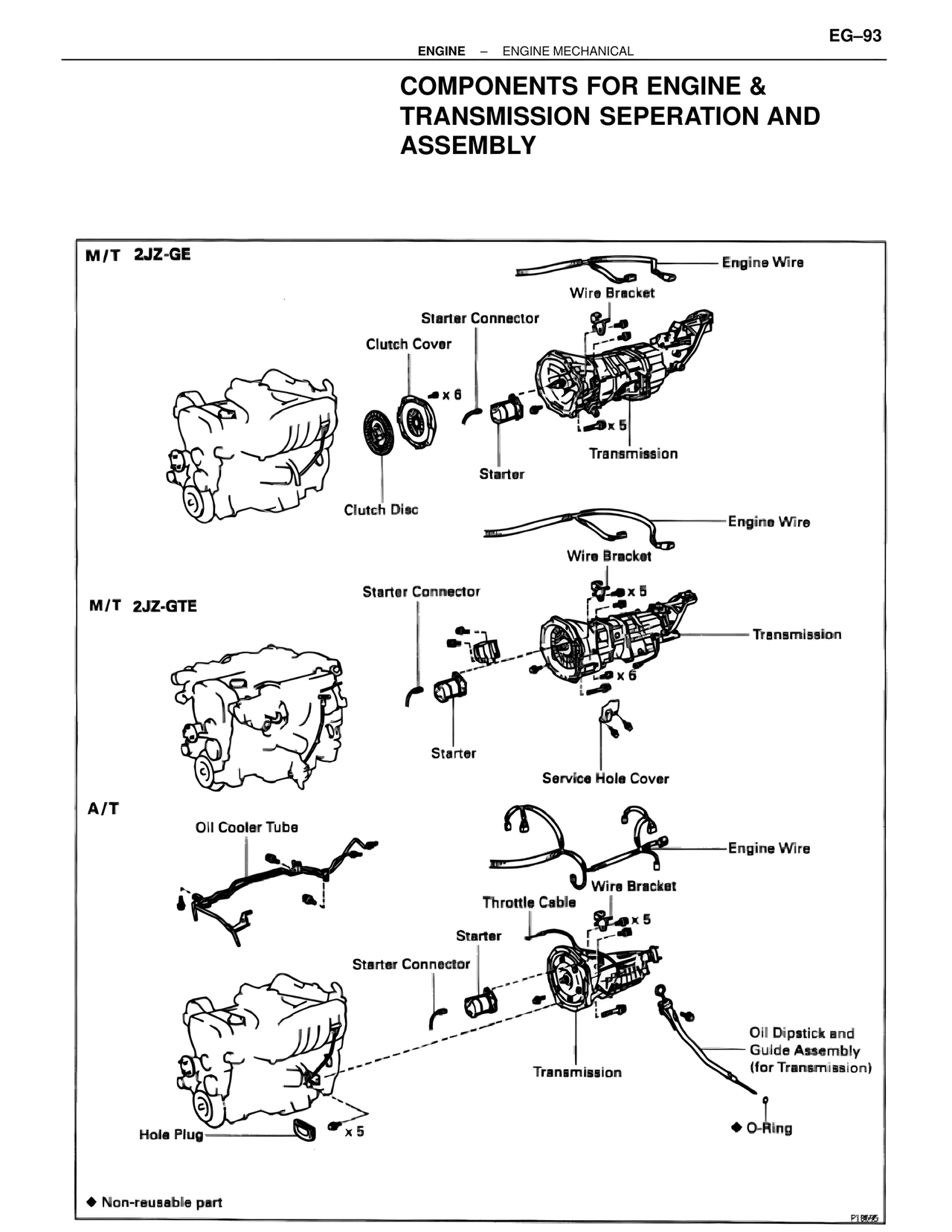

COMPONENTS FOR ENGINE &
TRANSMISSION SEPERATION AND
ASSEMBLY

M/T 2JZ-GE

Engine Wire
Wire Bracket
Starter Connector
Clutch Cover
x 6
x 5
Transmission
Starter
Clutch Disc

Engine Wire
Wire Bracket

M/T 2JZ-GTE

Starter Connector
x 5
Transmission
x 6
Starter
Service Hole Cover

A/T

Oil Cooler Tube
Engine Wire
Wire Bracket
Throttle Cable
x 5
Starter
Starter Connector
Transmission
Oil Dipstick and
Guide Assembly
(for Transmission)
Hole Plug
x 5
◆ O-Ring

◆ Non-reusable part

P18695
