EG–96
ENGINE – ENGINE MECHANICAL

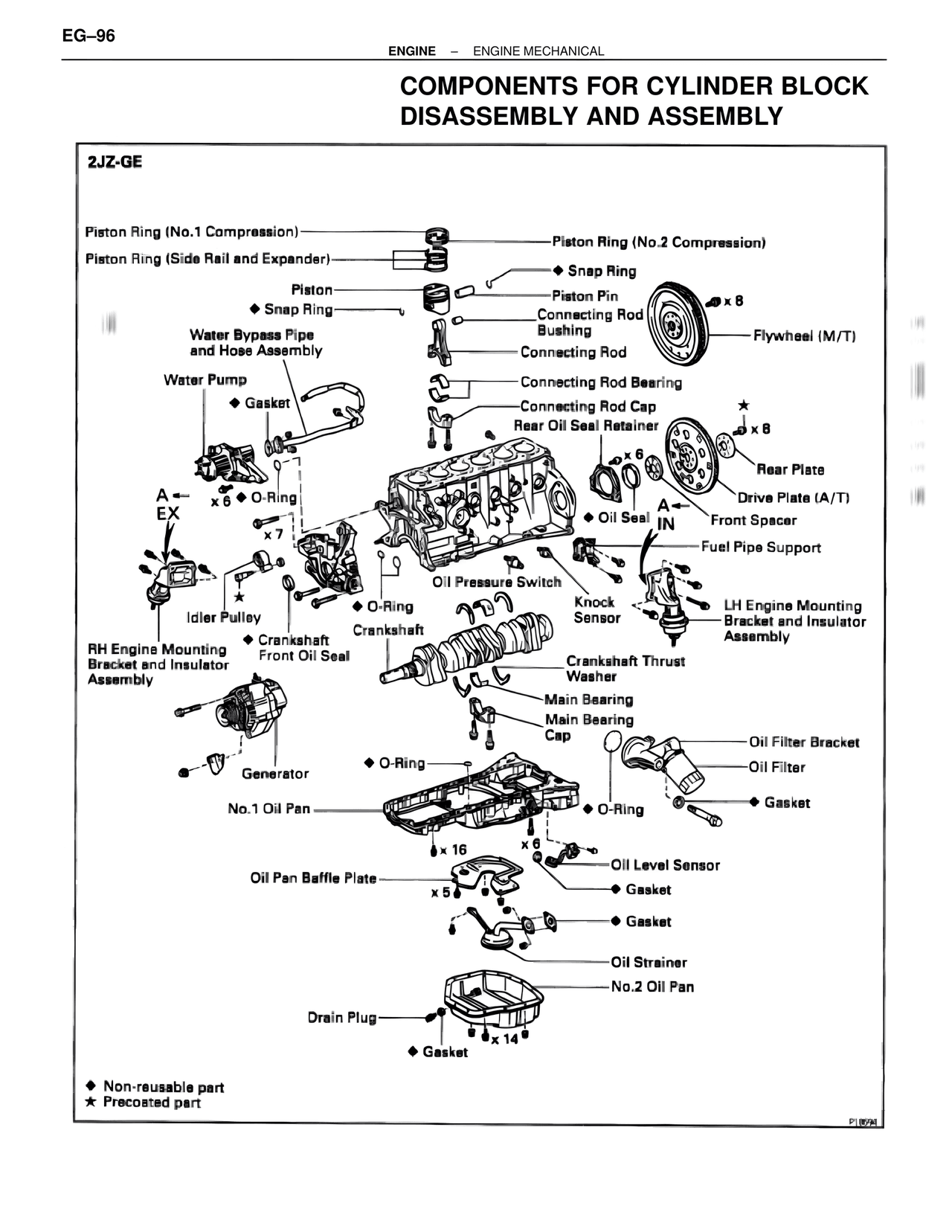

COMPONENTS FOR CYLINDER BLOCK
DISSASSEMBLY AND ASSEMBLY

2JZ-GE

Piston Ring (No.1 Compression)
Piston Ring (Side Rail and Expander)
Piston
♦ Snap Ring
Water Bypass Pipe
and Hose Assembly
Water Pump
♦ Gasket
A ←
EX
x 6 ♦ O-Ring
x 7
★
Idler Pulley
♦ Crankshaft
RH Engine Mounting
Front Oil Seal
Bracket and Insulator
Assembly
Generator
♦ O-Ring
No.1 Oil Pan
x 16
Oil Pan Baffle Plate
x 5
Drain Plug
♦ Gasket
x 14

Piston Ring (No.2 Compression)
♦ Snap Ring
Piston Pin
Connecting Rod
Bushing
Connecting Rod
Connecting Rod Bearing
Connecting Rod Cap
Rear Oil Seal Retainer
x 6
Oil Pressure Switch
♦ O-Ring
Crankshaft
Knock
Sensor
Crankshaft Thrust
Washer
Main Bearing
Main Bearing
Cap
♦ O-Ring
x 6
Oil Level Sensor
♦ Gasket
♦ Gasket
Oil Strainer
No.2 Oil Pan

♦ x 8
Flywheel (M/T)
★ x 8
Rear Plate
Drive Plate (A/T)
A
IN
♦ Oil Seal
Front Spacer
Fuel Pipe Support
LH Engine Mounting
Bracket and Insulator
Assembly
Oil Filter Bracket
Oil Filter
♦ Gasket

♦ Non-reusable part
★ Precoated part

P10594
