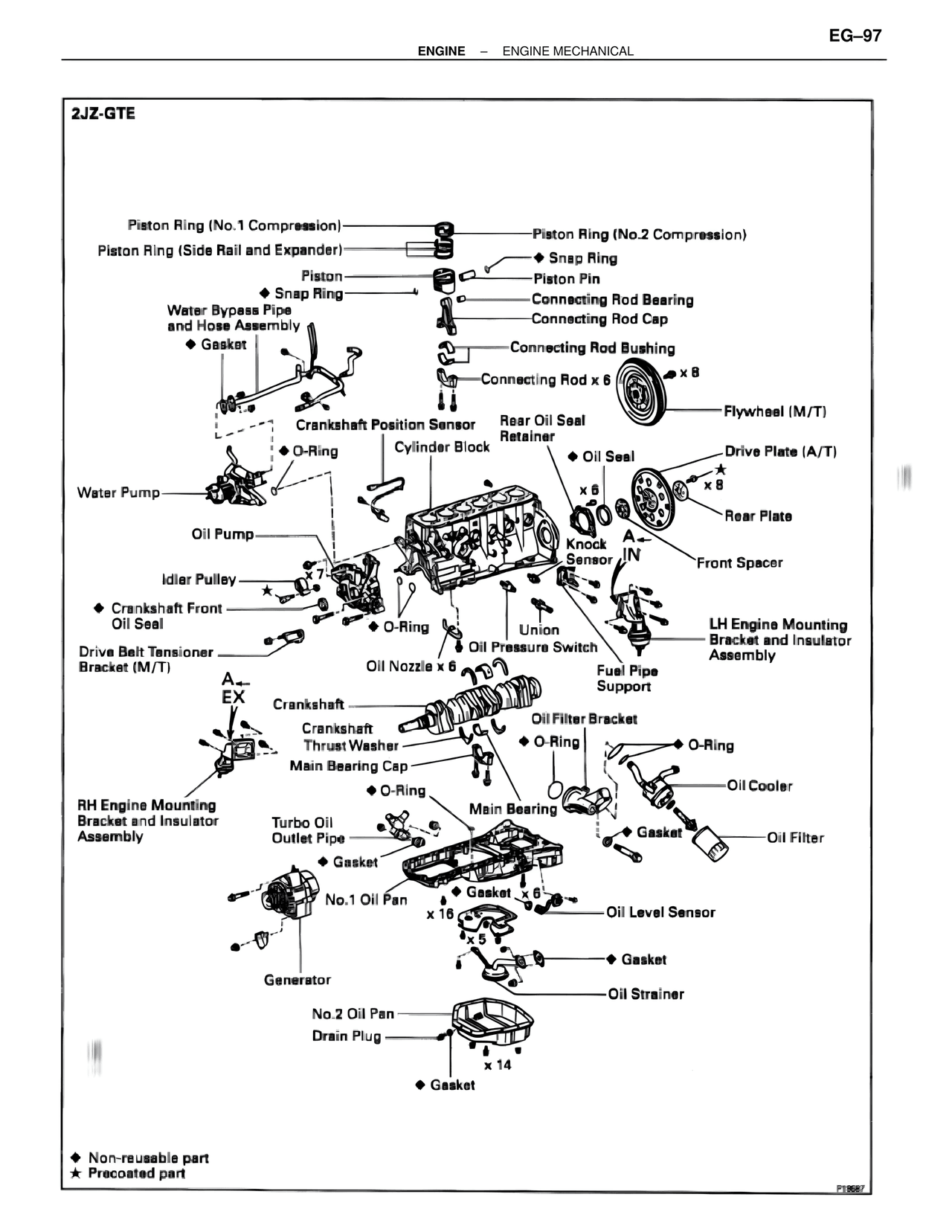

ENGINE – ENGINE MECHANICAL

2JZ-GTE

Piston Ring (No.1 Compression)
Piston Ring (Side Rail and Expander)
Piston
◆ Snap Ring
Water Bypass Pipe
and Hose Assembly
◆ Gasket

Piston Ring (No.2 Compression)
◆ Snap Ring
Piston Pin
Connecting Rod Bearing
Connecting Rod Cap
Connecting Rod Bushing
Connecting Rod x 6

x 8

Flywheel (M/T)

Crankshaft Position Sensor
Cylinder Block

Rear Oil Seal
Retainer
◆ Oil Seal

Drive Plate (A/T)
★ x 8

Rear Plate

◆ O-Ring
Water Pump

Knock
Sensor

A–
IN

Front Spacer

Oil Pump

Idler Pulley ★
◆ Crankshaft Front
Oil Seal

◆ O-Ring

Union
Oil Pressure Switch

LH Engine Mounting
Bracket and Insulator
Assembly

Drive Belt Tensioner
Bracket (M/T)

Oil Nozzle x 6

Fuel Pipe
Support

A–
EX

Crankshaft
Crankshaft
Thrust Washer
Main Bearing Cap
◆ O-Ring

Oil Filter Bracket
◆ O-Ring

◆ O-Ring

Oil Cooler

RH Engine Mounting
Bracket and Insulator
Assembly

Turbo Oil
Outlet Pipe
◆ Gasket

Main Bearing

◆ Gasket

Oil Filter

No.1 Oil Pan
x 16

◆ Gasket
◆ Gasket x 6

Oil Level Sensor

x 5

◆ Gasket

Generator

Oil Strainer

No.2 Oil Pan
Drain Plug

x 14

◆ Gasket

◆ Non-reusable part
★ Precoated part
