LU-19

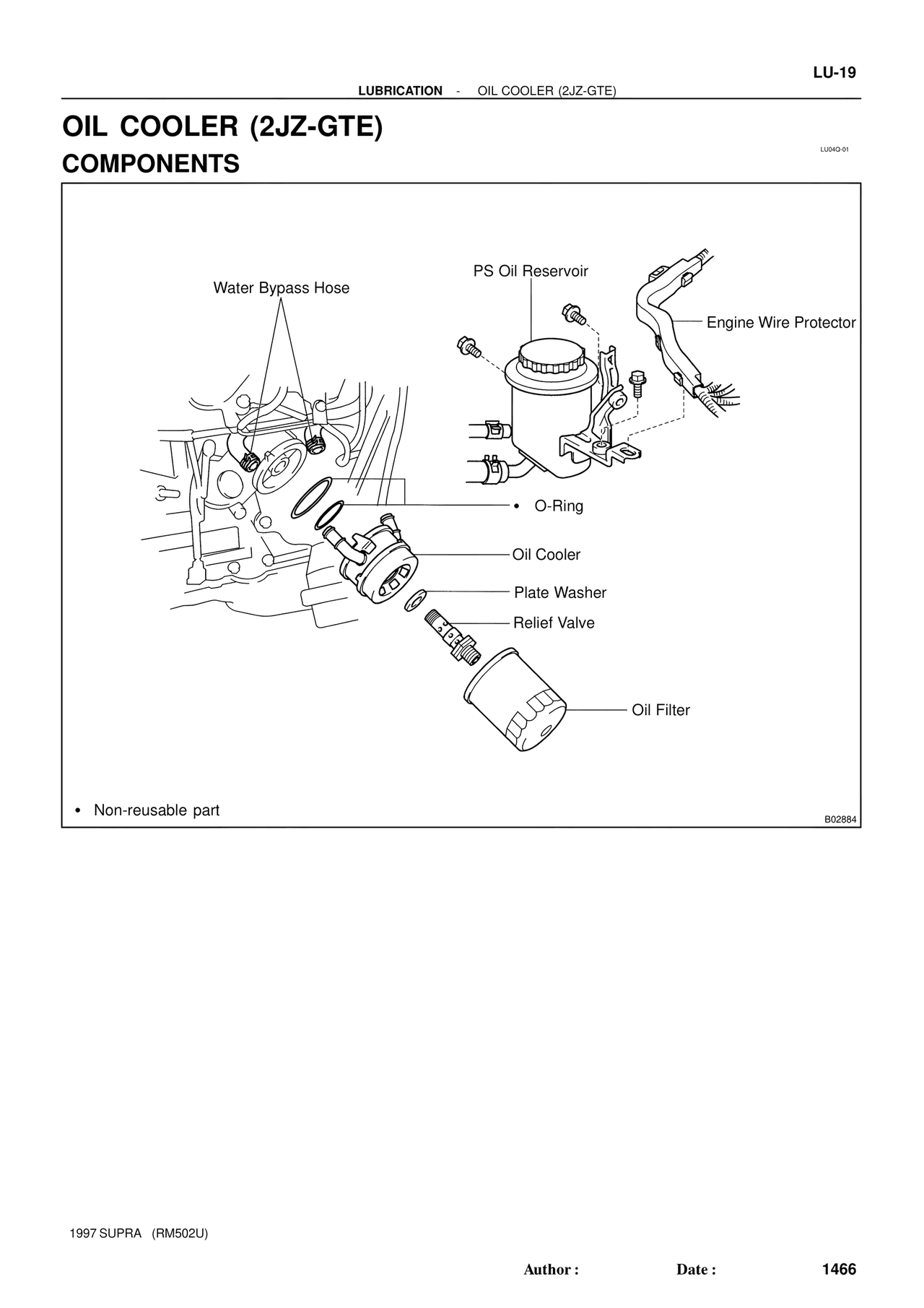

LUBRICATION - OIL COOLER (2JZ-GTE)

OIL COOLER (2JZ-GTE)
COMPONENTS

LU04Q-01

Water Bypass Hose

PS Oil Reservoir

Engine Wire Protector

O-Ring

Oil Cooler

Plate Washer

Relief Valve

Oil Filter

• Non-reusable part

B02884

1997 SUPRA (RM502U)

Author :          Date :          1466
