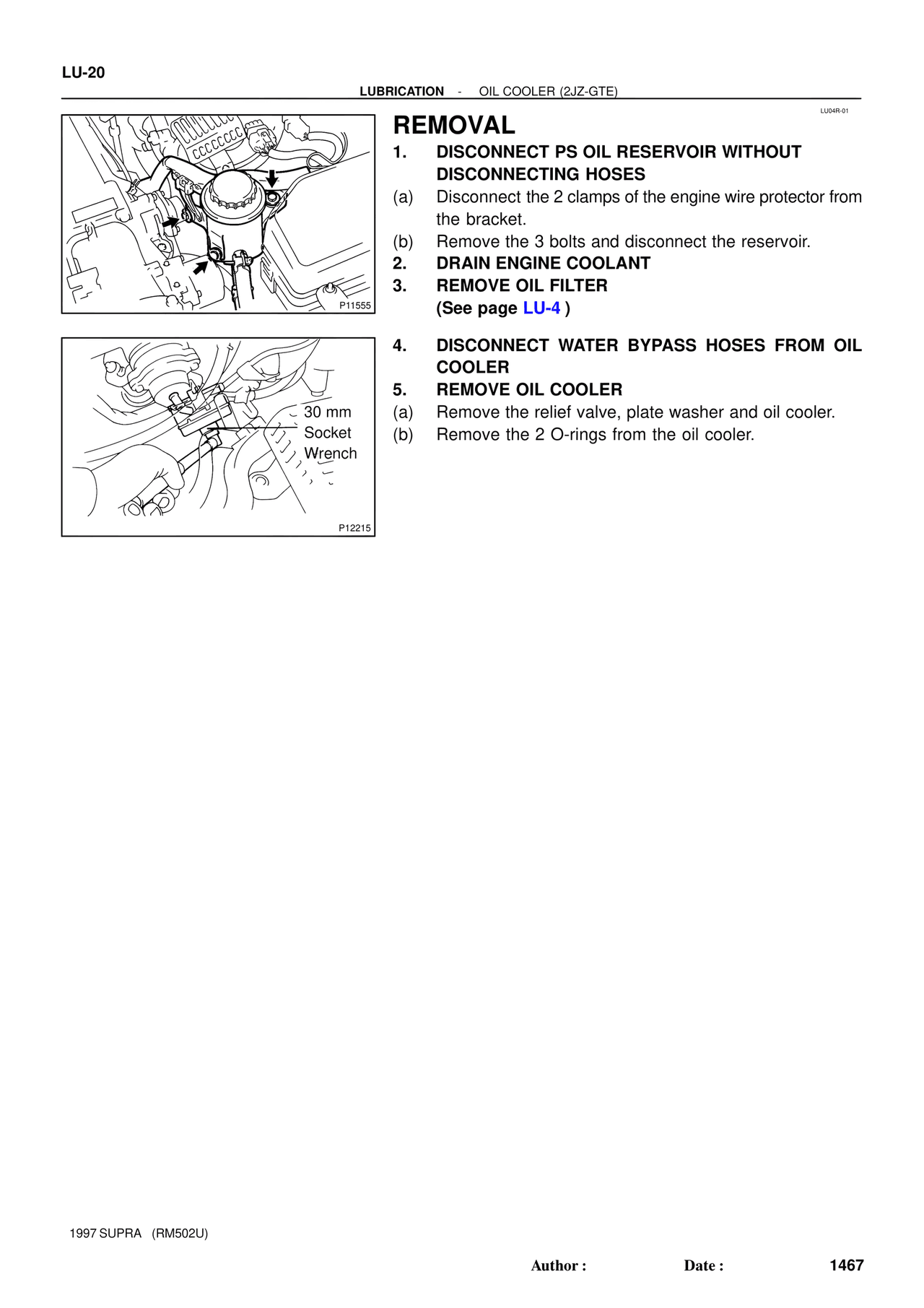

LUBRICATION - OIL COOLER (2JZ-GTE)
LU04R-01
REMOVAL
1. DISCONNECT PS OIL RESERVOIR WITHOUT DISCONNECTING HOSES
(a) Disconnect the 2 clamps of the engine wire protector from the bracket.
(b) Remove the 3 bolts and disconnect the reservoir.
2. DRAIN ENGINE COOLANT
3. REMOVE OIL FILTER
(See page LU-4 )
4. DISCONNECT WATER BYPASS HOSES FROM OIL COOLER
5. REMOVE OIL COOLER
(a) Remove the relief valve, plate washer and oil cooler.
(b) Remove the 2 O-rings from the oil cooler.
P11555
30 mm
Socket
Wrench
P12215
