LU-24
LUBRICATION - OIL NOZZLE (2JZ-GTE)
LU052-01
5 mm
Hexagon
Wrench
P11778

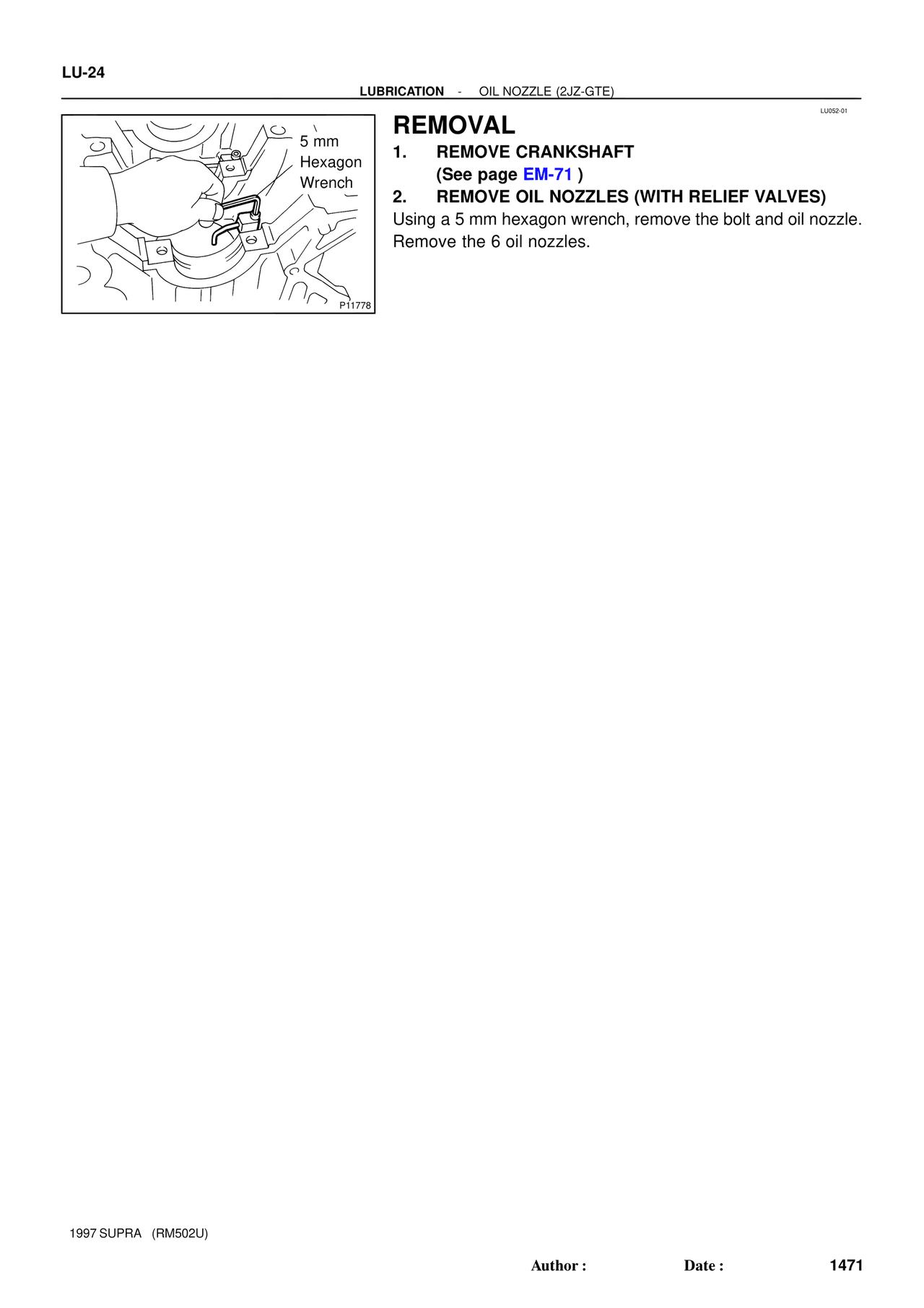

REMOVAL
1. REMOVE CRANKSHAFT
(See page EM-71 )
2. REMOVE OIL NOZZLES (WITH RELIEF VALVES)
Using a 5 mm hexagon wrench, remove the bolt and oil nozzle.
Remove the 6 oil nozzles.
1997 SUPRA (RM502U)
Author : Date : 1471
