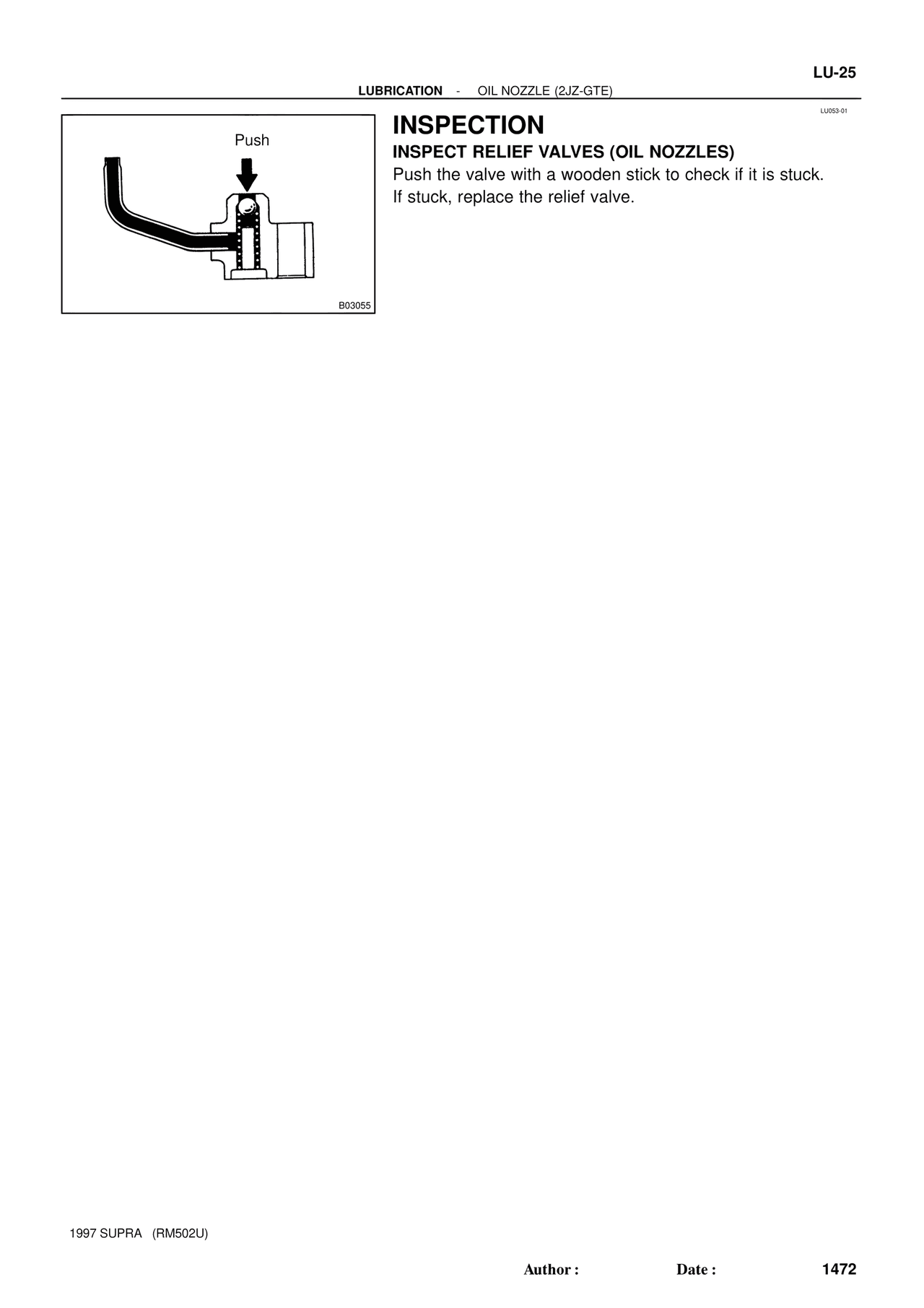

LU-25 LUBRICATION - OIL NOZZLE (2JZ-GTE) LU053-01 Push B03055 INSPECTION INSPECT RELIEF VALVES (OIL NOZZLES) Push the valve with a wooden stick to check if it is stuck. If stuck, replace the relief valve. 1997 SUPRA (RM502U) Author : Date : 1472
