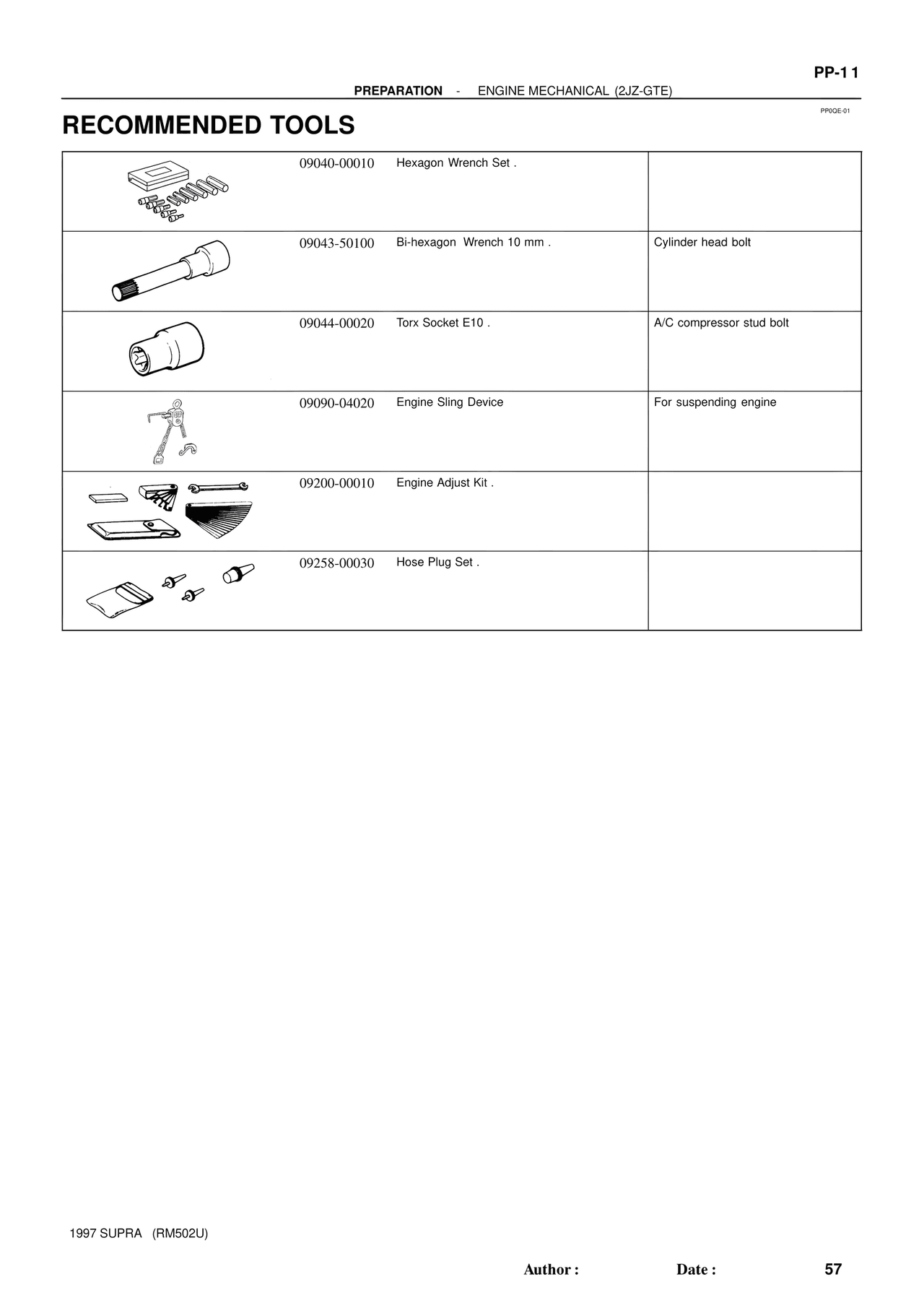

RECOMMENDED TOOLS — MK4 Supra Engine Mechanical 1997 Supplement, page 113
100%
PP-11 PREPARATION - ENGINE MECHANICAL (2JZ-GTE) PP0QE-01 RECOMMENDED TOOLS 09040-00010 Hexagon Wrench Set . 09043-50100 Bi-hexagon Wrench 10 mm . Cylinder head bolt 09044-00020 Torx Socket E10 . A/C compressor stud bolt 09090-04020 Engine Sling Device For suspending engine 09200-00010 Engine Adjust Kit . 09258-00030 Hose Plug Set . 1997 SUPRA (RM502U) Author : Date : 57
