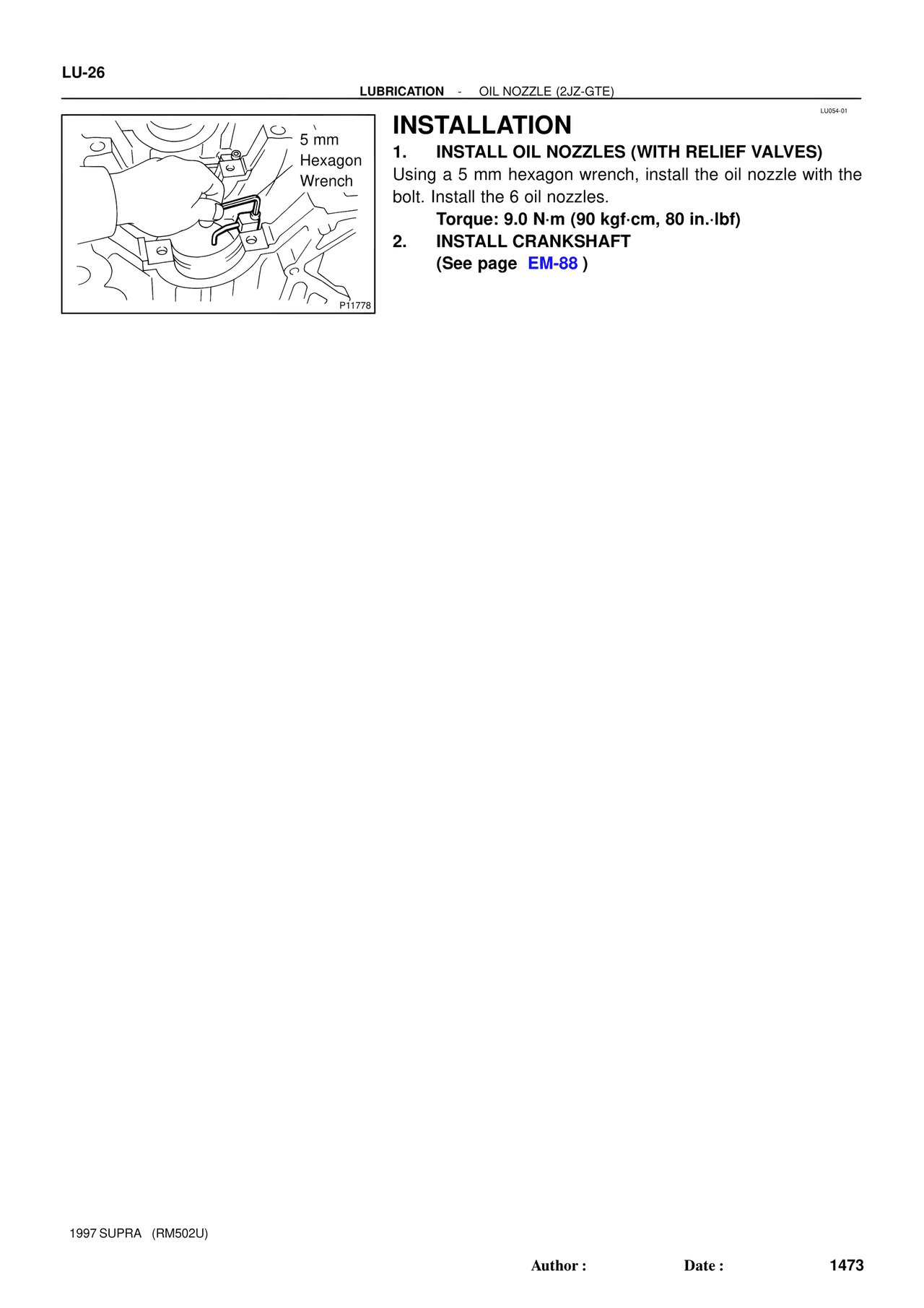

LU-26 LUBRICATION - OIL NOZZLE (2JZ-GTE) LU054-01 5 mm Hexagon Wrench P11778 INSTALLATION 1. INSTALL OIL NOZZLES (WITH RELIEF VALVES) Using a 5 mm hexagon wrench, install the oil nozzle with the bolt. Install the 6 oil nozzles. Torque: 9.0 N·m (90 kgf·cm, 80 in.·lbf) 2. INSTALL CRANKSHAFT (See page EM-88 ) 1997 SUPRA (RM502U) Author : Date : 1473
