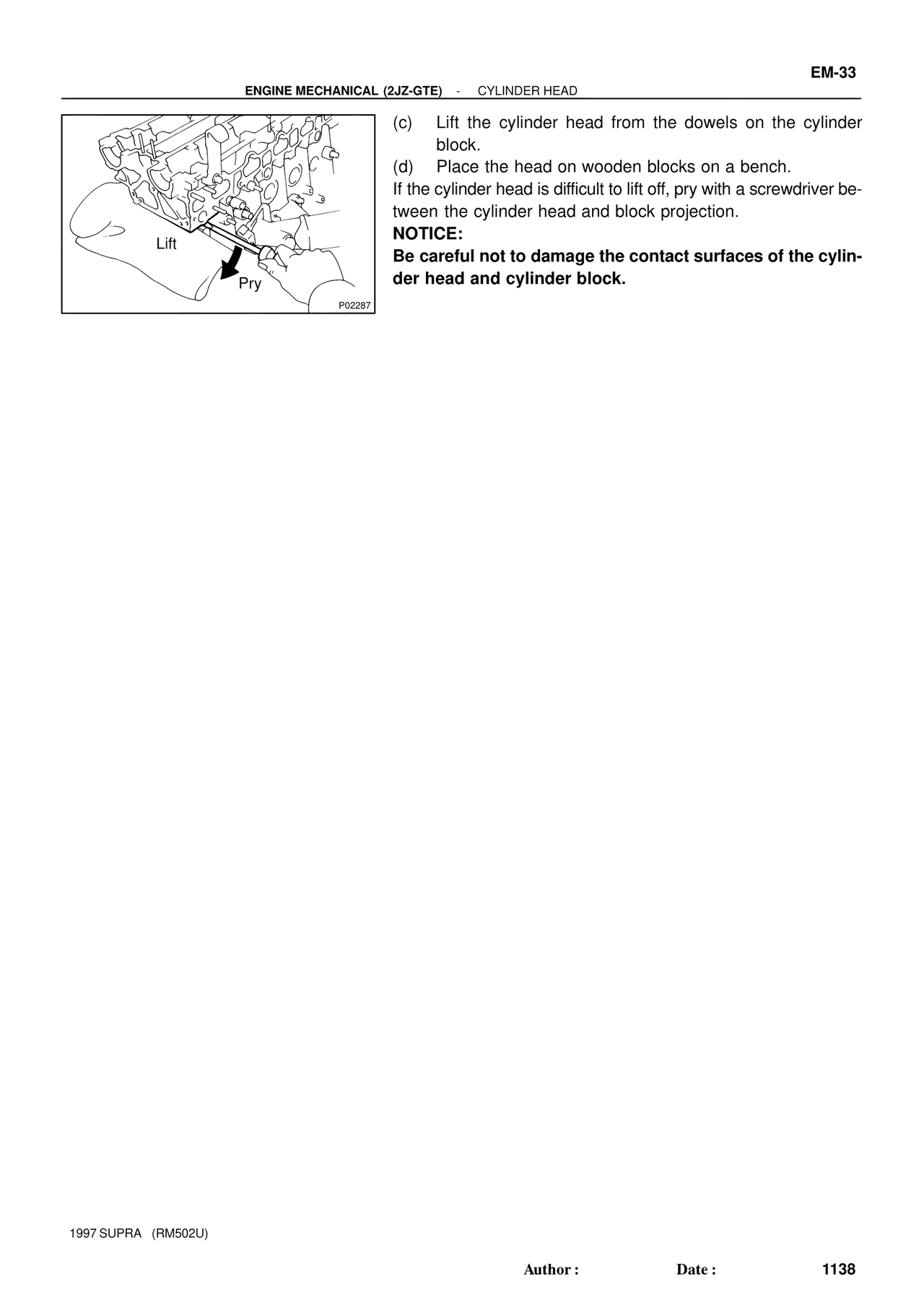

EM-33
ENGINE MECHANICAL (2JZ-GTE)  -  CYLINDER HEAD

Lift
Pry
P02287

(c)  Lift the cylinder head from the dowels on the cylinder block.
(d)  Place the head on wooden blocks on a bench.
If the cylinder head is difficult to lift off, pry with a screwdriver between the cylinder head and block projection.
NOTICE:
Be careful not to damage the contact surfaces of the cylinder head and cylinder block.

1997 SUPRA  (RM502U)
Author :          Date :          1138
