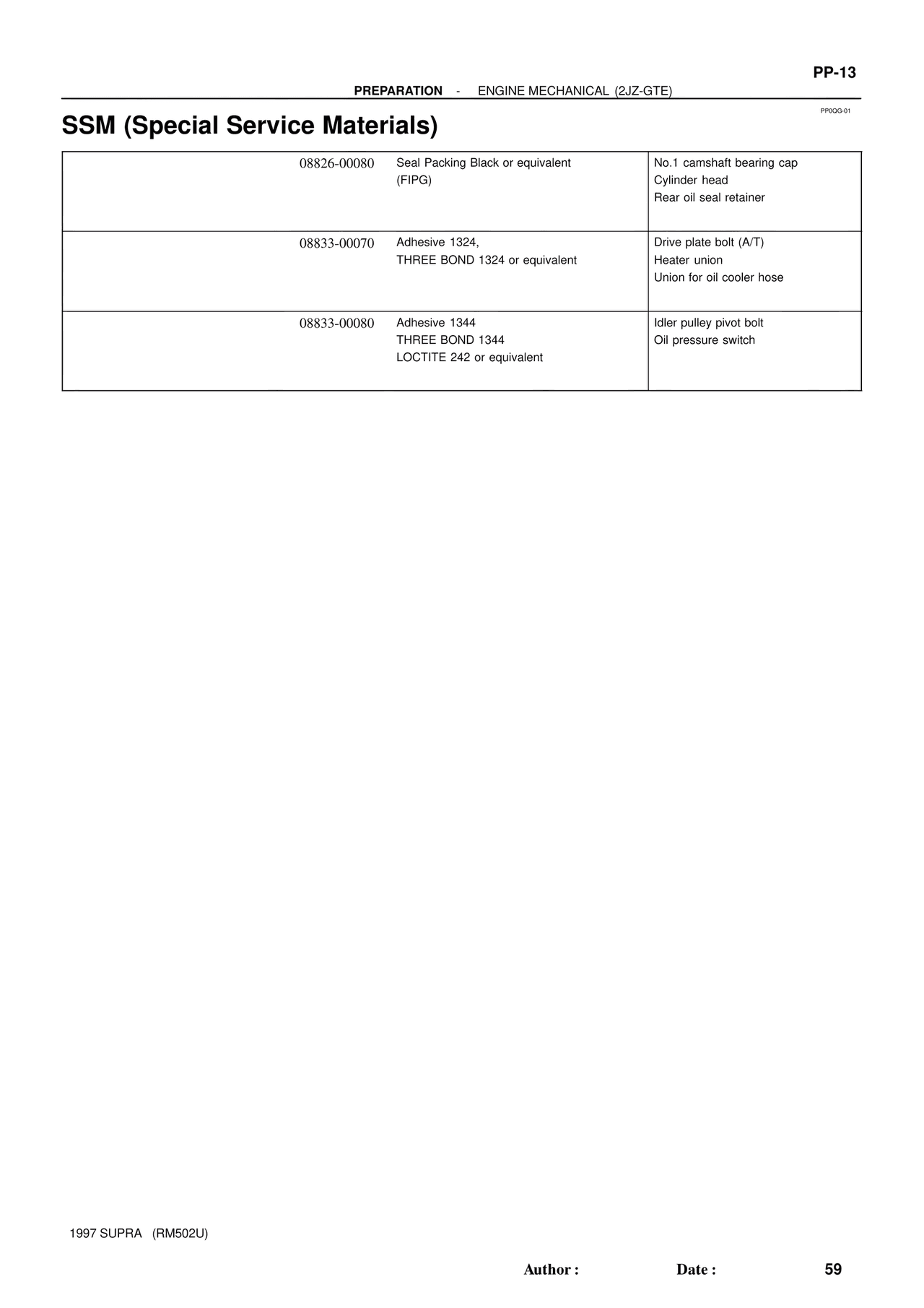

EMS/Engine Mechanical 1997 Supplement — Ssm (Special Service Materials), page 123

PP-13

PREPARATION  -  ENGINE MECHANICAL (2JZ-GTE)

PP0QG-01

SSM (Special Service Materials)

08826-00080    Seal Packing Black or equivalent    No.1 camshaft bearing cap
               (FIPG)                              Cylinder head
                                                   Rear oil seal retainer

08833-00070    Adhesive 1324,                      Drive plate bolt (A/T)
               THREE BOND 1324 or equivalent       Heater union
                                                   Union for oil cooler hose

08833-00080    Adhesive 1344                       Idler pulley pivot bolt
               THREE BOND 1344                     Oil pressure switch
               LOCTITE 242 or equivalent

1997 SUPRA  (RM502U)

Author :          Date :          59
