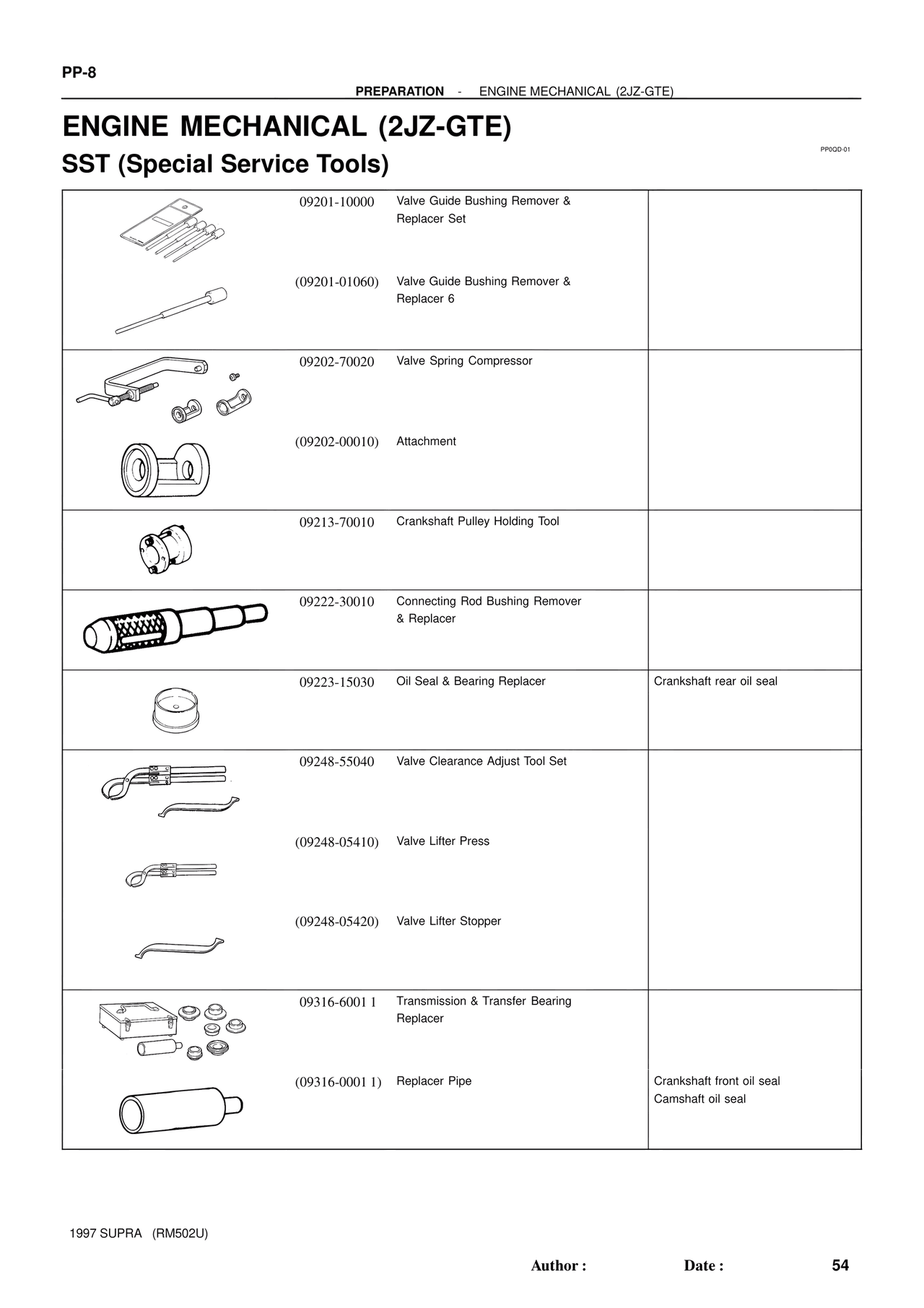

EMS/Engine Mechanical 1997 Supplement — Engine Mechanical (2JZ-GTE), page 124

PP-8

PREPARATION - ENGINE MECHANICAL (2JZ-GTE)

ENGINE MECHANICAL (2JZ-GTE)

SST (Special Service Tools)

PP0QD-01

09201-10000    Valve Guide Bushing Remover &
               Replacer Set

(09201-01060)  Valve Guide Bushing Remover &
               Replacer 6

09202-70020    Valve Spring Compressor

(09202-00010)  Attachment

09213-70010    Crankshaft Pulley Holding Tool

09222-30010    Connecting Rod Bushing Remover
               & Replacer

09223-15030    Oil Seal & Bearing Replacer       Crankshaft rear oil seal

09248-55040    Valve Clearance Adjust Tool Set

(09248-05410)  Valve Lifter Press

(09248-05420)  Valve Lifter Stopper

09316-60011    Transmission & Transfer Bearing
               Replacer

(09316-00011)  Replacer Pipe                     Crankshaft front oil seal
                                                 Camshaft oil seal

1997 SUPRA  (RM502U)

Author :        Date :        54
