EM-48
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER HEAD
Knock Pin
Up
Up
Knock
Pin
P02362

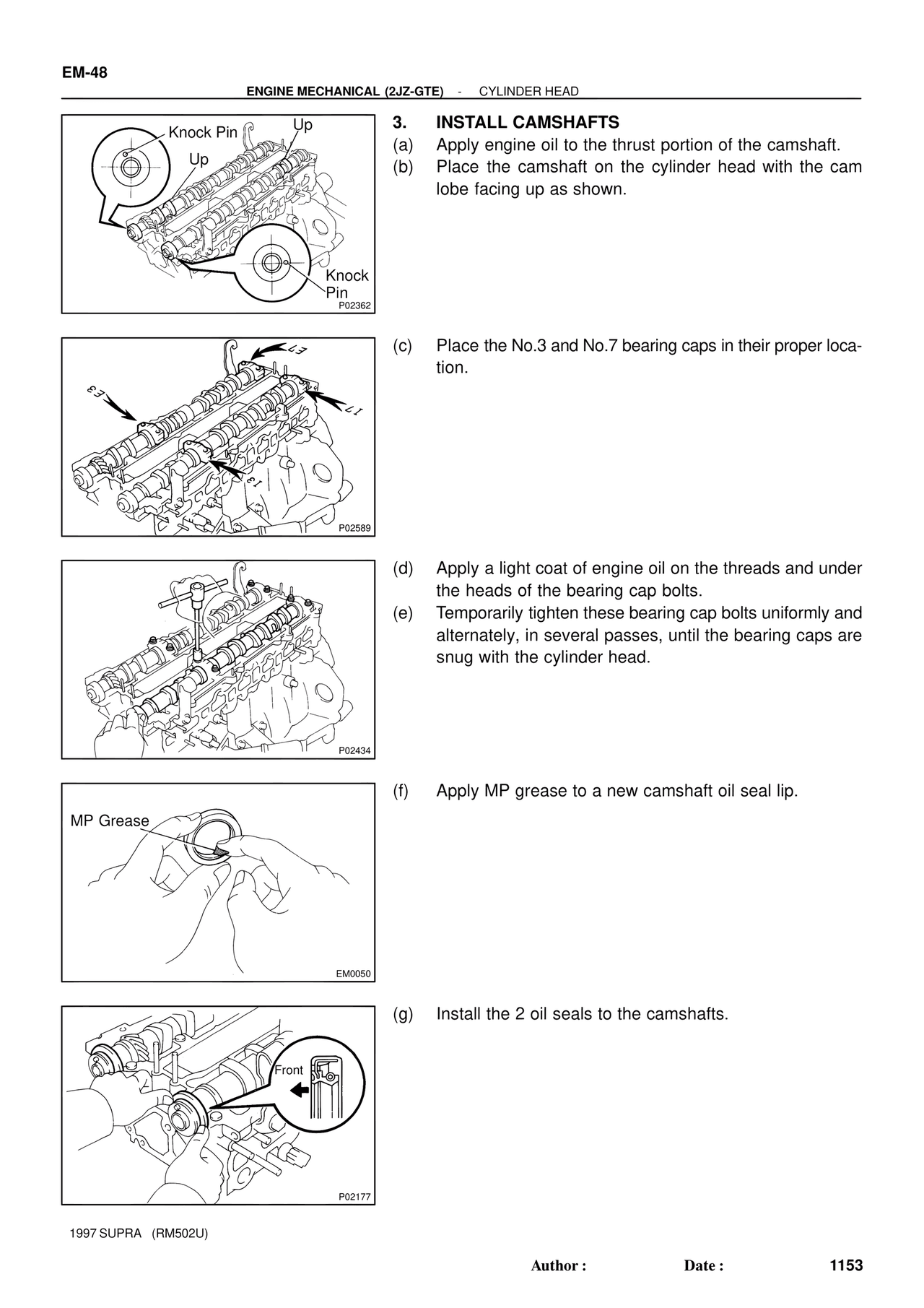

3. INSTALL CAMSHAFTS
(a) Apply engine oil to the thrust portion of the camshaft.
(b) Place the camshaft on the cylinder head with the cam
lobe facing up as shown.
P02589
(c) Place the No.3 and No.7 bearing caps in their proper loca-
tion.
P02434
(d) Apply a light coat of engine oil on the threads and under
the heads of the bearing cap bolts.
(e) Temporarily tighten these bearing cap bolts uniformly and
alternately, in several passes, until the bearing caps are
snug with the cylinder head.
MP Grease
EM0050
(f) Apply MP grease to a new camshaft oil seal lip.
Front
P02177
(g) Install the 2 oil seals to the camshafts.
1997 SUPRA (RM502U)
Author : Date : 1153
