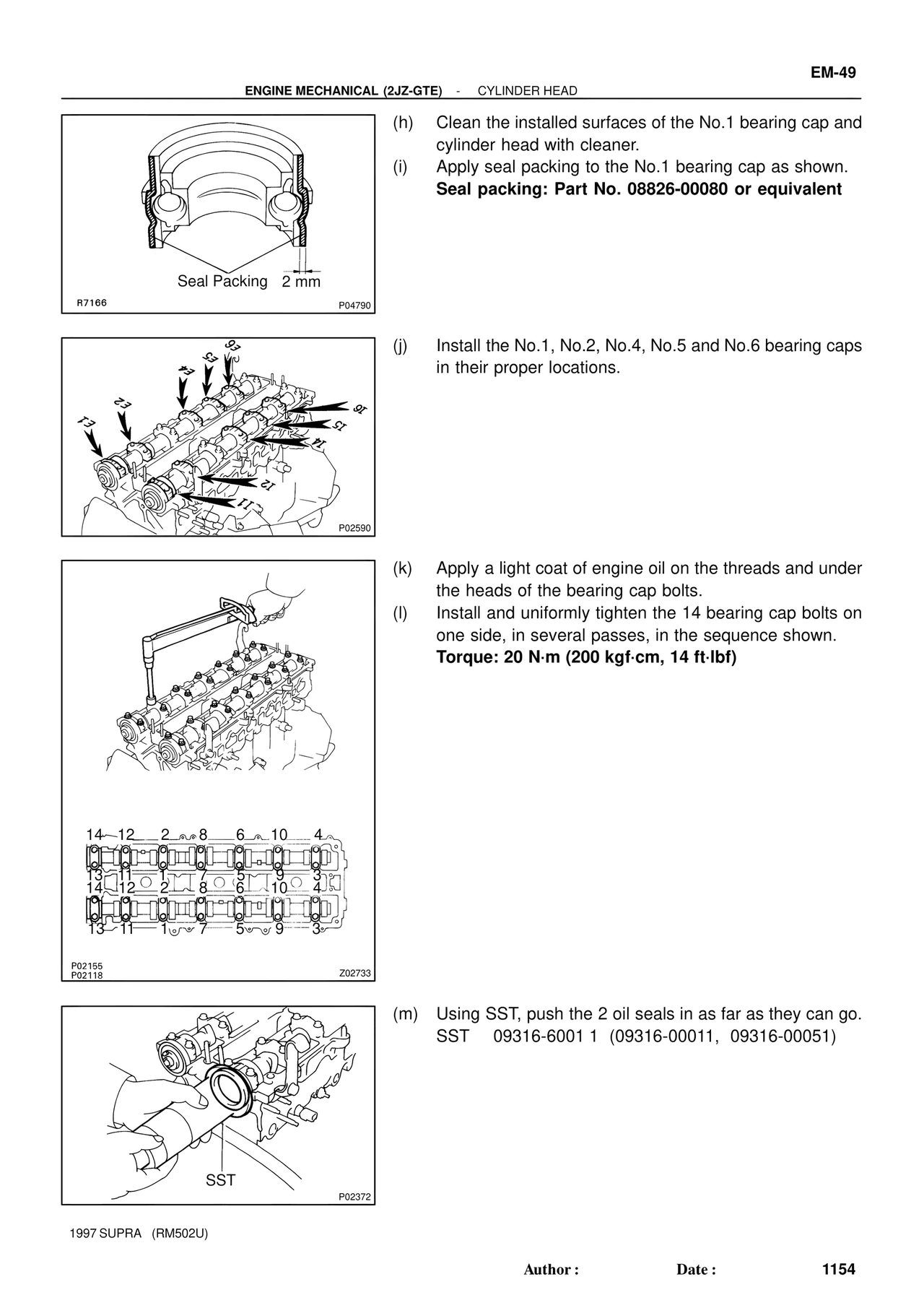

EM-49
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER HEAD
Seal Packing 2 mm
R7166 P04790
(h) Clean the installed surfaces of the No.1 bearing cap and
cylinder head with cleaner.
(i) Apply seal packing to the No.1 bearing cap as shown.
Seal packing: Part No. 08826-00080 or equivalent
P02590
(j) Install the No.1, No.2, No.4, No.5 and No.6 bearing caps
in their proper locations.
(k) Apply a light coat of engine oil on the threads and under
the heads of the bearing cap bolts.
(l) Install and uniformly tighten the 14 bearing cap bolts on
one side, in several passes, in the sequence shown.
Torque: 20 N·m (200 kgf·cm, 14 ft·lbf)
14 12 2 8 6 10 4
14 12 2 8 6 10 4
13 11 1 7 5 9 3
P02155
P02118 Z02733
(m) Using SST, push the 2 oil seals in as far as they can go.
SST 09316-6001 1 (09316-00011, 09316-00051)
SST
P02372
1997 SUPRA (RM502U)
