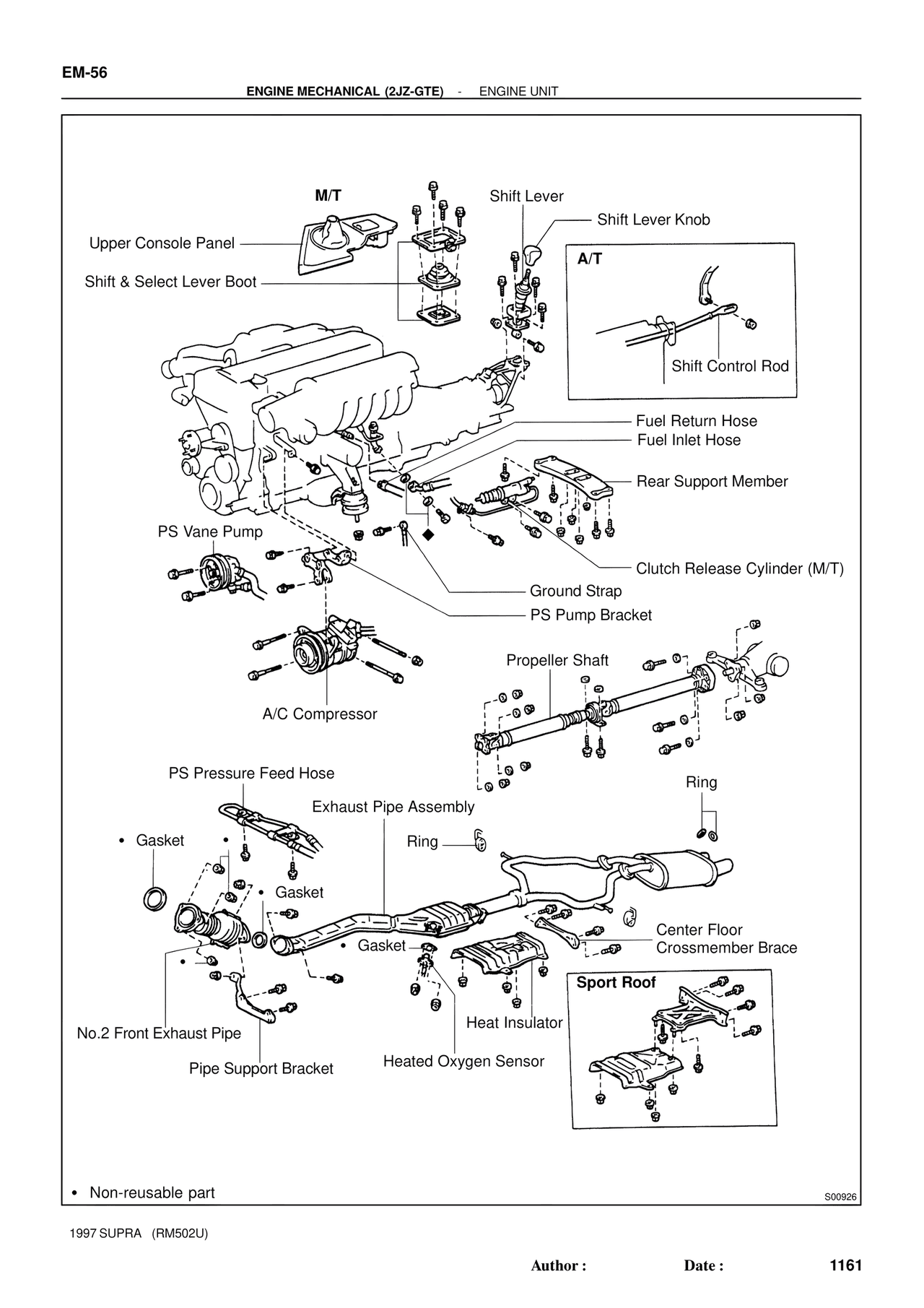

EM-56
ENGINE MECHANICAL (2JZ-GTE) - ENGINE UNIT
M/T
Shift Lever
Shift Lever Knob
Upper Console Panel
Shift & Select Lever Boot
A/T
Shift Control Rod
Fuel Return Hose
Fuel Inlet Hose
Rear Support Member
PS Vane Pump
Clutch Release Cylinder (M/T)
Ground Strap
PS Pump Bracket
Propeller Shaft
A/C Compressor
Ring
PS Pressure Feed Hose
Exhaust Pipe Assembly
• Gasket
• Gasket
Ring
• Gasket
Center Floor
Crossmember Brace
No.2 Front Exhaust Pipe
Pipe Support Bracket
Heat Insulator
Heated Oxygen Sensor
Sport Roof
• Non-reusable part
S00926
1997 SUPRA (RM502U)
Author : Date : 1161
