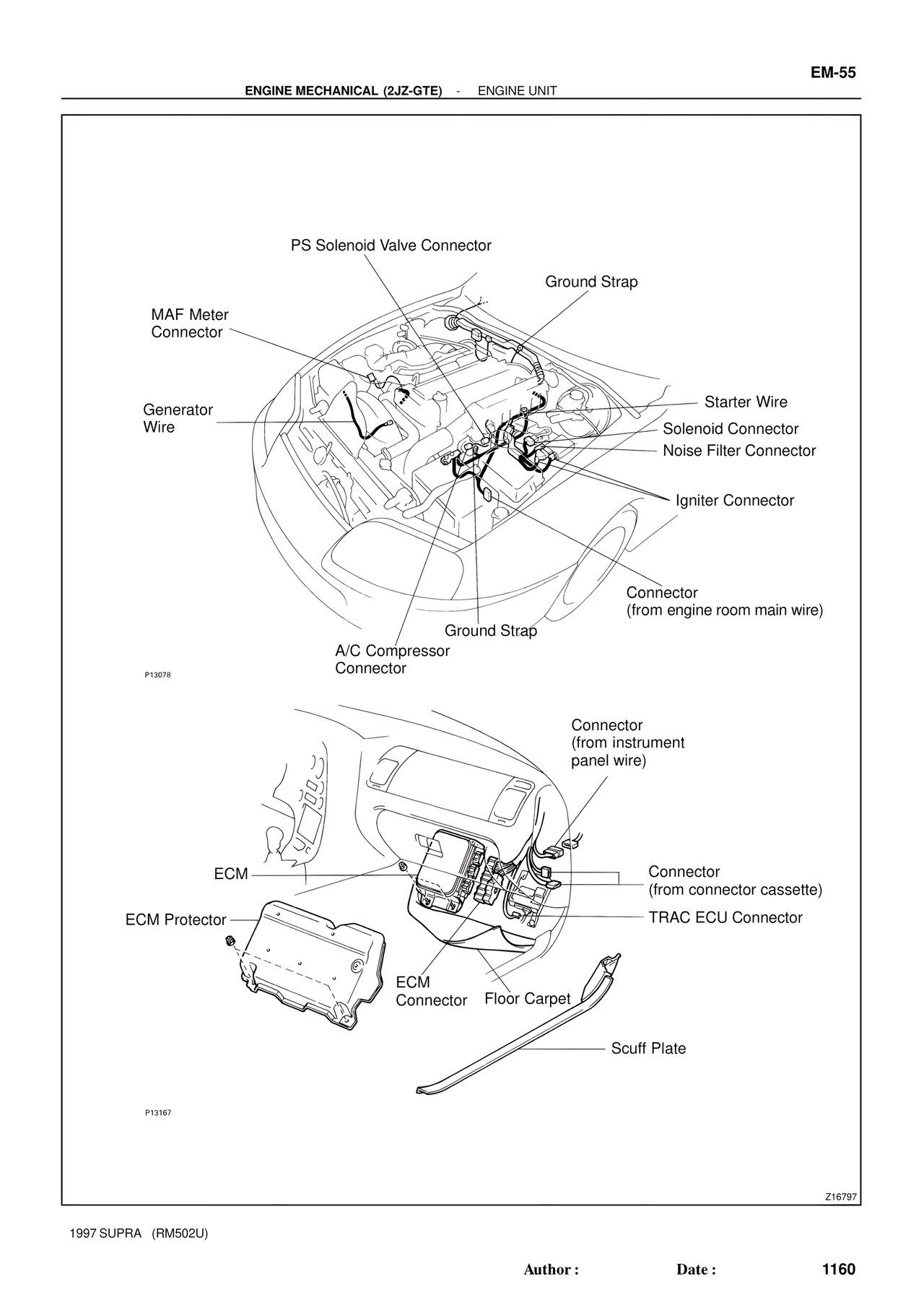

EM-55
ENGINE MECHANICAL (2JZ-GTE) - ENGINE UNIT
PS Solenoid Valve Connector
Ground Strap
MAF Meter
Connector
Starter Wire
Generator
Wire
Solenoid Connector
Noise Filter Connector
Igniter Connector
Connector
(from engine room main wire)
Ground Strap
A/C Compressor
Connector
P13078
Connector
(from instrument
panel wire)
ECM
Connector
(from connector cassette)
ECM Protector
TRAC ECU Connector
ECM
Connector
Floor Carpet
Scuff Plate
P13167
Z16797
1997 SUPRA (RM502U)
Author : Date : 1160
