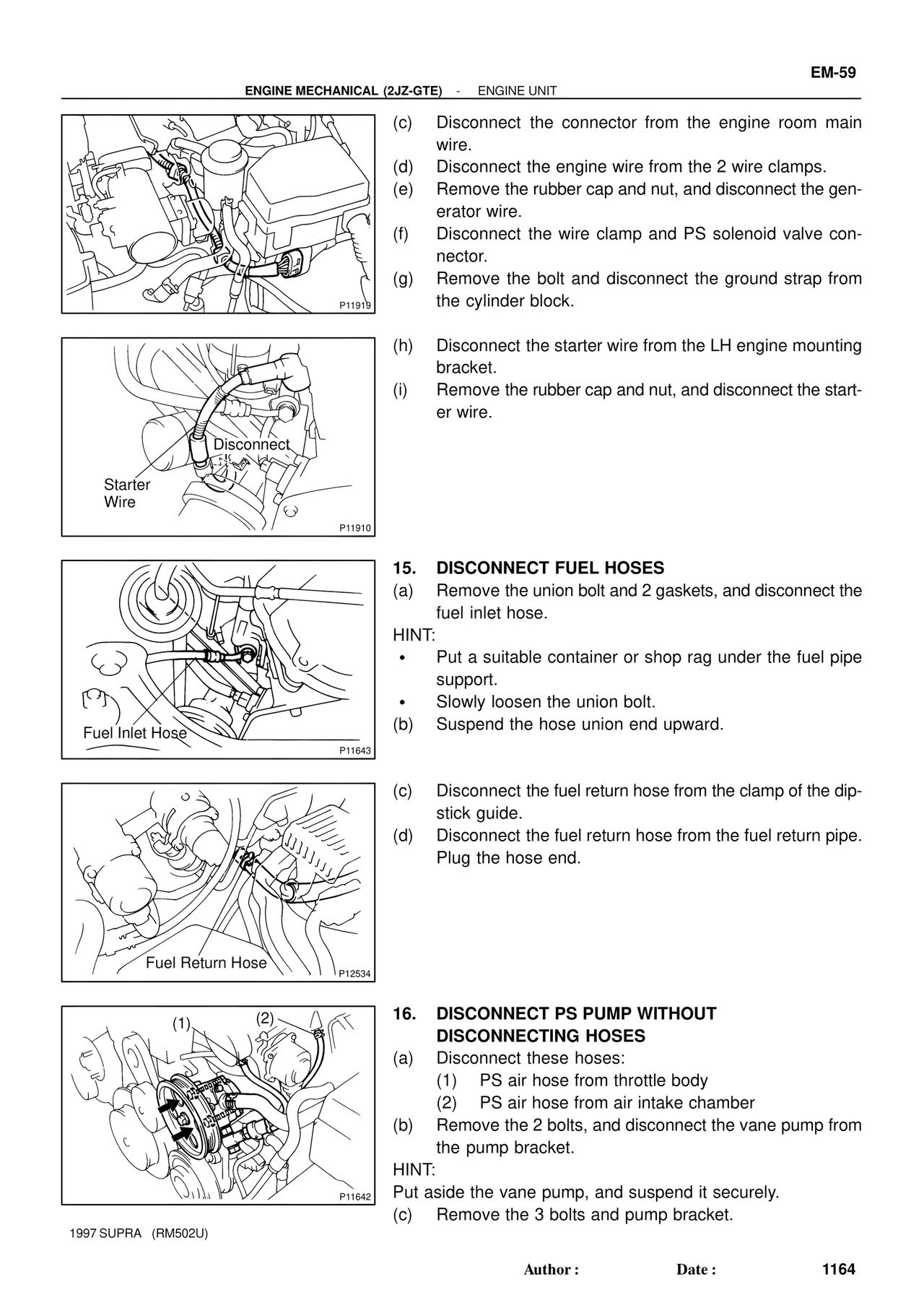

EM-59
ENGINE MECHANICAL (2JZ-GTE) - ENGINE UNIT
P11919
(c) Disconnect the connector from the engine room main wire.
(d) Disconnect the engine wire from the 2 wire clamps.
(e) Remove the rubber cap and nut, and disconnect the generator wire.
(f) Disconnect the wire clamp and PS solenoid valve connector.
(g) Remove the bolt and disconnect the ground strap from the cylinder block.
P11910
Disconnect
Starter Wire
(h) Disconnect the starter wire from the LH engine mounting bracket.
(i) Remove the rubber cap and nut, and disconnect the starter wire.
15. DISCONNECT FUEL HOSES
(a) Remove the union bolt and 2 gaskets, and disconnect the fuel inlet hose.
HINT:
• Put a suitable container or shop rag under the fuel pipe support.
• Slowly loosen the union bolt.
(b) Suspend the hose union end upward.
Fuel Inlet Hose
P11643
(c) Disconnect the fuel return hose from the clamp of the dipstick guide.
(d) Disconnect the fuel return hose from the fuel return pipe. Plug the hose end.
Fuel Return Hose
P12534
16. DISCONNECT PS PUMP WITHOUT DISCONNECTING HOSES
(1) (2)
(a) Disconnect these hoses:
(1) PS air hose from throttle body
(2) PS air hose from air intake chamber
(b) Remove the 2 bolts, and disconnect the vane pump from the pump bracket.
HINT:
Put aside the vane pump, and suspend it securely.
(c) Remove the 3 bolts and pump bracket.
P11642
1997 SUPRA (RM502U)
