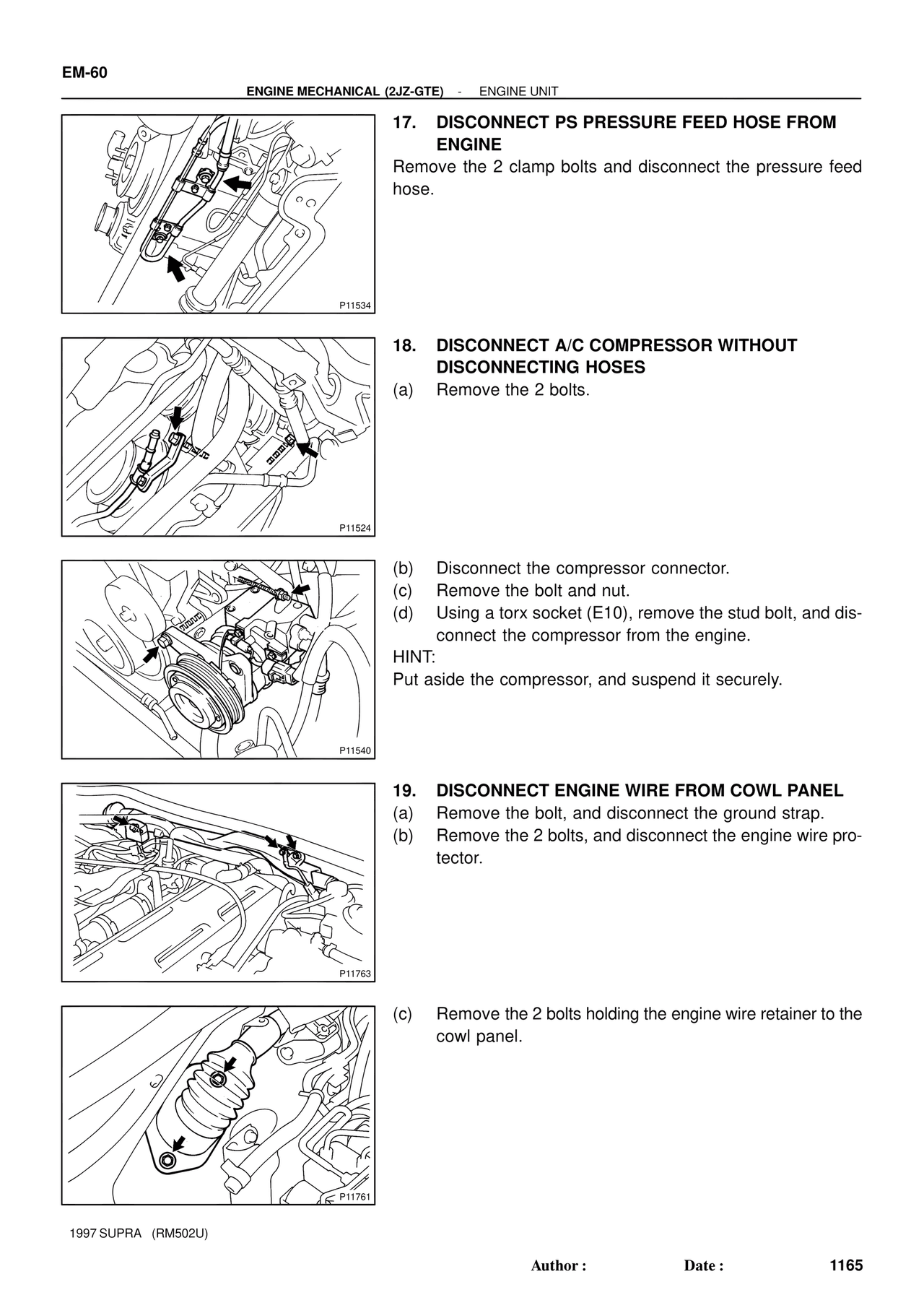

EM-60
ENGINE MECHANICAL (2JZ-GTE) - ENGINE UNIT
17. DISCONNECT PS PRESSURE FEED HOSE FROM ENGINE
Remove the 2 clamp bolts and disconnect the pressure feed hose.
P11534
18. DISCONNECT A/C COMPRESSOR WITHOUT DISCONNECTING HOSES
(a) Remove the 2 bolts.
P11524
(b) Disconnect the compressor connector.
(c) Remove the bolt and nut.
(d) Using a torx socket (E10), remove the stud bolt, and disconnect the compressor from the engine.
HINT:
Put aside the compressor, and suspend it securely.
P11540
19. DISCONNECT ENGINE WIRE FROM COWL PANEL
(a) Remove the bolt, and disconnect the ground strap.
(b) Remove the 2 bolts, and disconnect the engine wire protector.
P11763
(c) Remove the 2 bolts holding the engine wire retainer to the cowl panel.
P11761
1997 SUPRA (RM502U)
Author : Date : 1165
