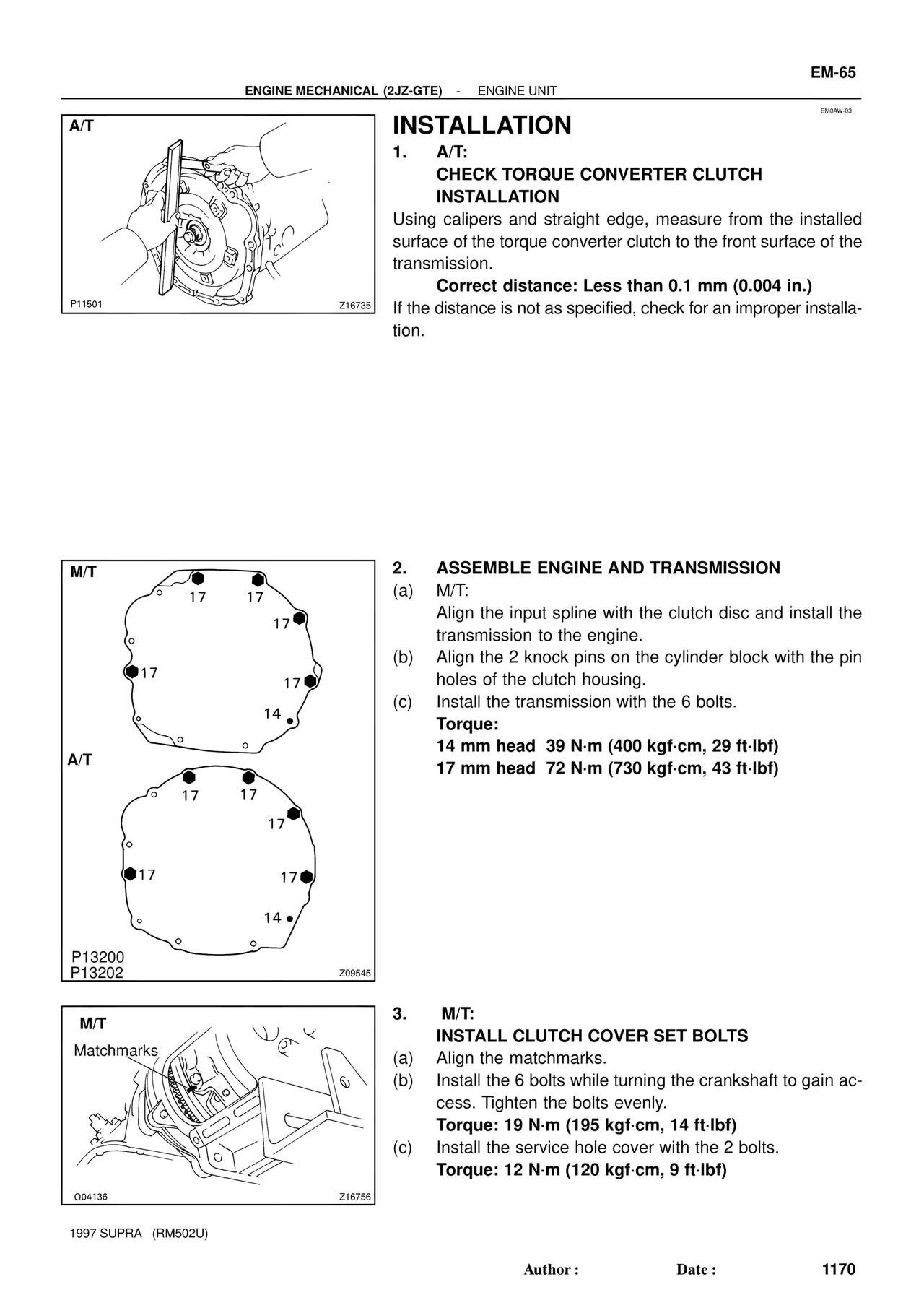

EM-65
ENGINE MECHANICAL (2JZ-GTE) - ENGINE UNIT
EM0AW-03
A/T
P11501 Z16735
INSTALLATION
1. A/T:
CHECK TORQUE CONVERTER CLUTCH
INSTALLATION
Using calipers and straight edge, measure from the installed
surface of the torque converter clutch to the front surface of the
transmission.
Correct distance: Less than 0.1 mm (0.004 in.)
If the distance is not as specified, check for an improper installa-
tion.
M/T
17 17
17
17
17
14
A/T
17 17
17
17
17
14
P13200
P13202 Z09545
2. ASSEMBLE ENGINE AND TRANSMISSION
(a) M/T:
Align the input spline with the clutch disc and install the
transmission to the engine.
(b) Align the 2 knock pins on the cylinder block with the pin
holes of the clutch housing.
(c) Install the transmission with the 6 bolts.
Torque:
14 mm head 39 N·m (400 kgf·cm, 29 ft·lbf)
17 mm head 72 N·m (730 kgf·cm, 43 ft·lbf)
M/T
Matchmarks
Q04136 Z16756
3. M/T:
INSTALL CLUTCH COVER SET BOLTS
(a) Align the matchmarks.
(b) Install the 6 bolts while turning the crankshaft to gain ac-
cess. Tighten the bolts evenly.
Torque: 19 N·m (195 kgf·cm, 14 ft·lbf)
(c) Install the service hole cover with the 2 bolts.
Torque: 12 N·m (120 kgf·cm, 9 ft·lbf)
1997 SUPRA (RM502U)
