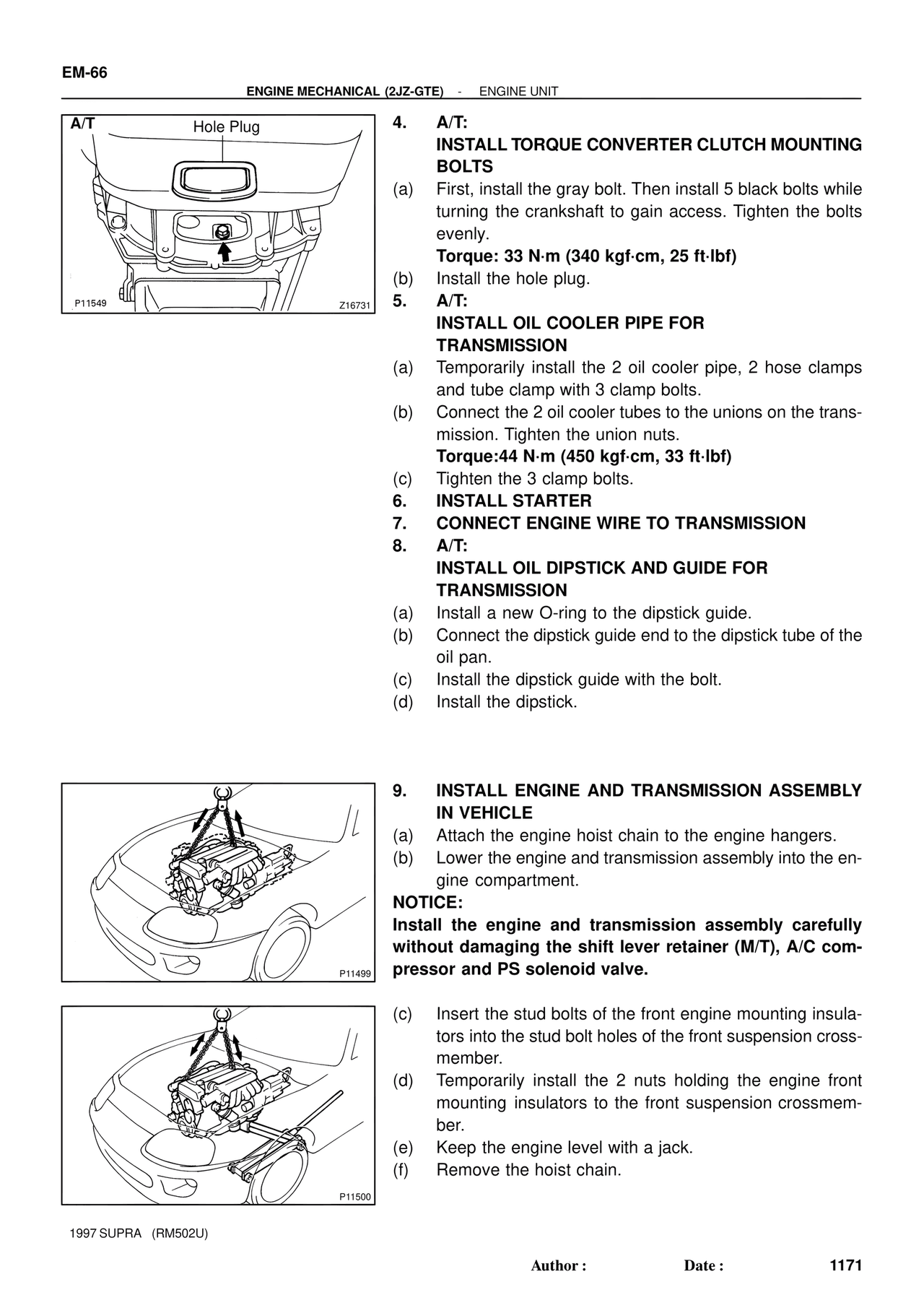

EM-66
ENGINE MECHANICAL (2JZ-GTE)  -  ENGINE UNIT

A/T        Hole Plug

P11549                                          Z16731

4.    A/T:
      INSTALL TORQUE CONVERTER CLUTCH MOUNTING
      BOLTS
(a)   First, install the gray bolt. Then install 5 black bolts while
      turning the crankshaft to gain access. Tighten the bolts
      evenly.
      Torque: 33 N·m (340 kgf·cm, 25 ft·lbf)
(b)   Install the hole plug.
5.    A/T:
      INSTALL OIL COOLER PIPE FOR
      TRANSMISSION
(a)   Temporarily install the 2 oil cooler pipe, 2 hose clamps
      and tube clamp with 3 clamp bolts.
(b)   Connect the 2 oil cooler tubes to the unions on the trans-
      mission. Tighten the union nuts.
      Torque:44 N·m (450 kgf·cm, 33 ft·lbf)
(c)   Tighten the 3 clamp bolts.
6.    INSTALL STARTER
7.    CONNECT ENGINE WIRE TO TRANSMISSION
8.    A/T:
      INSTALL OIL DIPSTICK AND GUIDE FOR
      TRANSMISSION
(a)   Install a new O-ring to the dipstick guide.
(b)   Connect the dipstick guide end to the dipstick tube of the
      oil pan.
(c)   Install the dipstick guide with the bolt.
(d)   Install the dipstick.

P11499

9.    INSTALL ENGINE AND TRANSMISSION ASSEMBLY
      IN VEHICLE
(a)   Attach the engine hoist chain to the engine hangers.
(b)   Lower the engine and transmission assembly into the en-
      gine compartment.
NOTICE:
Install the engine and transmission assembly carefully
without damaging the shift lever retainer (M/T), A/C com-
pressor and PS solenoid valve.

P11500

(c)   Insert the stud bolts of the front engine mounting insula-
      tors into the stud bolt holes of the front suspension cross-
      member.
(d)   Temporarily install the 2 nuts holding the engine front
      mounting insulators to the front suspension crossmem-
      ber.
(e)   Keep the engine level with a jack.
(f)   Remove the hoist chain.

1997 SUPRA  (RM502U)

Author :          Date :          1171
