EM-72
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER BLOCK
Connecting rod thickness:
25.898 - 25.950 mm (1.0196 - 1.0217 in.)

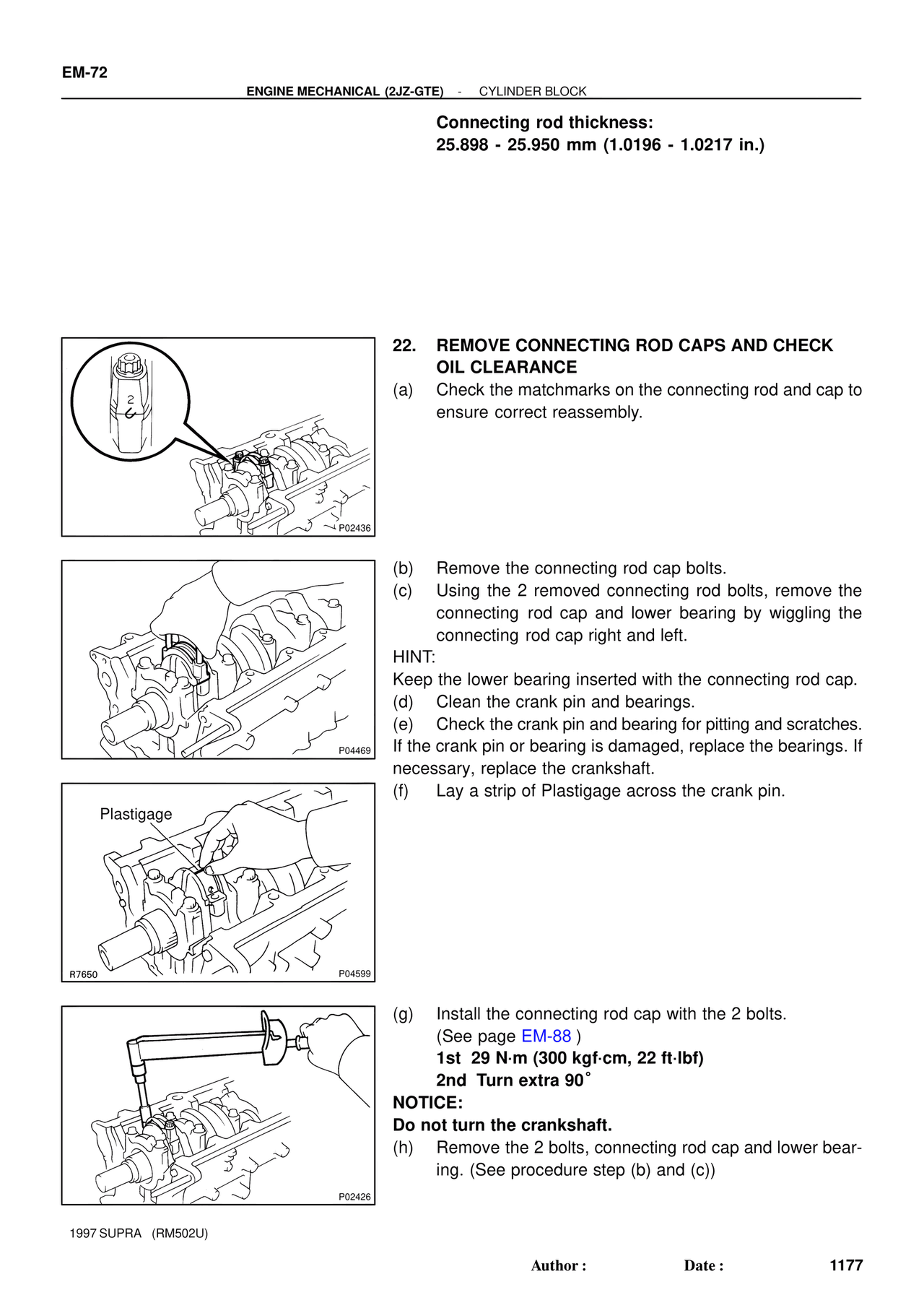

22. REMOVE CONNECTING ROD CAPS AND CHECK OIL CLEARANCE
(a) Check the matchmarks on the connecting rod and cap to ensure correct reassembly.
P02436
(b) Remove the connecting rod cap bolts.
(c) Using the 2 removed connecting rod bolts, remove the connecting rod cap and lower bearing by wiggling the connecting rod cap right and left.
HINT:
Keep the lower bearing inserted with the connecting rod cap.
(d) Clean the crank pin and bearings.
(e) Check the crank pin and bearing for pitting and scratches.
If the crank pin or bearing is damaged, replace the bearings. If necessary, replace the crankshaft.
(f) Lay a strip of Plastigage across the crank pin.
Plastigage
R7650 P04599
(g) Install the connecting rod cap with the 2 bolts.
(See page EM-88 )
1st 29 N·m (300 kgf·cm, 22 ft·lbf)
2nd Turn extra 90°
NOTICE:
Do not turn the crankshaft.
(h) Remove the 2 bolts, connecting rod cap and lower bearing. (See procedure step (b) and (c))
P02426
1997 SUPRA (RM502U)
Author : Date : 1177
