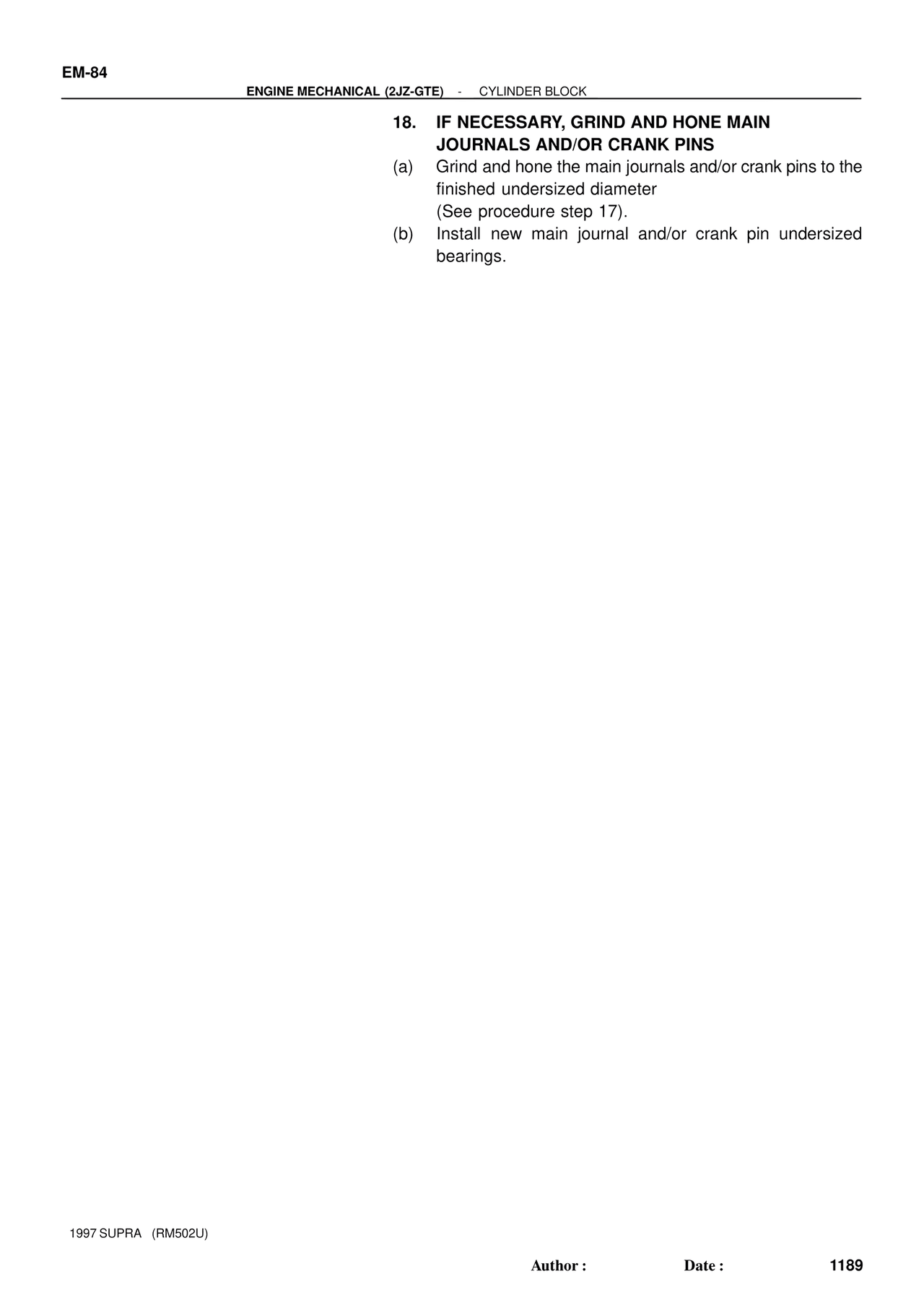

EMS/Engine Mechanical 1997 Supplement — If Necessary, Grind and Hone Main Journals AND/OR Crank Pins, page 56

56 / 126

If Necessary, Grind and Hone Main Journals AND/OR Crank Pins — MK4 Supra Engine Mechanical 1997 Supplement, page 56

100%

Page text (OCR transcript)

EM-84
ENGINE MECHANICAL (2JZ-GTE)  -  CYLINDER BLOCK

18.  IF NECESSARY, GRIND AND HONE MAIN
     JOURNALS AND/OR CRANK PINS
(a)  Grind and hone the main journals and/or crank pins to the
     finished undersized diameter
     (See procedure step 17).
(b)  Install new main journal and/or crank pin undersized
     bearings.

1997 SUPRA  (RM502U)

Author :          Date :          1189
