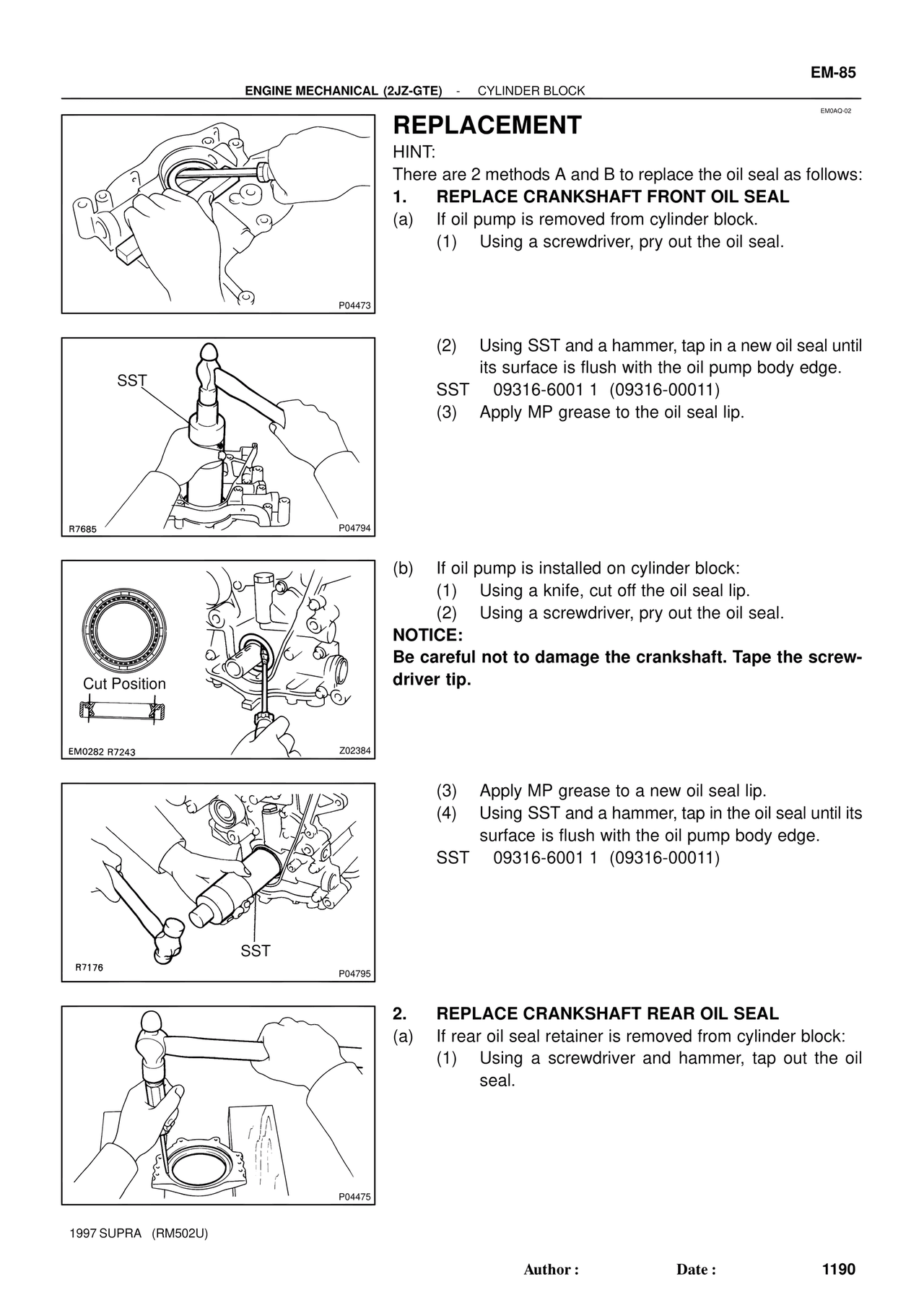

EM-85
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER BLOCK
EM0AQ-02
REPLACEMENT
HINT:
There are 2 methods A and B to replace the oil seal as follows:
1. REPLACE CRANKSHAFT FRONT OIL SEAL
(a) If oil pump is removed from cylinder block.
(1) Using a screwdriver, pry out the oil seal.
P04473
SST
(2) Using SST and a hammer, tap in a new oil seal until
its surface is flush with the oil pump body edge.
SST 09316-6001 1 (09316-00011)
(3) Apply MP grease to the oil seal lip.
R7685 P04794
Cut Position
(b) If oil pump is installed on cylinder block:
(1) Using a knife, cut off the oil seal lip.
(2) Using a screwdriver, pry out the oil seal.
NOTICE:
Be careful not to damage the crankshaft. Tape the screw-
driver tip.
EM0282 R7243 Z02384
(3) Apply MP grease to a new oil seal lip.
(4) Using SST and a hammer, tap in the oil seal until its
surface is flush with the oil pump body edge.
SST 09316-6001 1 (09316-00011)
R7176 SST P04795
2. REPLACE CRANKSHAFT REAR OIL SEAL
(a) If rear oil seal retainer is removed from cylinder block:
(1) Using a screwdriver and hammer, tap out the oil
seal.
P04475
1997 SUPRA (RM502U)
Author : Date : 1190
