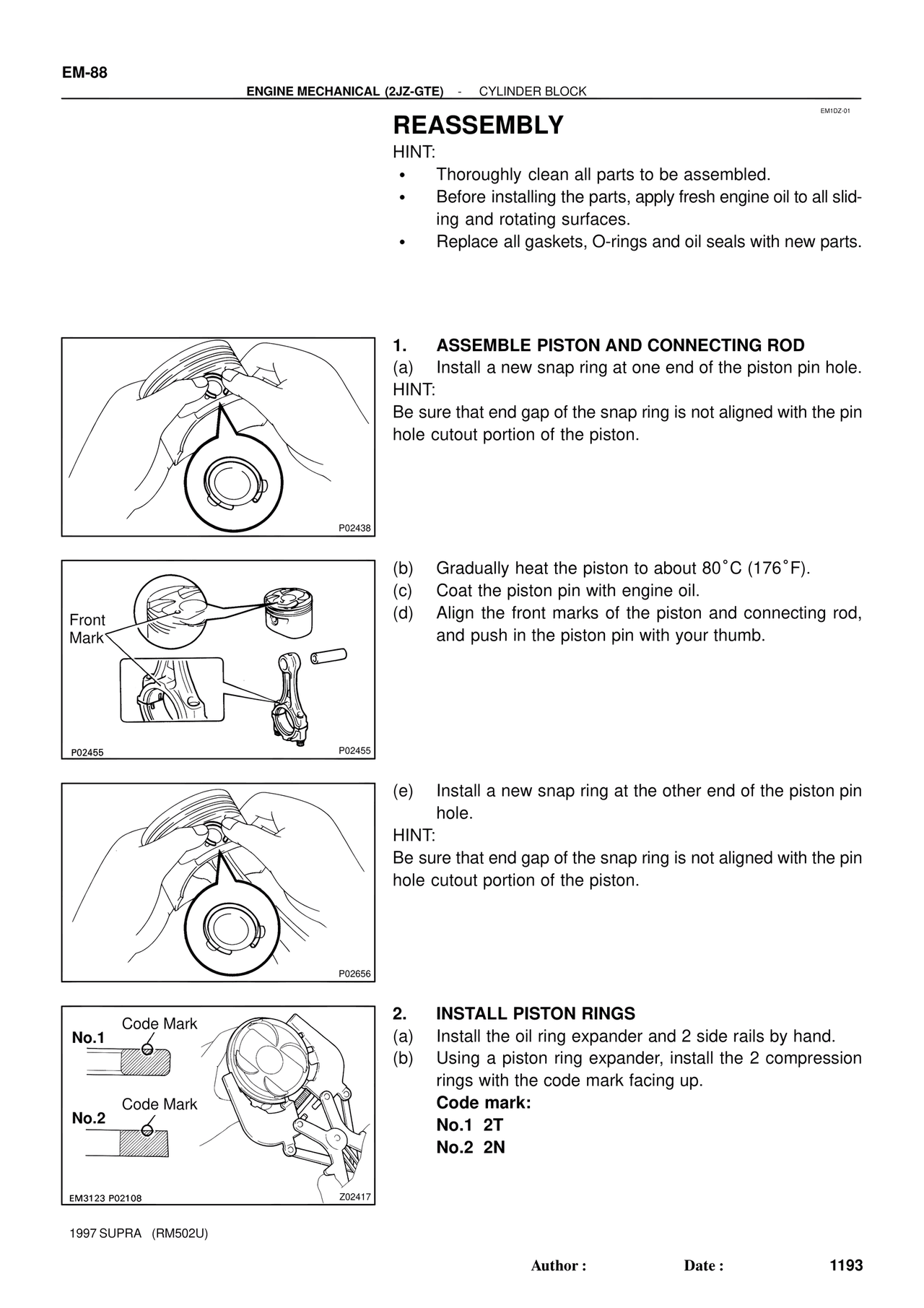

EM-88 ENGINE MECHANICAL (2JZ-GTE) - CYLINDER BLOCK EM1DZ-01 REASSEMBLY HINT: • Thoroughly clean all parts to be assembled. • Before installing the parts, apply fresh engine oil to all sliding and rotating surfaces. • Replace all gaskets, O-rings and oil seals with new parts. P02438 1. ASSEMBLE PISTON AND CONNECTING ROD (a) Install a new snap ring at one end of the piston pin hole. HINT: Be sure that end gap of the snap ring is not aligned with the pin hole cutout portion of the piston. Front Mark P02455 P02455 (b) Gradually heat the piston to about 80°C (176°F). (c) Coat the piston pin with engine oil. (d) Align the front marks of the piston and connecting rod, and push in the piston pin with your thumb. P02656 (e) Install a new snap ring at the other end of the piston pin hole. HINT: Be sure that end gap of the snap ring is not aligned with the pin hole cutout portion of the piston. No.1 Code Mark No.2 Code Mark EM3123 P02108 Z02417 2. INSTALL PISTON RINGS (a) Install the oil ring expander and 2 side rails by hand. (b) Using a piston ring expander, install the 2 compression rings with the code mark facing up. Code mark: No.1 2T No.2 2N 1997 SUPRA (RM502U) Author : Date : 1193
