EM-87
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER BLOCK
EM6535

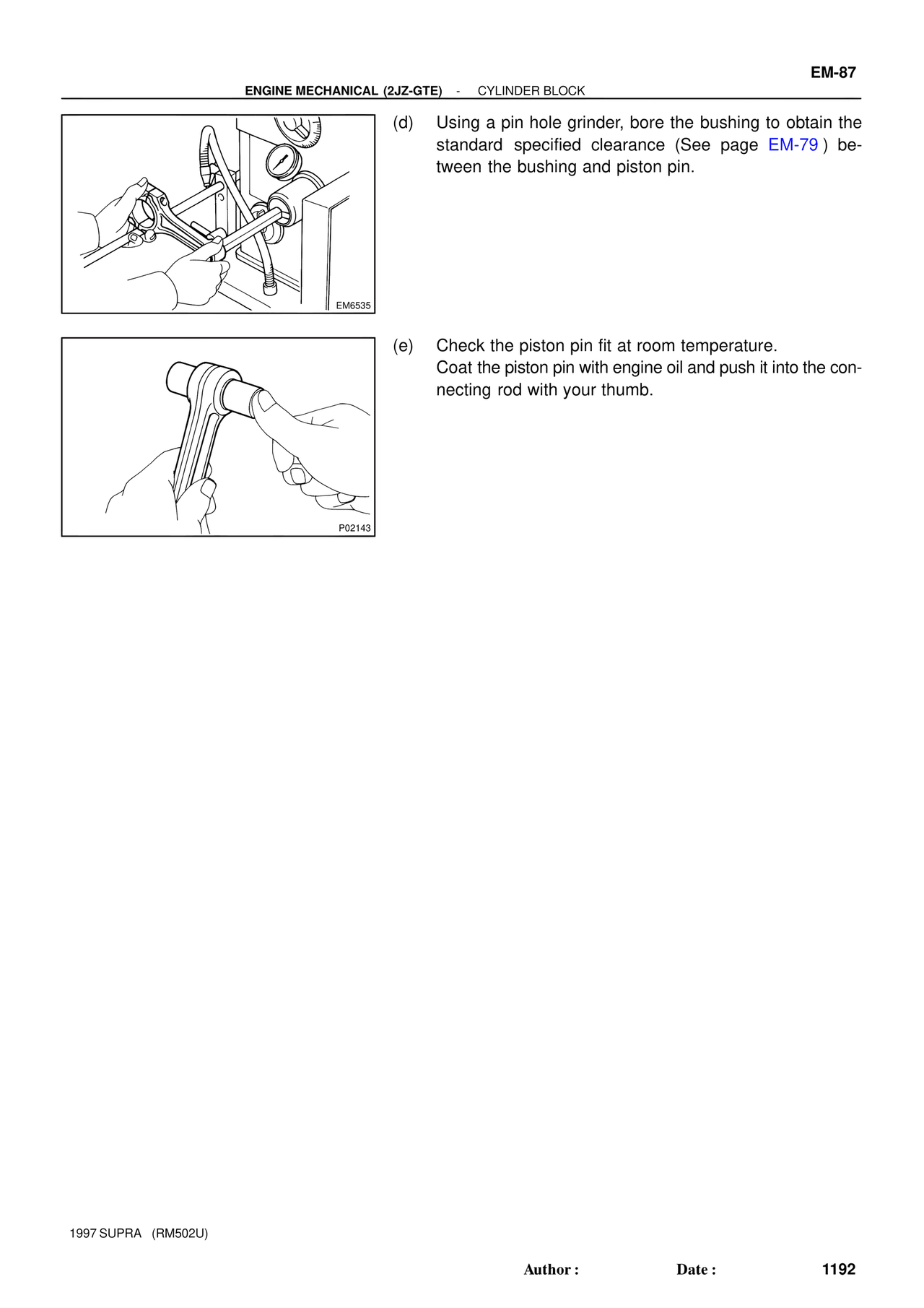

(d) Using a pin hole grinder, bore the bushing to obtain the standard specified clearance (See page EM-79 ) between the bushing and piston pin.
P02143
(e) Check the piston pin fit at room temperature.
Coat the piston pin with engine oil and push it into the connecting rod with your thumb.
1997 SUPRA (RM502U)
Author : Date : 1192
