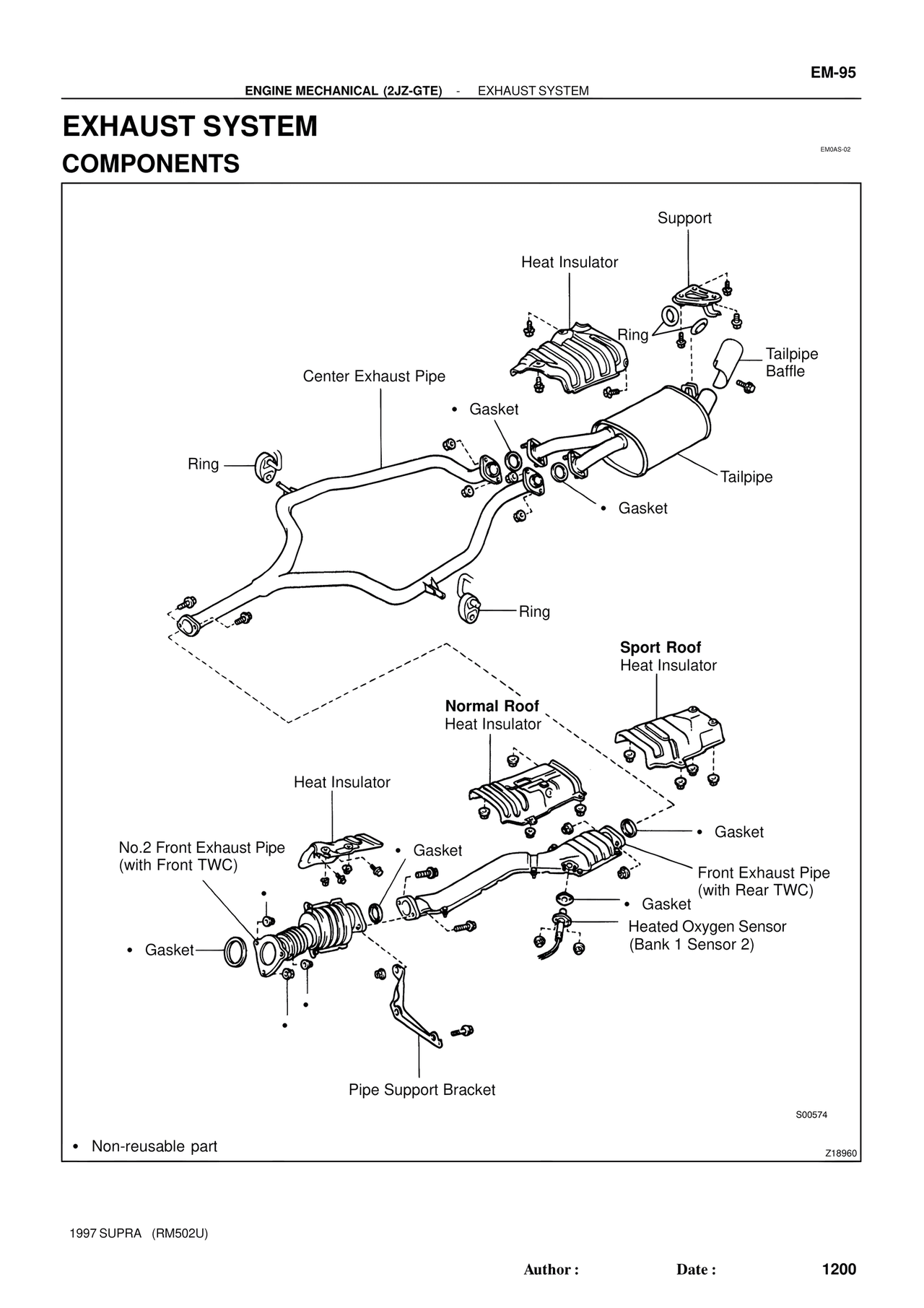

EXHAUST SYSTEM COMPONENTS — MK4 Supra Engine Mechanical 1997 Supplement, page 67
100%
EM-95 ENGINE MECHANICAL (2JZ-GTE) - EXHAUST SYSTEM EXHAUST SYSTEM COMPONENTS EM0AS-02 Support Heat Insulator Ring Tailpipe Baffle Center Exhaust Pipe • Gasket Ring Tailpipe • Gasket Ring Sport Roof Heat Insulator Normal Roof Heat Insulator Heat Insulator No.2 Front Exhaust Pipe (with Front TWC) • Gasket • Gasket Front Exhaust Pipe (with Rear TWC) • Gasket Heated Oxygen Sensor (Bank 1 Sensor 2) Pipe Support Bracket S00574 • Non-reusable part Z18960 1997 SUPRA (RM502U) Author : Date : 1200
