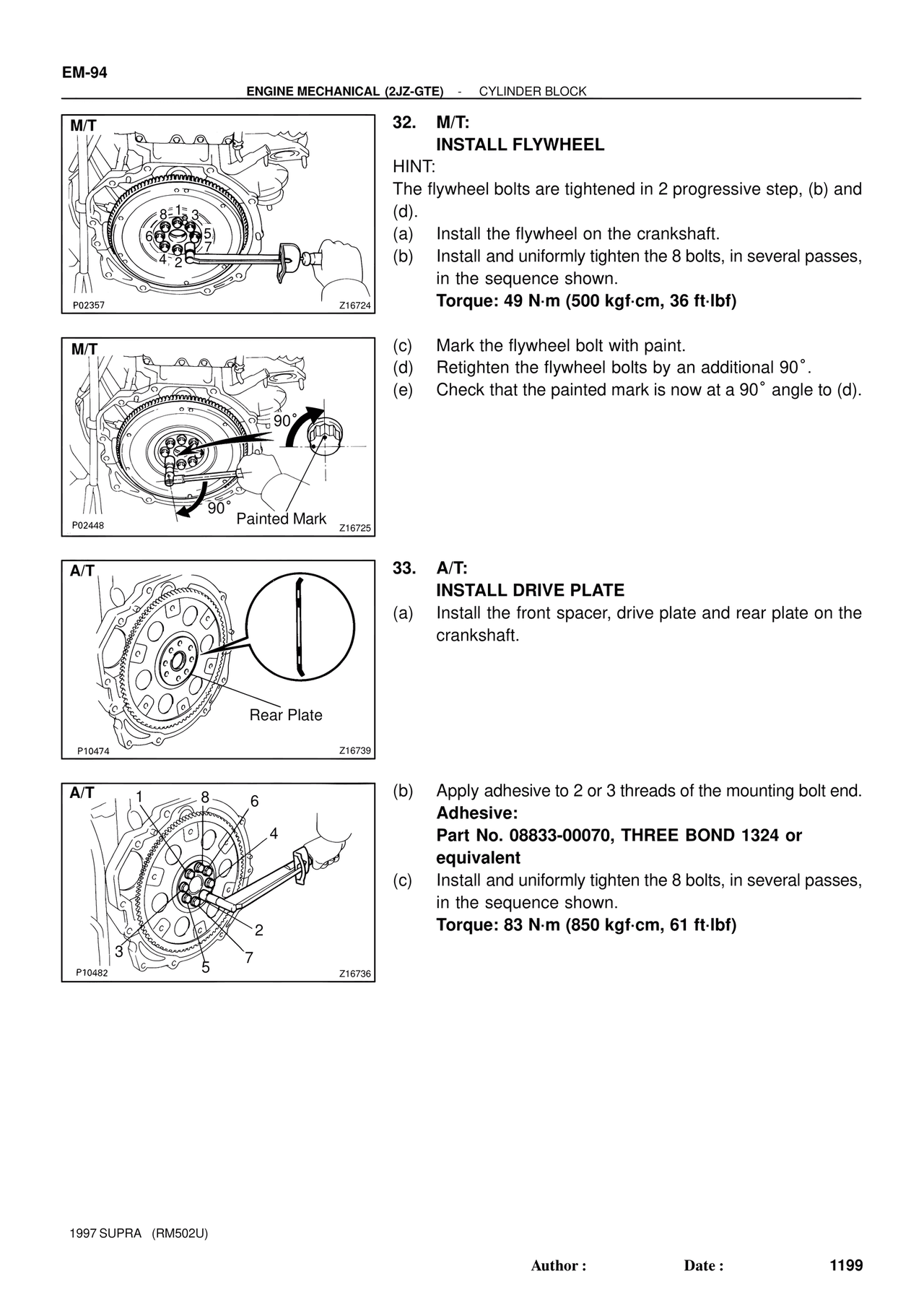

EMS/Engine Mechanical 1997 Supplement — Install Flywheel / Install Drive Plate, page 66

EM-94
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER BLOCK

M/T
P02357                                                Z16724

32.   M/T:
        INSTALL FLYWHEEL
HINT:
The flywheel bolts are tightened in 2 progressive step, (b) and
(d).
(a)    Install the flywheel on the crankshaft.
(b)    Install and uniformly tighten the 8 bolts, in several passes,
        in the sequence shown.
        Torque: 49 N·m (500 kgf·cm, 36 ft·lbf)

M/T
90°
90°
Painted Mark
P02448                                                Z16725

(c)    Mark the flywheel bolt with paint.
(d)    Retighten the flywheel bolts by an additional 90°.
(e)    Check that the painted mark is now at a 90° angle to (d).

A/T
Rear Plate
P10474                                                Z16739

33.   A/T:
        INSTALL DRIVE PLATE
(a)    Install the front spacer, drive plate and rear plate on the
        crankshaft.

A/T
1
8
6
4
2
3
5
7
P10482                                                Z16736

(b)    Apply adhesive to 2 or 3 threads of the mounting bolt end.
        Adhesive:
        Part No. 08833-00070, THREE BOND 1324 or
        equivalent
(c)    Install and uniformly tighten the 8 bolts, in several passes,
        in the sequence shown.
        Torque: 83 N·m (850 kgf·cm, 61 ft·lbf)

1997 SUPRA  (RM502U)

Author :          Date :          1199
