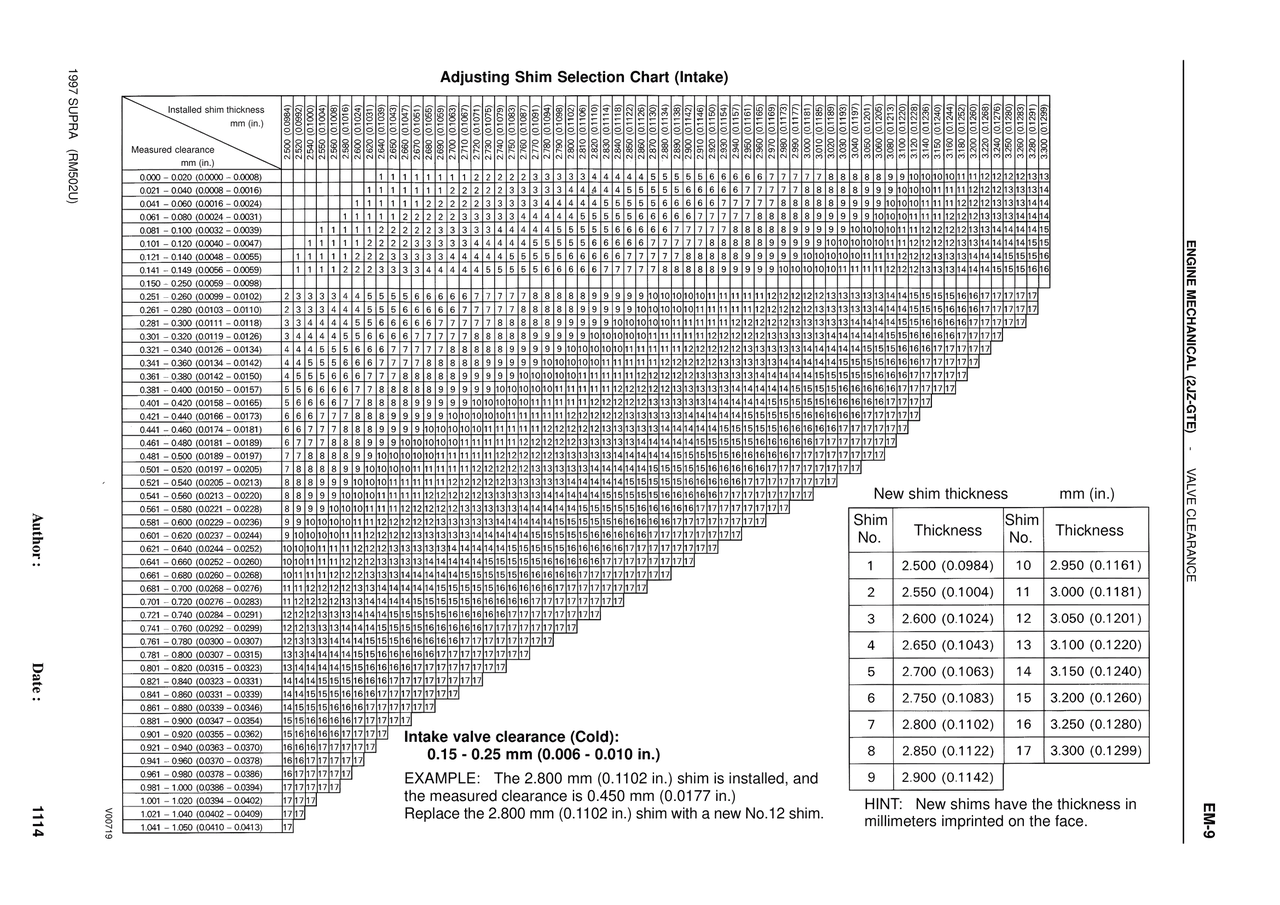

Adjusting Shim Selection Chart (Intake)

Installed shim thickness
mm (in.)

Measured clearance
mm (in.)

2.500 (0.0984)
2.540 (0.1000)
2.550 (0.1004)
2.560 (0.1008)
2.600 (0.1016)
2.610 (0.1028)
2.620 (0.1031)
2.650 (0.1043)
2.660 (0.1047)
2.670 (0.1051)
2.675 (0.1053)
2.680 (0.1055)
2.690 (0.1059)
2.700 (0.1063)
2.710 (0.1067)
2.720 (0.1071)
2.730 (0.1075)
2.740 (0.1079)
2.750 (0.1083)
2.760 (0.1087)
2.770 (0.1091)
2.780 (0.1095)
2.790 (0.1098)
2.800 (0.1102)
2.810 (0.1106)
2.820 (0.1110)
2.830 (0.1114)
2.840 (0.1118)
2.850 (0.1122)
2.860 (0.1126)
2.870 (0.1130)
2.880 (0.1134)
2.890 (0.1138)
2.900 (0.1142)
2.910 (0.1146)
2.920 (0.1150)
2.930 (0.1154)
2.940 (0.1157)
2.950 (0.1161)
2.960 (0.1165)
2.970 (0.1169)
2.975 (0.1171)
2.980 (0.1173)
2.990 (0.1177)
3.000 (0.1181)
3.010 (0.1185)
3.020 (0.1189)
3.030 (0.1193)
3.040 (0.1197)
3.050 (0.1201)
3.060 (0.1205)
3.070 (0.1209)
3.080 (0.1213)
3.090 (0.1217)
3.100 (0.1220)
3.110 (0.1224)
3.120 (0.1228)
3.130 (0.1232)
3.140 (0.1236)
3.150 (0.1240)
3.160 (0.1244)
3.170 (0.1248)
3.180 (0.1252)
3.190 (0.1256)
3.200 (0.1260)
3.210 (0.1264)
3.220 (0.1268)
3.230 (0.1272)
3.240 (0.1276)
3.250 (0.1280)
3.260 (0.1283)
3.270 (0.1287)
3.280 (0.1291)
3.290 (0.1295)
3.300 (0.1299)

0.000 – 0.020 (0.0000 – 0.0008)
0.021 – 0.040 (0.0008 – 0.0016)
0.041 – 0.060 (0.0016 – 0.0024)
0.061 – 0.080 (0.0024 – 0.0031)
0.081 – 0.100 (0.0032 – 0.0039)
0.101 – 0.120 (0.0040 – 0.0047)
0.121 – 0.140 (0.0048 – 0.0055)
0.141 – 0.149 (0.0056 – 0.0059)
0.150 – 0.250 (0.0059 – 0.0098)
0.251 – 0.260 (0.0099 – 0.0102)
0.261 – 0.280 (0.0103 – 0.0110)
0.281 – 0.300 (0.0111 – 0.0118)
0.301 – 0.320 (0.0119 – 0.0126)
0.321 – 0.340 (0.0126 – 0.0134)
0.341 – 0.360 (0.0134 – 0.0142)
0.361 – 0.380 (0.0142 – 0.0150)
0.381 – 0.400 (0.0150 – 0.0157)
0.401 – 0.420 (0.0158 – 0.0165)
0.421 – 0.440 (0.0166 – 0.0173)
0.441 – 0.460 (0.0174 – 0.0181)
0.461 – 0.480 (0.0181 – 0.0189)
0.481 – 0.500 (0.0189 – 0.0197)
0.501 – 0.520 (0.0197 – 0.0205)
0.521 – 0.540 (0.0205 – 0.0213)
0.541 – 0.560 (0.0213 – 0.0220)
0.561 – 0.580 (0.0221 – 0.0228)
0.581 – 0.600 (0.0229 – 0.0236)
0.601 – 0.620 (0.0237 – 0.0244)
0.621 – 0.640 (0.0244 – 0.0252)
0.641 – 0.660 (0.0252 – 0.0260)
0.661 – 0.680 (0.0260 – 0.0268)
0.681 – 0.700 (0.0268 – 0.0276)
0.701 – 0.720 (0.0276 – 0.0283)
0.721 – 0.740 (0.0284 – 0.0291)
0.741 – 0.760 (0.0292 – 0.0299)
0.761 – 0.780 (0.0300 – 0.0307)
0.781 – 0.800 (0.0307 – 0.0315)
0.801 – 0.820 (0.0315 – 0.0323)
0.821 – 0.840 (0.0323 – 0.0331)
0.841 – 0.860 (0.0331 – 0.0339)
0.861 – 0.880 (0.0339 – 0.0346)
0.881 – 0.900 (0.0347 – 0.0354)
0.901 – 0.920 (0.0355 – 0.0362)
0.921 – 0.940 (0.0363 – 0.0370)
0.941 – 0.960 (0.0370 – 0.0378)
0.961 – 0.980 (0.0378 – 0.0386)
0.981 – 1.000 (0.0386 – 0.0394)
1.001 – 1.020 (0.0394 – 0.0402)
1.021 – 1.040 (0.0402 – 0.0409)
1.041 – 1.050 (0.0410 – 0.0413)

New shim thickness     mm (in.)

Shim No.   Thickness          Shim No.   Thickness
1          2.500 (0.0984)     10         2.950 (0.1161)
2          2.550 (0.1004)     11         3.000 (0.1181)
3          2.600 (0.1024)     12         3.050 (0.1201)
4          2.650 (0.1043)     13         3.100 (0.1220)
5          2.700 (0.1063)     14         3.150 (0.1240)
6          2.750 (0.1083)     15         3.200 (0.1260)
7          2.800 (0.1102)     16         3.250 (0.1280)
8          2.850 (0.1122)     17         3.300 (0.1299)
9          2.900 (0.1142)

Intake valve clearance (Cold):
0.15 – 0.25 mm (0.006 – 0.010 in.)

EXAMPLE:  The 2.800 mm (0.1102 in.) shim is installed, and
the measured clearance is 0.450 mm (0.0177 in.)
Replace the 2.800 mm (0.1102 in.) shim with a new No.12 shim.

HINT:  New shims have the thickness in
millimeters imprinted on the face.
