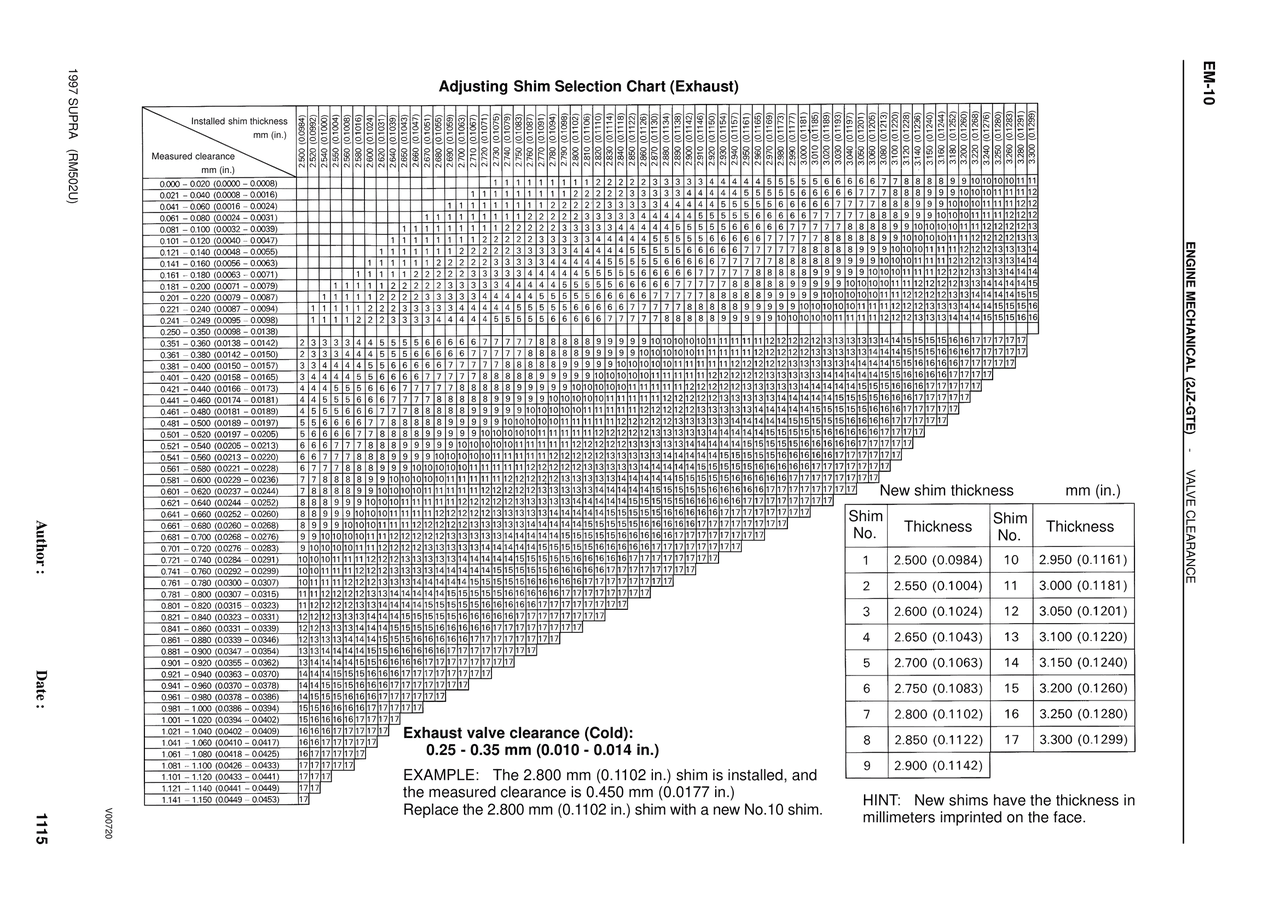

Adjusting Shim Selection Chart (Exhaust)

Installed shim thickness
mm (in.)

2.500 (0.0984)
2.550 (0.1004)
2.600 (0.1024)
2.650 (0.1043)
2.700 (0.1063)
2.750 (0.1083)
2.800 (0.1102)
2.850 (0.1122)
2.900 (0.1142)
2.950 (0.1161)
3.000 (0.1181)
3.050 (0.1201)
3.100 (0.1220)
3.150 (0.1240)
3.200 (0.1260)
3.250 (0.1280)
3.300 (0.1299)

Measured clearance
mm (in.)

0.000 – 0.020 (0.0000 – 0.0008)
0.021 – 0.040 (0.0008 – 0.0016)
0.041 – 0.060 (0.0016 – 0.0024)
0.061 – 0.080 (0.0024 – 0.0031)
0.081 – 0.100 (0.0032 – 0.0039)
0.101 – 0.120 (0.0040 – 0.0047)
0.121 – 0.140 (0.0048 – 0.0055)
0.141 – 0.160 (0.0056 – 0.0063)
0.161 – 0.180 (0.0063 – 0.0071)
0.181 – 0.200 (0.0071 – 0.0079)
0.201 – 0.220 (0.0079 – 0.0087)
0.221 – 0.240 (0.0087 – 0.0094)
0.241 – 0.249 (0.0095 – 0.0098)
0.250 – 0.350 (0.0098 – 0.0138)
0.351 – 0.360 (0.0138 – 0.0142)
0.361 – 0.380 (0.0142 – 0.0150)
0.381 – 0.400 (0.0150 – 0.0157)
0.401 – 0.420 (0.0158 – 0.0165)
0.421 – 0.440 (0.0166 – 0.0173)
0.441 – 0.460 (0.0174 – 0.0181)
0.461 – 0.480 (0.0181 – 0.0189)
0.481 – 0.500 (0.0189 – 0.0197)
0.501 – 0.520 (0.0197 – 0.0205)
0.521 – 0.540 (0.0205 – 0.0213)
0.541 – 0.560 (0.0213 – 0.0220)
0.561 – 0.580 (0.0221 – 0.0228)
0.581 – 0.600 (0.0229 – 0.0236)
0.601 – 0.620 (0.0237 – 0.0244)
0.621 – 0.640 (0.0244 – 0.0252)
0.641 – 0.660 (0.0252 – 0.0260)
0.661 – 0.680 (0.0260 – 0.0268)
0.681 – 0.700 (0.0268 – 0.0276)
0.701 – 0.720 (0.0276 – 0.0283)
0.721 – 0.740 (0.0284 – 0.0291)
0.741 – 0.760 (0.0292 – 0.0299)
0.761 – 0.780 (0.0300 – 0.0307)
0.781 – 0.800 (0.0307 – 0.0315)
0.801 – 0.820 (0.0315 – 0.0323)
0.821 – 0.840 (0.0323 – 0.0331)
0.841 – 0.860 (0.0331 – 0.0339)
0.861 – 0.880 (0.0339 – 0.0346)
0.881 – 0.900 (0.0347 – 0.0354)
0.901 – 0.920 (0.0355 – 0.0362)
0.921 – 0.940 (0.0363 – 0.0370)
0.941 – 0.960 (0.0370 – 0.0378)
0.961 – 0.980 (0.0378 – 0.0386)
0.981 – 1.000 (0.0387 – 0.0394)
1.001 – 1.020 (0.0394 – 0.0402)
1.021 – 1.040 (0.0402 – 0.0409)
1.041 – 1.060 (0.0410 – 0.0417)
1.061 – 1.080 (0.0418 – 0.0425)
1.081 – 1.100 (0.0426 – 0.0433)
1.101 – 1.120 (0.0433 – 0.0441)
1.121 – 1.140 (0.0441 – 0.0449)
1.141 – 1.150 (0.0449 – 0.0453)

Exhaust valve clearance (Cold):
0.25 - 0.35 mm (0.010 - 0.014 in.)

EXAMPLE: The 2.800 mm (0.1102 in.) shim is installed, and the measured clearance is 0.450 mm (0.0177 in.)
Replace the 2.800 mm (0.1102 in.) shim with a new No.10 shim.

New shim thickness     mm (in.)

Shim No.     Thickness          Shim No.     Thickness
1            2.500 (0.0984)     10           2.950 (0.1161)
2            2.550 (0.1004)     11           3.000 (0.1181)
3            2.600 (0.1024)     12           3.050 (0.1201)
4            2.650 (0.1043)     13           3.100 (0.1220)
5            2.700 (0.1063)     14           3.150 (0.1240)
6            2.750 (0.1083)     15           3.200 (0.1260)
7            2.800 (0.1102)     16           3.250 (0.1280)
8            2.850 (0.1122)     17           3.300 (0.1299)
9            2.900 (0.1142)

HINT: New shims have the thickness in millimeters imprinted on the face.
